Dalian Dayoushang Group has launched a high-precision positioning system application solution based on ST and Trina Smart Control products
Date：August 29, 2025 Views：10
Source: WPG Author: WPG
On April 17, 2025, WPG Holdings, a leading international semiconductor component distributor dedicated to the Asia-Pacific market, announced that its subsidiary, Youshang, has launched a high-precision positioning system application solution based on stmicroelectronics' STA8135 GNSS chip and Trina Smart Control's TH1100 module.
Illustration 1- Display board diagram of the high-precision positioning system application solution based on ST and Trina Smart Control products by Dalian Dayoushang
In recent years, with the vigorous development of multiple fields such as unmanned aerial vehicles, surveying and mapping, autonomous driving of agricultural machinery, driving test and training, and intelligent lawn mowers, the demand for GNSS (Global Navigation Satellite System) in the market has been constantly rising. Against this background, Daliang Dayoushang has launched a high-precision positioning system application solution based on the ST STA8135 chip and Trina Smart Control TH1100 module, aiming to meet the growing demand for high-precision positioning and help various industries achieve intelligent upgrades.
Illustration 2- Scene application diagram of the high-precision positioning system application solution based on ST and Trina Smart Control products by Dalian Dayoushang
STA8135 is ST's new generation of three-frequency high-precision positioning chip, supporting multi-constellation and multi-frequency band signal reception, with centimeter-level positioning capability. Combined with TRW's RTK (Real-time Dynamic Positioning) algorithm, it can better meet the high-precision positioning demands of various application markets.Trina Intelligent Control focuses on the research and development and production of key components for intelligent connected vehicles, and has accumulated rich technical and engineering experience in the field of high-precision navigation and positioning. Through its independently developed system architecture, core algorithms and hardware design, the company has launched a series of high-precision positioning products, including high-precision positioning modules, integrated navigation modules, positioning terminals (VPNS), high-performance inertial components (MEMS-IMU), and vehicle-mounted satellite navigation antennas, etc. The TH1100 module applied in this solution is based on the STA8135 chip, supporting the simultaneous reception of three-frequency signals (L1+L2+L5) from multiple constellations including GPS, GLONASS, Galileo, BDS and QZSS, and achieving centimeter-level positioning accuracy through an external RTK algorithm. In addition, the TH1110 module is equipped with an inbuilt inertial measurement unit (IMU), which has the ability to calculate the track. Even in weak satellite signal or no signal environment, it can continuously provide accurate positioning information by integrating IMU data, GNSS measurements, vehicle speed information and dynamic models.

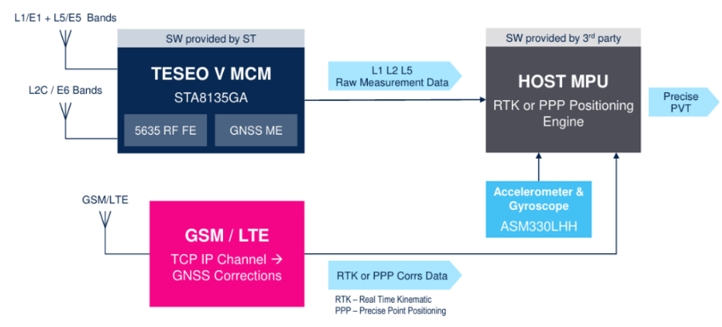

Figure 3- A block diagram of the high-precision positioning system application solution based on ST and Trina Smart Control products by Dalian Dayoushang
The technical advantages of TRW Intelligent Control make up for the shortcomings of the ST STA8135 GNSS chip in the RTK algorithm, enabling this solution to be widely applied in fields such as unmanned aerial vehicles, agricultural machinery, and intelligent devices, providing them with high-precision positioning support. This enables them to maintain excellent positioning performance in complex environments, thereby significantly improving operational efficiency.Core technological advantages:
The frequency bands can be switched by configuring the firmware: L1+L2/L1+L5/L1+L2+L5;
Supports two intelligent driving application scenarios: "heavy perception/light map" and "high-precision map RTK".
Support RTK and PP-RTK;
Trina can provide external dual-frequency RTK, triple-frequency RTK algorithms and inertial navigation algorithms.
Support PVT/Raw Data output;
Trina provides customized GNSS antenna and module adaptation solutions.
Support E6 frequency band and HAS services;
Support national standards.
Scheme Specification:
Dimensions: 17.0mm×22.0mm×3.1mm
Operating temperature: -40℃ to 105℃
Storage temperature: -40℃ to 105℃
Packaging: 54-pin LGA
Receiving frequency band:
GPS (L1C /A, L2C, L5)
GLONASS (L1OF, L2OF);
BeiDou (B1C, B1I, B2a, B2I);
GALILEO (E1, E5a, E5b, E6)
QZSS (L1C /A, L2C, L5);
NAVIC-former IRNSS (L5).
Function: Three-frequency GNSS navigation and positioning module;
Default constellations: GPS+Galileo+BDS+GLONASS;
Horizontal positioning accuracy: <1.2m;
RTK algorithm SDK (external) : Supports in conjunction with an external SOC.
Speed accuracy: <0.1m/s without assistance;
1PPS accuracy: 20ns
TTFF (AGNSS Closure) :
Cold start: 35 seconds
Warm start: 30 seconds
Hot start: 1.5 seconds.
Sensitivity
Capture: -147 DBM
Tracking: -160 DBM
Recapture: -153 DBM.
Interface: UARTx1, default 460800bps;
Time pulse signal frequency: 1Hz
Protocol: NMEA0183, RTCM
Antenna type: Active antenna
Voltage range: 1.7V to 3.6V, typical value 3.3V;
Standby voltage: 1.7V to 3.6V, typical value 3.3V;
Power consumption: 260mA@3.3V;
Quality and reliability: Produced in accordance with the IATF 16949:2016 standard.
Regarding WPG Holdings:
WPG Holdings is an internationally leading semiconductor component distributor dedicated to the Asia-Pacific market. Founded in 2005, it is celebrating its 20th anniversary this year. Its headquarters is located in Taipei. It owns Shiping, Pinjia, Quanta and Youshang, with approximately 5,000 employees. It represents over 250 product suppliers and has 69 service locations worldwide. The turnover in 2024 reached NT $880.55 billion. WPG has established an industrial holding platform, focusing on international operation scale and local flexibility. It has long been deeply engaged in the Asia-Pacific market, with the vision of being "the preferred choice for industries and the benchmark for distribution channels". It fully implements the core values of "teamwork, integrity, professionalism, and efficiency", and has been awarded the "Global Distributor Excellence Award" for 24 consecutive years. At the same time, it is continuously committed to strengthening ESG sustainable development. It has received international recognition for three consecutive years and has been honored with an A-level MSCI ESG rating. Facing the new manufacturing trend, WumUN is committed to transforming into a Data-Driven enterprise, establishing an online digital platform - "Dada Network", and advocating the intelligent Logistics Service (LaaS, Logistics as a Service) model to assist customers in jointly facing the challenges of intelligent manufacturing. Starting from good intentions, WPG builds trust through technology, and takes "Co-creating partner value and achieving the future" as its corporate mission. It hopes to jointly build a competitive and cooperative ecosystem with industry "Allies".
