On March 4, 2025, the international leading semiconductor component distributor committed to the Asia-Pacific market, DDA Holding, announced that its World Ping launched the NXP S32K144 MCU, NCJ29D5 chip, KW38 wireless control chip. Supported by core source systems (MPS), TDK, Molex and other products as peripheral components of the automotive UWB Digital Key Kit application solution.

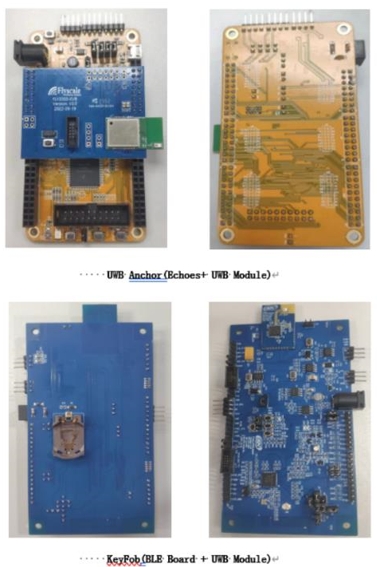

The S32K144 Board is based on the S32K144, NXP's high-performance MCU designed for automotive and general-purpose embedded applications. The MCU is based on Arm? Cortex? The M0+/ M4F core features a DSP instruction set and a single-precision floating-point number processing unit (FPU) that runs up to 112MHz and integrates 2MB Flash and 256KB SRAM. In addition, to support developer applications, NXP offers a free software development integration environment, S32DS for Arm, as well as a graphical configuration tool that integrates Processor Expert and a Software development Kit (SDK) for easy setup of peripheral underlying drivers (LLD).
BLE_KW38 Board adopts NXP KW38 wireless control chip, which integrates BLE wireless communication function and is equipped with 48MHz Arm? Cortex? -M0+ core, 256KB programmable flash memory and 256KB FlexNVM with ECC functionality for enhanced data reliability. At the same time, the 8KB FlexRAM supports EEPROM emulation, providing flexible storage options. The on-chip 64KB SRAM is also integrated to further meet the memory needs of various applications. In addition, the chip supports the BLE 5.0 standard with low power consumption, high performance and reliable wireless connectivity.
IDH Feitu baseboard &UWB Module adopts NXP NCJ29D5 chip, which integrates Arm? Cortex? -M33 processor core and Arm? TrustZone Security technology. This is a full-feature single-chip pulsed radio Ultra-Wideband (IR-UWB) low-power transceiver IC that adheres to the IEEE 802.15.4 HRP UWB PHY and IEEE 802.15.4z BPRF/HPRF UWB PHY standards. Designed for safe ranging applications in automotive environments, it is able to achieve ranging accuracy of up to 10 cm. In terms of data transfer rates, the chip supports rates of up to 6.8Mbps (in BPRF mode) and 7.8Mbps (in HPRF mode). In addition, NCJ29D5 also has built-in dedicated MAC firmware, which greatly simplifies the UWB ranging setup process and session control operations.
The WPI UWB Module also uses NXP NCJ29D5 chip, and the PCB board size is 28mm×18mm (4-layer board).
Core technical advantages:
Center frequency from 5GHz to 8.0GHz, bandwidth up to 500MHz;
Accurate positioning, centimeter-level positioning can be achieved;
It is insensitive to channel fading and has strong multipath resolution.
It can prevent trunk attacks and encrypt location data.
Support body multi-anchor positioning, GUI can display real-time positioning.
Project specification:
Comply with IEEE 802.15.4Z HRP UWB PHY standard;
Supports center frequencies from 6.5GHz to 8.0GHz (AES-128 and AES-256);

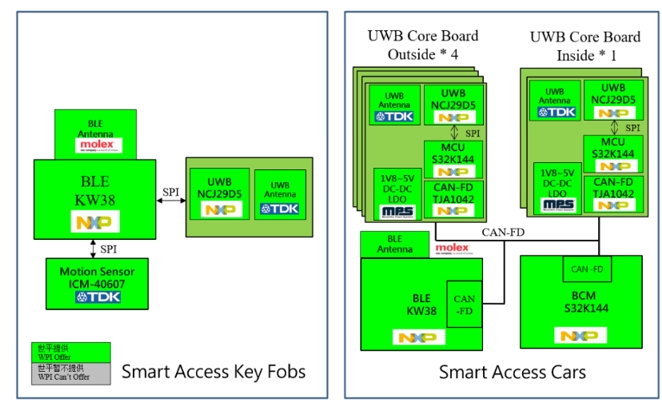

Multi-anchor positioning scheme (BLE+UWB);
NXP NCJ29D5 Supply voltage 1.8V~3.6V;
Integrated Arm on UWB Chip? Cortex? -M33 32-bit processor 55.2MHz, 256kByte non-volatile memory, 40kByte RAM, 96kByte ROM, Arm? TrustZone technology and S-DMA security, SPI, UART and LIN compatible interfaces.
About Lianda Holdings:
Founded in 2005 and celebrating its 20th anniversary this year, the company is a leading international distributor of semiconductor components in the Asia Pacific region. Headquartered in Taipei, it owns Shiping, Pinka, Quan Ding and Yousun, employs about 5,000 people, represents more than 250 product suppliers, and has 69 service locations worldwide. In 2024, the turnover reached NT $880.61 billion (self-financing). The company creates an industrial holding platform, focuses on international operation scale and local flexibility, and cultivates the Asia-Pacific market for a long time. With the vision of "industry's first choice?? Channel benchmark", the company fully carries out the core values of "team, integrity, professionalism and efficiency", has won the "Global Distributor Excellence Award" for 24 consecutive years, and continues to strengthen the sustainable development of ESG. Won international recognition for 2 consecutive years, MSCI ESG rating A award. In the face of new manufacturing trends, DDA is committed to transforming into a Data-Driven enterprise, establishing an online digital platform - "DDA", and advocating the intelligent Logistics as a Service (LaaS) model to help customers jointly face the challenges of intelligent manufacturing. Starting from good intentions, building trust with science and technology, and taking "creating partner value?? To achieve the future" as the corporate purpose, we look forward to building a large competitive and cooperative ecosystem with the industry "Labang and Pai".
