ChipSourceTek-TC4158 is a mono digital audio amplifier chip designed for audio systems. Chipsourcetek-tc4158 has demonstrated excellent performance in the field of audio amplification with its unique anti-distortion function, ultra-low EMI characteristics and no filter design. This paper will deeply analyze the technical characteristics, application fields and working principles of ChipSourceTek-TC4158, in order to provide readers with a comprehensive and detailed understanding.

### I、Detailed explanation of technical characteristics

####1 . Anti-distortion function

    The ChipSourceTek-TC4158 incorporates a unique anti-distortion technology that monitors the distortion of the output signal in real time and dynamically adjusts the system gain accordingly. This design not only effectively avoids the potential damage of overload output to the speaker, but also ensures that the audio signal is pure and natural, bringing a more comfortable hearing experience to the user. In practical application, the user can flexibly set the working mode of the amplifier through software or hardware, that is, switch freely between the anti-distortion mode and the ordinary mode. The software control depends on the pulse signal, while the hardware control is realized by the level signal, which greatly enhances the flexibility and convenience of the application.

#### 2. Ultra-low EMI with no filter required

    The ChipSourceTek-TC4158 uses an advanced PWM modulation structure and built-in feedback resistance to greatly reduce EMI interference over the full bandwidth range, thereby minimizing the impact on other electronic components. This feature enables TC4158 to maintain a stable working state in a complex and changeable electronic environment. In addition, its output does not require additional filters, which not only reduces the number of external components, but also saves PCB area and reduces system costs.

#### 3. High efficiency and multiple protection functions

    In terms of efficiency, the ChipSourceTek-TC4158 is capable of delivering up to 5W of output power to a 2Ω load at an operating voltage of 5V with an efficiency of more than 90%. This high efficiency makes the TC4158 particularly suitable for low voltage, high power output audio systems. At the same time, the TC4158 also has built-in overcurrent protection, overheat protection and undervoltage protection functions, which can respond in time when the chip encounters abnormal working conditions, effectively prevent chip damage, and improve the reliability and stability of the system.

### Ⅱ、Application areas and typical application circuits

    ChipSourceTek-TC4158 has been widely used in a variety of audio devices due to its excellent performance characteristics. Including but not limited to USB 2.1 audio, card 2.1 audio, mobile 2.1 audio, box and ordinary card audio. These application scenarios fully demonstrate the TC4158's ability to deliver high-quality audio output.

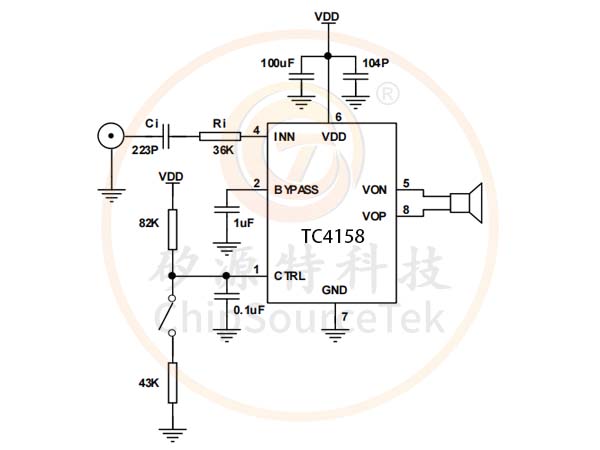

    In a typical application circuit, the input end of the TC4158 is connected to an audio signal source, and the output end is connected to a horn or speaker. Through reasonable circuit design and component selection, TC4158 can maintain stable working state under various load conditions and output high quality audio signal. In addition, users can adjust the parameters in the circuit according to the actual needs to optimize the audio effect.

### Ⅲ、Pin diagram and pin description

    ChipSourceTek-TC4158 is packaged in SOP-8 format, and its pin diagram and pin description are as follows:

    - Pin 1: VDD (power supply positive)
    - Pin 2: OUT (output)
    - Pin 3: GND (negative power supply)
    - Pin 4: MODE (Working mode select pin, can be controlled by software or hardware)
    - Pin 5: NC (empty)
    - Pin 6: FB (Feedback pin to adjust output gain)
    - Pin 7: PWM (pulse width modulation input pin)
    - Pin 8: EN (Enable pin, used to control the on-off state of the chip)

    Each pin bears a specific function, and the user should pay special attention to the correct connection and configuration of the pin when designing and debugging the circuit.

### Ⅳ、Block diagram and working principle

    The block diagram of the ChipSourceTek-TC4158 shows the main components of its internal circuits and their connections to each other. These components include input amplifiers, PWM modulators, power amplifiers, protection circuits, and feedback networks.

    In terms of working principle, when the audio signal is input to the TC4158, it is first amplified and preprocessed by the input amplifier. A PWM modulator then converts the analog audio signal into a pulse-width modulated signal, which is amplified by a power amplifier to drive a horn or speaker to sound. At the same time, the protection circuit monitors the working state of the chip in real time, and takes timely measures to protect the chip from damage when encountering abnormal conditions. The feedback network is used to adjust the output gain to ensure the accuracy and stability of the audio signal.

### Ⅳ、Summary and prospect

    In summary, ChipSourceTek-TC4158 as a high-performance mono digital audio amplifier chip, with its unique anti-distortion function, ultra-low EMI characteristics and no filter design, has shown excellent performance in the field of audio amplification. Its wide range of applications, flexible control methods and efficient and stable operating conditions make the TC4158 an ideal choice for audio system design. In the future, with the continuous development of audio technology and the increasing diversification of consumer needs, SItech will continue to be committed to technological innovation and product upgrades to provide users with more high-quality and efficient audio solutions.
