3PEAK (stock code: 688536), a supplier of high-performance analog and digital-analog hybrid products, introduces the automotive high-edge power switch TPS42S40Q. Integrated MOS power FETs and charge pumps are designed for intelligent control of resistive, inductive and capacitive loads. It can be widely used in automotive domain control, ADAS, power system, camera, transmission, air conditioning, cabin and other fields.
TPS42S40Q product advantages
High precision current detection
The TPS42S40Q provides excellent current detection accuracy. For loads 1A and above, the detection accuracy is 3%, as shown in Figure 1; For 50mA and above loads, the detection accuracy is 7%, as shown in Figure 2. Precise current sensing enables easy identification of load status and measurement of load current.
Figure 1. Current detection accuracy when the load is 1A
The TPS42S40Q provides very precise current limiting at Vs=13.5V. When the current limiting threshold is set at 0.5A, the limiting accuracy can reach ±20% in the whole temperature range. When the current limiting threshold is set at 1.6A, the limiting accuracy is ±14% in the whole temperature range, as shown in Figure 3.
Low on-resistance
The nominal on-resistance value of the TPS42S40Q is 100mΩ, which is negatively correlated with the supply voltage and positively correlated with the temperature. This means that under the same operating conditions, the lower the temperature and the higher the supply voltage, the lower the on-resistance, as shown in Figure 4.
The TPS42S40Q has excellent dynamic response performance under the operating conditions of VS=13.5V, IOUT=4A, CS=300ohm, IN OFF. After the input is turned off, the slope of the turn-off process is matched, and the slope is controlled at ±0.15V/μs, and the output voltage and current reach the steady state at 80μs to complete the turn-off. As shown in Figure 5.
IOUT=4A
CS=300ohm
IN OFF

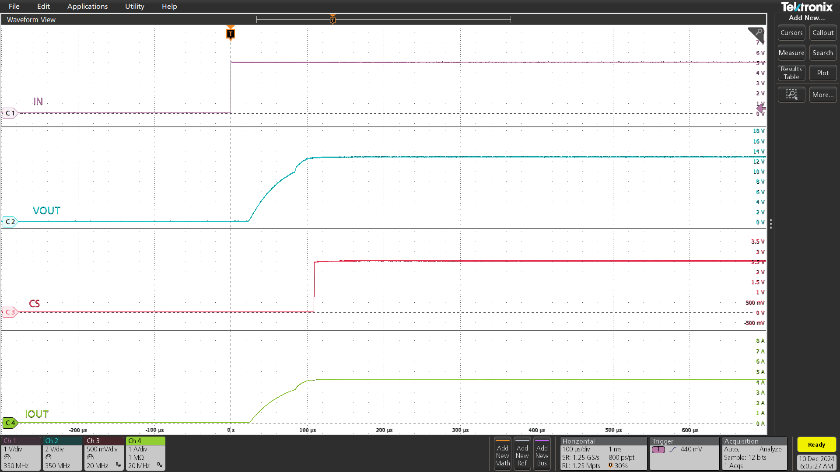

Under the operating conditions of VS=13.5V, IOUT=4A, CS=300ohm IN start-up, the TPS42S40Q performs slope matching after input startup, and controls the slope at ±0.15V/μs, and the output voltage and current reach a steady state at 110μs to achieve stable output. As shown in Figure 6.
IOUT=4A
CS=300ohm
IN start-up
Under the operating conditions of VS=13.5V, IOUT=4A, CS=300ohm IN start-up, the TPS42S40Q performs slope matching after input startup, and controls the slope at ±0.15V/μs, and the output voltage and current reach a steady state at 110μs to achieve stable output. As shown in Figure 6.
IOUT=1~4A
TPS42S40Q Product features
Wide operating voltage range: 4V ~ 40V
Ultra-low standby current: less than 0.5µA
Wide operating temperature range: -40°C to 150°C
Version A: Open leakage state output
Version B: Current sensing analog output
Input control: Compatible with 3.3V and 5V logic
High precision current induction: the accuracy is ±3% when the current is 1A
Programmable current limit: achieved with an external resistor, accuracy of ±20% at 500mA
Comprehensive fault diagnosis: open and short circuit diagnosis, over current and ground diagnosis, over temperature diagnosis
Multiple protection features: overload and short circuit protection, inductive load negative voltage clamp, undervoltage lock (UVLO) protection, ground failure protection and power loss protection, overtemperature protection, output short-circuit battery protection
Typical application of TPS42S40Q
The TPS42S40Q drives resistive, inductive and capacitive loads for intelligent control. The precise current detection and programmable current limiting characteristics make the TPS42S40Q a wide range of applications.
