As a powerful 4-bit microcontroller, ChipSourceTek-CST4081A has demonstrated its wide application potential and unique performance advantages in many fields. This article will introduce the main features, working principles, application scenarios, and related design considerations of ChipSourceTek-CST4081A in detail, aiming to provide a comprehensive technical reference for developers.

### Overview of key features

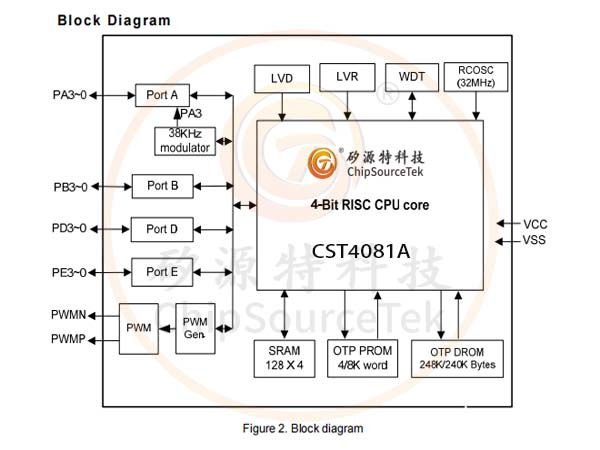

The ChipSourceTek-CST4081A series microcontrollers integrate a wealth of features, including 4-channel melody playback or 4-channel ADPCM audio output, as well as PWM direct drive circuits. Its PWM resolution of up to 8/10/12 bits can meet a variety of precision control requirements. The chip uses a low-power, high-performance CMOS microprocessor core with a clock rate of 4.096/8.192(±3%)MHz and a wide operating voltage range from 1.5V to 5.5V, allowing it to operate stably under a variety of power conditions.

In terms of memory configuration, ChipSourceTek-CST4081A provides 4K/8K word program ROM and 248K/240K byte data ROM, which is enough to accommodate complex control logic and audio data. In addition, it is equipped with 128 4-bit working SRAM and 2 4-bit user registers, providing users with ample data storage space.

### Functional details analysis

#### I/O ports and Interrupt Management

The ChipSourceTek-CST4081A is equipped with 16 software-programmable I/O ports (ports A, B, D, E), which can be defined as input or output bit by bit, providing great flexibility. In particular, the PA3 port is also equipped with a 38KHz modulator for specific applications such as infrared communications. In terms of interrupt management, the chip supports an internal interrupt source, PWM interrupt, and the Watchdog timer (WDT) function, which has a WDT period of 0.128 seconds and can be enabled or disabled by option, effectively improving the stability and reliability of the system.

#### Power management and reset mechanism

ChipSourceTek-CST4081A supports multiple system RESET sources, including low voltage reset, power reset, external reset pin (PB3 low level active), and watchdog timer overflow reset, ensuring rapid system recovery in abnormal conditions. In addition, the chip also has the power off mode wake-up function, when ports A, B, D, E detect the wake up signal, can wake up from HALT mode to NORMAL mode, and execute the corresponding wake up subroutine, effectively reducing power consumption.

#### Audio and PWM control

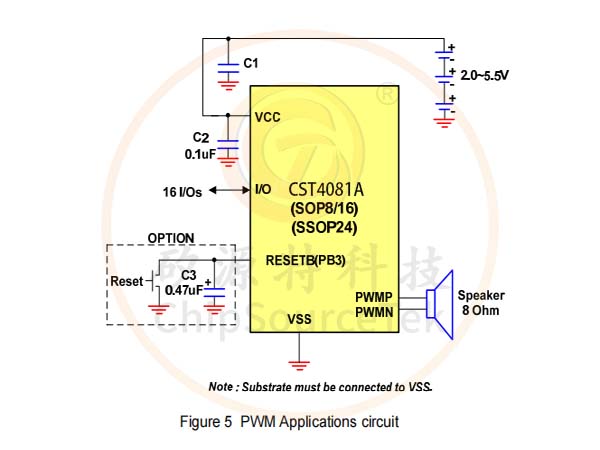

In terms of audio output, ChipSourceTek-CST4081A supports PWM mode and the resolution can be 8/10/12 bits, which is suitable for a variety of audio application scenarios. The design of PWM direct drive circuit simplifies the design complexity of audio output circuit and improves the quality and stability of audio output.

### Application scenario discussion

ChipSourceTek-CST4081A is widely used in various electronic products with its powerful features and flexible configuration. For example, in the field of toys, its 4-channel melody play function can enrich the interaction and fun of toys; In smart home products, through PWM control, you can realize the accurate adjustment of LED lights, motors and other equipment; In portable audio devices, its low power consumption and h

### Design considerations with packaging options

When designing ChipSourcetek-CST4081a-based circuits, developers need to consider the following aspects:

1. ** Power management ** : Select the appropriate power supply voltage range according to the application scenario, and reasonably design the power circuit to ensure the stable operation of the chip.

2. ** Clock circuit ** : Select the appropriate oscillator to meet the operating frequency requirements of the chip, and pay attention to the stability and accuracy of the clock signal.

3. ** Reset circuit ** : Design a reliable reset circuit to ensure that the system can be correctly reset under various abnormal conditions.

4. **I/O Port configuration ** : Reasonably configure I/O ports according to the specific application requirements, and pay attention to the electrical characteristics and protection measures of the ports.

5. ** Audio output design ** : In the audio output circuit, it is necessary to choose the appropriate filter, amplifier and other components to improve the quality of the audio output.

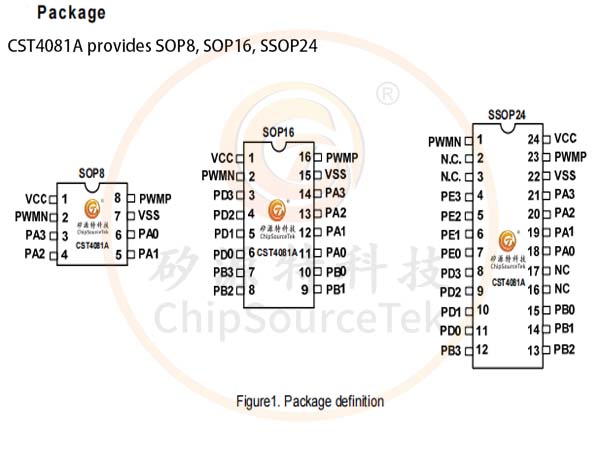

In terms of packaging, ChipSourceTek-CST4081A provides SOP8, SOP16, SSOP24 and other packaging forms, and developers can choose the appropriate package type according to the board layout and space constraints.

### Conclusion

ChipSourceTek-CST4081A, as a feature-rich, high-performance 4-bit microcontroller, has shown its wide application prospects in many fields. By gaining a deeper understanding of its main features, working principles, and design considerations, developers can make better use of this chip to design more efficient, stable, and reliable electronic products. With the continuous progress of technology and the continuous expansion of application fields, ChipSourceTek-CST4081A will play a more important role in future electronic products.
