TR16F064A(B)

    The TxP16ETM is a high-performance 16-bit MCU operating at up to 32MHz with 64K FLASH and 4K SRAM for high-performance processing of audio algorithms, power control and motor control. It is a new generation computing kernel of Flash DSP series. It was originally targeted at controllers and multimedia digital signal processing (DSP) applications to demonstrate its expertise. The TxP16E provides a fast MAC architecture that allows multiply + add instructions to be issued simultaneously to the access memory in one cycle. The TR16F064 is equipped with TxP16E and integrated input/output ports, audio PWM, timer and low voltage reset... Let's wait. Built-in high-speed 10-bit ADC for easy use in AC power and motor control applications.

TR16F064A(B) General Description:
    The TxP16ETM is a high-performance 16-bit MCU operating at up to 32MHz with 64K FLASH and 4K SRAM for high-performance processing of audio algorithms, power control and motor control. It is a new generation computing kernel of Flash DSP series. It was originally targeted at controllers and multimedia digital signal processing (DSP) applications to demonstrate its expertise. The TxP16E provides a fast MAC architecture that allows multiply + add instructions to be issued simultaneously to the access memory in one cycle. The TR16F064 is equipped with TxP16E and integrated input/output ports, audio PWM, timer and low voltage reset... Let's wait. Built-in high-speed 10-bit ADC for easy use in AC power and motor control applications.
    In addition, the TR16F064 extends its ability to connect external devices such as serial ROM/Flash. Internal memory capacity includes 64Kx16 program/data FLASH and 4Kx16 working SRAM.

TR16F064A(B) Features:
High performance RISC TxP16E CPU
* Wide operating frequency, voltage 1Mhz~32mhz@1.8volt~5.5 volts
* Operating frequency can be programmed by software
* Built-in 4096x16 SRAM
* Mixed instruction and data memory shared with 64Kx16 flash ROM
* Embedded PC stack level 24
Rich DSP functions
 * Hardware ring buffer support
*MAC computing power: up to 32MIPS
* Multi-function support: In MAC computing, two operands in memory are accessed simultaneously in one cycle
* Extended dynamic range: a 40-bit accumulator that ensures no overflow in 512 consecutive + addition operations
Embedded flash 64Kx16
* Typical 100000 (TR16F064A) /20000 (TR16F164B) erase/programming cycle
* Data retention period of more than 10 years
Software-based audio processing technology
  * Subband, ADPCM, CELP, melody synthesis, up to 20 channels (Max)
Supports 20+2 (ICE PAD can be used as I/O) universal I/O port, which can be configured to open leaky output
Stereo 8-16 bit PWM adjustable
15 IRQ and 1 NMI
*NMI is an unmasked interrupt that can interrupt IRQ immediately
*2 External interrupt
4The bit SPI master hardware supports DMA transfers
SPI Slaver
Green mode
Timer1, Timer2 with pre-scale
Low power instruction
24 hours/day real time clock
ICE supports data RAM monitors for motor control debugging
Support spread spectrum timing to reduce EMI.
CPU array
Watchdog Timer (WDT)
Low pressure reset (LVR)
Low Voltage Difference Regulator (LDO) Power supply 3.3V/1.8v@20ma (voltage drop 0.1v)
PB0, PB1, PB2, and PB3 support two edge modes: rising edge trigger and falling edge trigger for the wake function.
comparator
ADC 10-bit /285 kbps (@ACQT=4*TAD) /8 channels
Temperature sensor
microphone
1402 Interface

TR16F064A(B) Applications:
MCU application
Electronic dictionary
Handheld game
E-learning Assistance (ELA)
Digital photo frame
Electronic storybook
Power/motor control

TR16F064A(B) Block diagram:

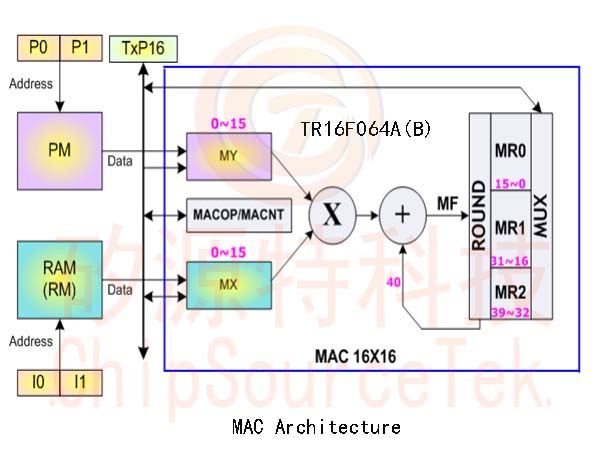

TR16F064A(B) MAC (16-bit X 16-bit multiplier and accumulator) :
    A 16-bit x 16-bit MAC is provided for digital signal processing. The core of the MAC operation is to multiply the complement operands of MX and MY by 2 and accumulate the previous 40-bit MF, then round off to store the result in the 40-bit Mr Register. The basic MAC architecture is shown in the figure.

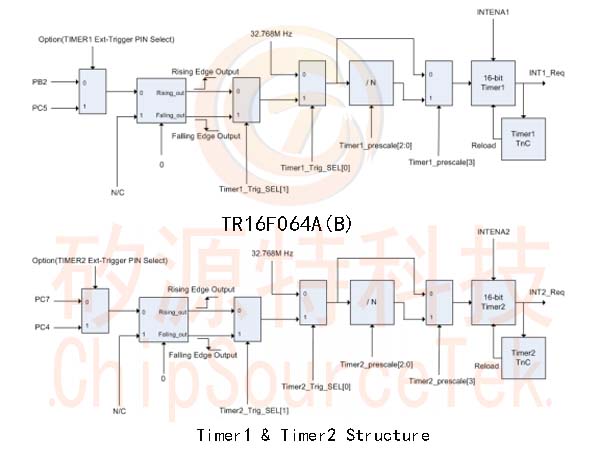

TR16F064A(B) Timer 1 and Timer 2 Structure:

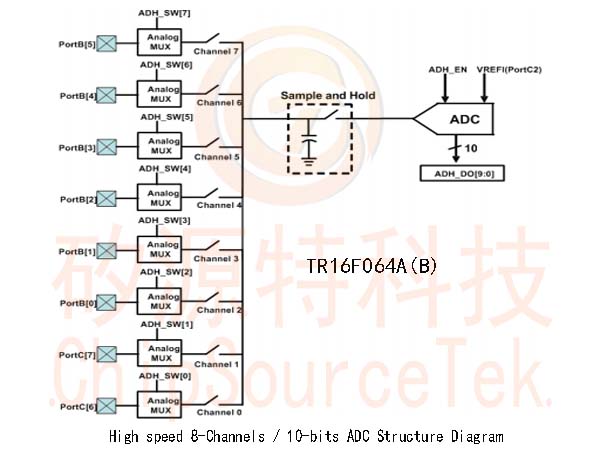

TR16F064A(B) High-speed 8-channel / 10-bit ADC structure diagram:

Note: If you need a more precise ADC application, you can use PortC2 as a Voltage Reference Input (VREFI) ADC. Independent voltage reference input pins can improve the accuracy of the ADC.
Note: Optionally enable the ADC verf input with PortC2 as the ADC voltage reference input (VREFI) instead of the I/O pin.
** Decoupling capacitors (10uF) must be as close to VCC and VSS as possible.

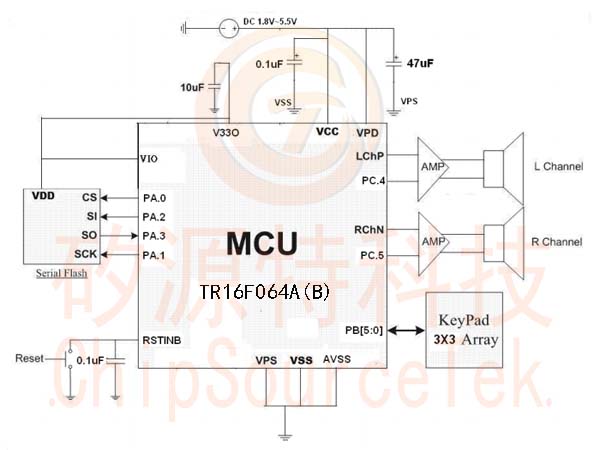

TR16F064A(B) Application Circuit:

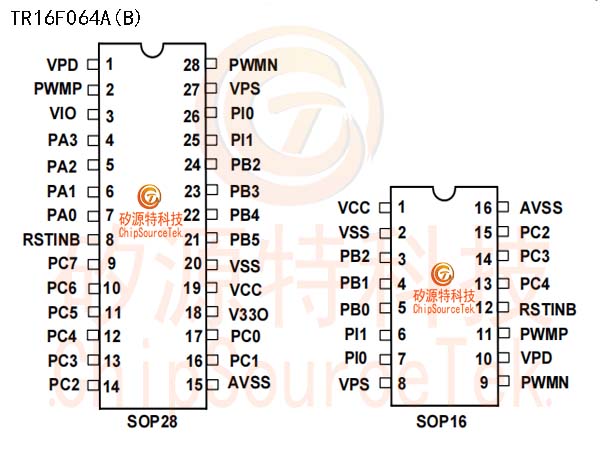

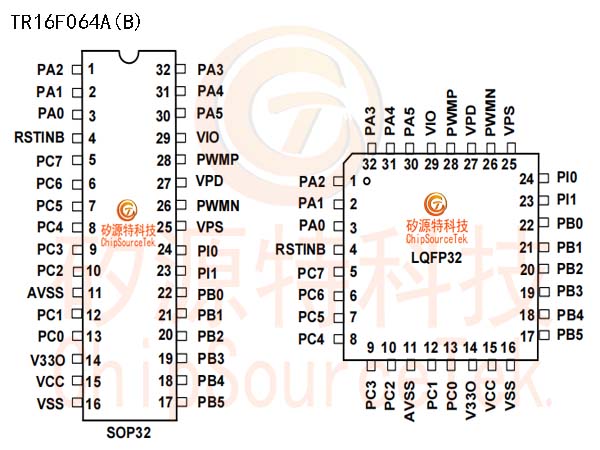

TR16F064A(B) Package: SOP28 / SOP32 / SOP16 / LQFP32:
