TR16F801A/B

    The TxP16ETM is a high-performance 16-bit MCU operating at up to 32MHz with 64K FLASH and 4K SRAM for high-performance processing of audio algorithms, power control and motor control. It is a new generation computing kernel of Flash DSP series. It was originally targeted at controllers and multimedia digital signal processing (DSP) applications to demonstrate its expertise. The TxP16E provides a fast MAC architecture that allows multiply + add instructions to be issued simultaneously to the access memory in one cycle. The TR16F801 is equipped with TxP16E and integrated I/O ports, audio PWM, timer and low voltage reset... Let's wait. Built-in high-speed 10-bit ADC for easy use in AC power and motor control applications.

TR16F801A/B General Description:
    The TxP16ETM is a high-performance 16-bit MCU operating at up to 32MHz with 64K FLASH and 4K SRAM for high-performance processing of audio algorithms, power control and motor control. It is a new generation computing kernel of Flash DSP series. It was originally targeted at controllers and multimedia digital signal processing (DSP) applications to demonstrate its expertise. The TxP16E provides a fast MAC architecture that allows multiply + add instructions to be issued simultaneously to the access memory in one cycle. The TR16F801 is equipped with TxP16E and integrated I/O ports, audio PWM, timer and low voltage reset... Let's wait. Built-in high-speed 10-bit ADC for easy use in AC power and motor control applications.
    In addition, the TR16F801 extended its ability to connect external devices, such as serial ROM/Flash. Internal memory capacity includes 64Kx16 program/data FLASH and 4Kx16 working SRAM.

TR16F801A/B Features:
* High-performance RISC TxP16E CPU
- Wide operating frequency, voltage 1Mhz~32mhz@1.8volt~5.5 volts
- The operating frequency can be programmed by software
- Built-in 4096x16 SRAM
- Mixed instruction and data memory shared with 64Kx16 flash ROM
- Embedded PC stack level 24
* Rich DSP features
- Hardware ring buffer support
-MAC Computing capability: up to 32MIPS
- Multi-function support: In MAC computing, access two operands in memory at the same time in one cycle
- Extended dynamic range: a 40-bit accumulator that ensures no overflow in 512 consecutive + addition operations
* Embedded flash 64Kx16
- Typical 100000 (TR16F801A) /20000 (TR16F8 01B) erase/programming cycle
- Data retention period of more than 10 years
* Software-based audio processing technology
- Sub-band, ADPCM, CELP, melody synthesis, up to 20 channels (Max)
* Supports 20+2 (ICE PAD can be used as I/O) universal I/O port, can be configured to open leakage output
* Stereo 8-16 bit PWM adjustable
*15 IRQ and 1 NMI
-NMI is an unmasked interrupt that interrupts IRQ immediately
-2 External interruption
* UART (Application Programming) for IAP
* 4-bit SPI main hardware supports DMA transmission
*SPI device
* Green mode
*Timer1, Timer2 with pre-scale
* Low power command
*24 hours/day real-time clock
*ICE supports data RAM monitors for motor control debugging
* Support spread spectrum timing to reduce EMI.
*CPU array
*I2C interface
* Watchdog Timer (WDT)
* Low Voltage reset (LVR)
* Low Voltage Difference Regulator (LDO) Power supply 3.3V/1.8v@20ma (voltage drop 0.1v)
*PB0, PB1, PB2, and PB3 support two edge modes: rising edge trigger and falling edge trigger for wake-up function.
comparator
*ADC 10-bit /285 kbps (@ACQT=4*TAD) /8 channels
* Temperature sensor
* Microphone
*IR Applications
* Motor PWM (2 channel) control
*1402 port

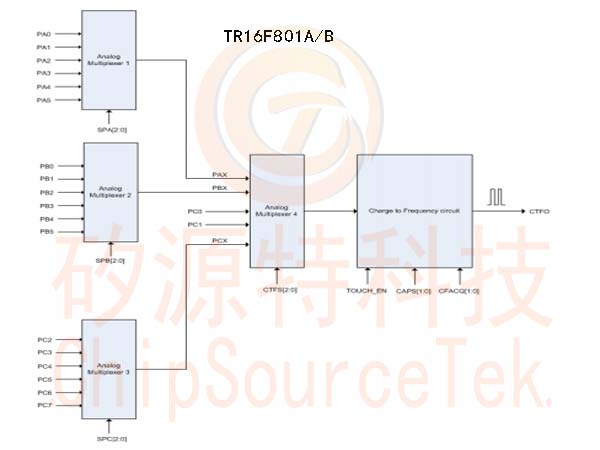

* Anti-noise touch key detection circuit

TR16F801A/B Application Field:
  MCU Application
  Electronic Dictionary
  Handheld Games
  Electronic Learning Aid (ELA)
  Digital Photo Frame
  Electronics storybook
  Power / motor control

TR16F801A/B block diagram:

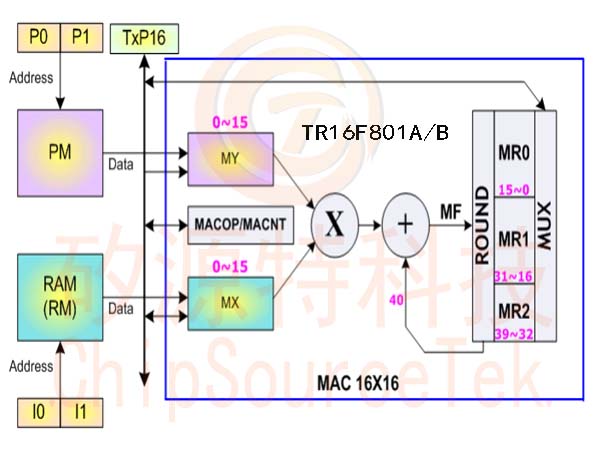

TR16F801A/B MAC Architecture:

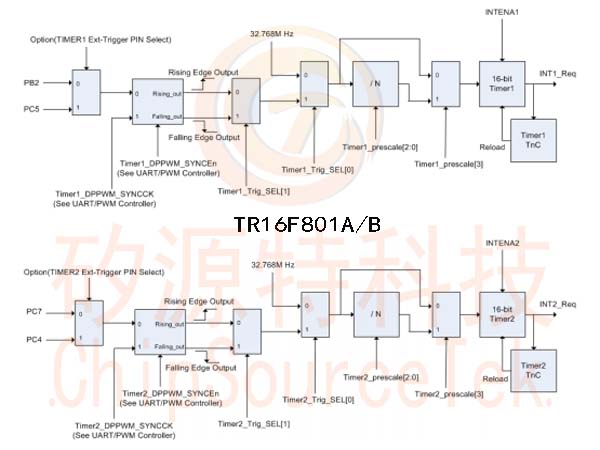

TR16F801A/B Timer_DPPWM_SYNCCK (see UART/PWM Controller) :

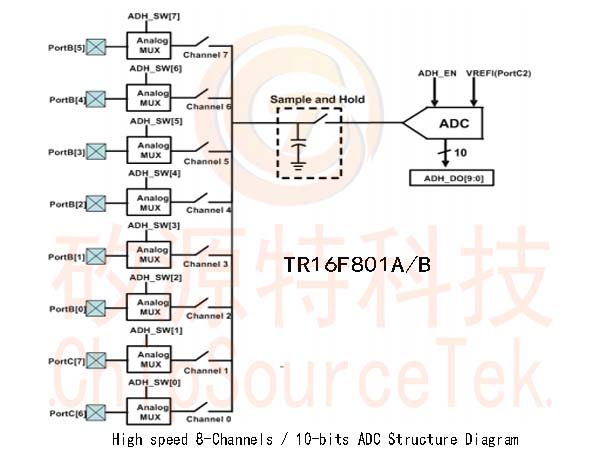

TR16F801A/B high-speed 8-channel / 10-bit ADC structure diagram:

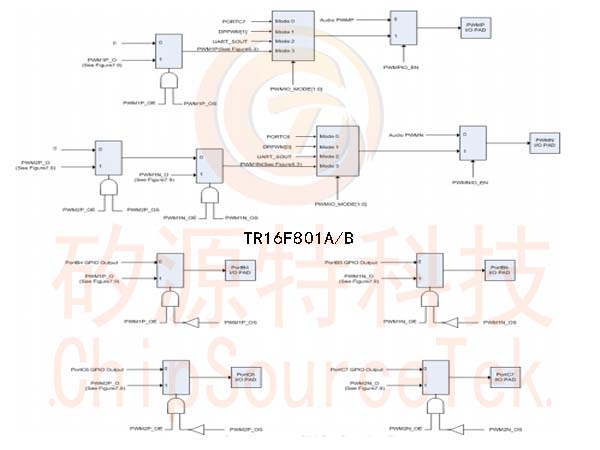

TR16F801A/B PWM1/PWM2 PIN configuration diagram:
TR16F801A/B I/O Pin Selection diagram:

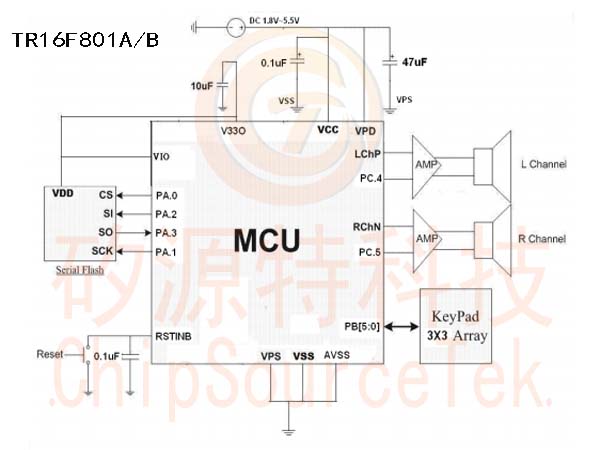

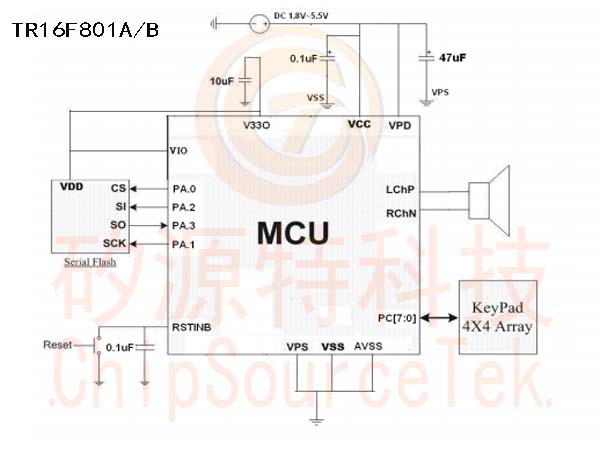

TR16F801A/B Application Circuit:


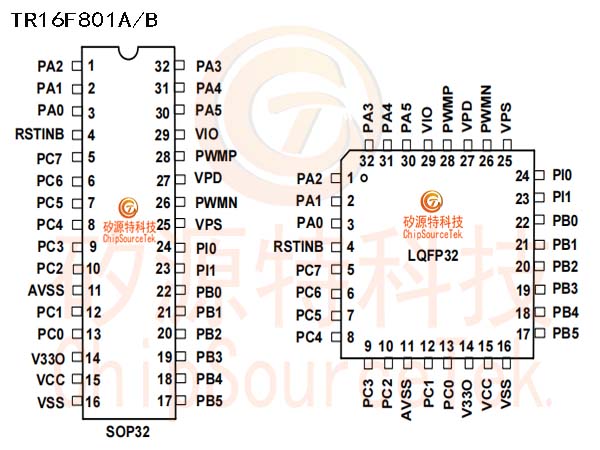

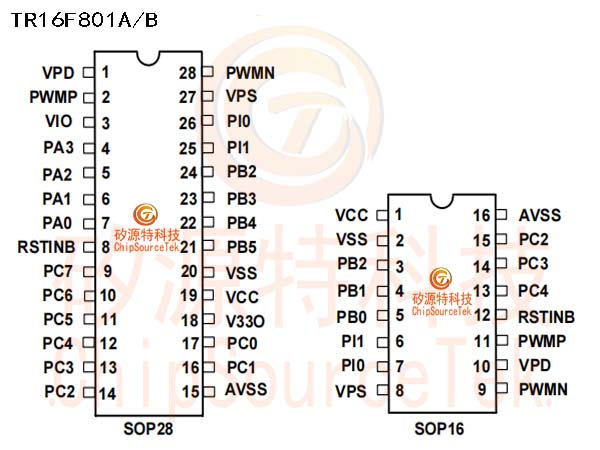

TR16F801A/B Package: SOP28/SOP32/SOP16/LQFP32:
