CSTS8N10 SOT89-3L
The CSTS8N10 is an N-channel fast switching Mosfet with VDS=100V, ID=6.5A, and RDSON=110mΩ.
The CSTS8N10 is available in a SOT89-3L package.
The CSTS8N10 is available in a SOT89-3L package.
CSTS8N10 Description:
The CSTS8N10 is an N-channel fast switching Mosfet with VDS=100V, ID=6.5A, and RDSON=110mΩ.
The CSTS8N10 is available in a SOT89-3L package.
The CSTS8N10 is available in a SOT89-3L package.
CSTS8N10 Features:
Split gate channel MOSFET technology
Excellent cooling package
High density battery design with low RDS (ON)
Excellent cooling package
High density battery design with low RDS (ON)
CSTS8N10 Application:
DC-DC converter
Power management function
Synchronous rectification applications
Power management function
Synchronous rectification applications
CSTS8N10 Product Overview:
BVDSS | RDSON | ID |
100V | 110mΩ | 6.5A |

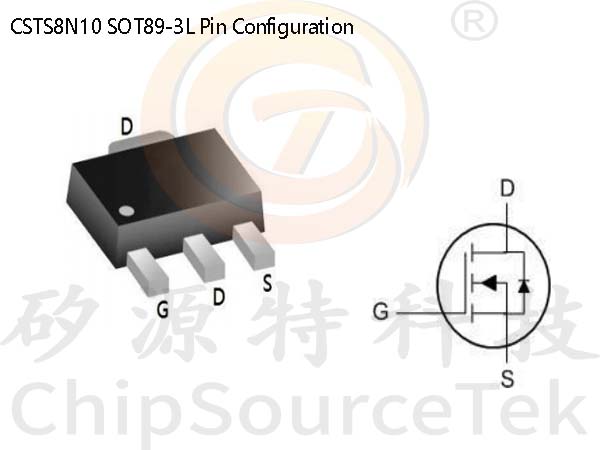

CSTS8N10 SOT89-3L Pin configuration:

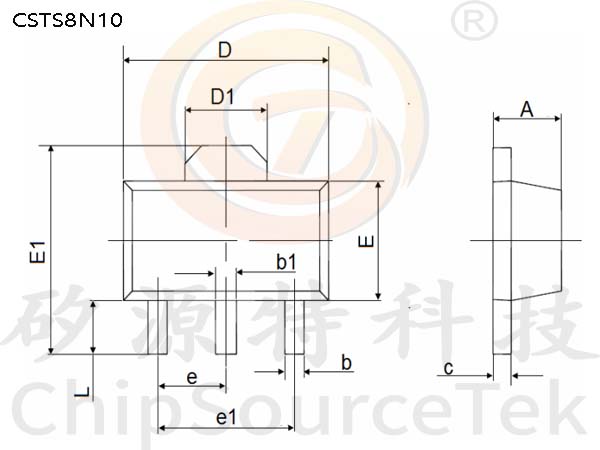

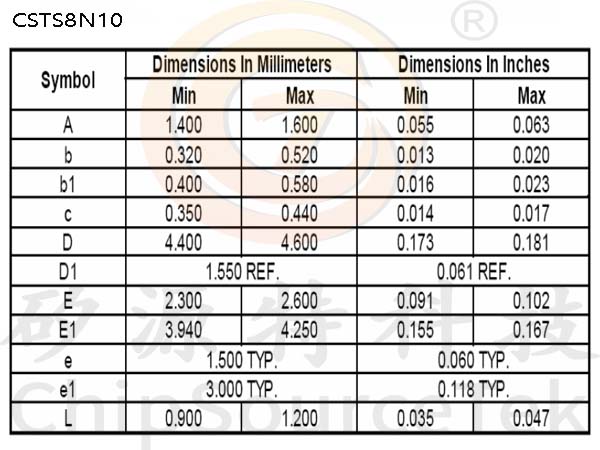

CSTS8N10 SOT-89-3L Packaging Information:
