CS8330C

    The CS8330C is a Class R mono audio power amplifier that can be used for dual power supply applications with a single lithium battery and a 12V adapter, suitable for each power supply node from 2.7 to 12V, external gain adjustment, with four anti-break modes,AB/D switching, power limitation, built-in BOOST booster module and adaptive boost booster module.
    Fully differential architecture and extremely high PSRR effectively improve the ability to suppress RF noise, in the case of a single lithium battery power supply,CS8330C can drive as low as 4Ω load, maximum output of 15W constant power; The CS8330C can drive loads as low as 3Ω with a maximum output of 18W of constant power when powered by two lithium batteries in series. In the case of 12V adapter power supply, CS8330C BOOST module is turned off, and its power amplifier module can drive 4 ohm load output 20W power; CS8330C Class AB Class D switchable mode design, minimize the audio subsystem power amplifier interference to FM, for the end product to provide a more extreme power output.

CS8330C Description:

    The CS8330C is a Class R mono audio power amplifier that can be used for dual power supply applications with a single lithium battery and a 12V adapter, suitable for each power supply node from 2.7 to 12V, external gain adjustment, with four anti-break modes,AB/D switching, power limitation, built-in BOOST booster module and adaptive boost booster module.
    In the case of a single lithium battery, the CS8330C can drive loads as low as 4Ω, with a maximum output of 15W constant power; The CS8330C can drive loads as low as 3Ω with a maximum output of 18W of constant power when powered by two lithium batteries in series. In the case of 12V adapter power supply, CS8330C BOOST module is turned off, and its power amplifier module can drive 4 ohm load output 20W power; CS8330C Class AB Class D switchable mode design, minimize the audio subsystem power amplifier interference to FM, for the end product to provide a more extreme power output.
    The CS8330C's fully differential architecture and extremely high PSRR effectively improve the ability to suppress RF noise. No filter PWM modulation structure and built-in BOOST boost module, and CS8330C adopts proprietary AERC(Adaptive Edge Rate Control) technology, greatly reducing EMI interference in the full bandwidth range of audio, 60cm audio line, In the FCC standard with more than 20dB margin, in addition CS8330C built-in overcurrent protection, short circuit protection and overheating protection, effective protection chip under abnormal working conditions will not be damaged.

    The CS8330C offers a small TSSOP20-PP package with a rated operating temperature range of -40 ° C to 85 ° C.


CS8330C Features:
Built-in BOOST module class R structure, integrated class AB class D two modes
Output power
PO   at  10% THD+N, VIN = 3.7V
        RL = 4 Ω   15W(D MODE NCN OFF)
PO   at  1% THD+N, VIN = 3.7V
        RL = 4 Ω    12W(D MODE NCN OFF)
PO   at  10% THD+N, VIN = 7.4V
        RL = 4 Ω+22uH    15W(D MODE NCN OFF)
PO   at  10% THD+N, VIN = 7.4V
        RL = 3 Ω+22uH    18W(D MODE NCN OFF)

Available in TSSOP20-PP package



CS8330C Application:
Portable Bluetooth speaker

Order CS8330C:

Part number (P/N)

encapsulation

encapsulation

Package size

Tape width

quantity


  CS8330C


TSSOP20L-PP


      CS8330C

XXXXXXXX

13’’

16mm

3000 units

         piping

30 units

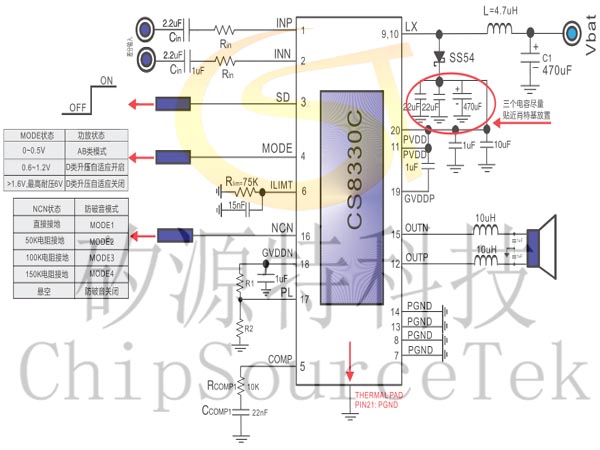

CS8330C Typical application circuit diagram:

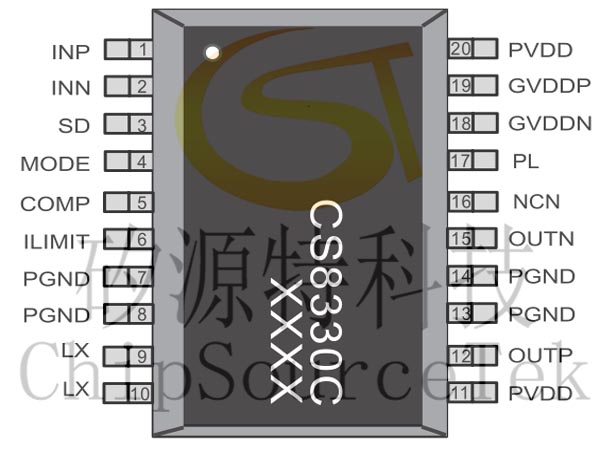

CS8330C Pin distribution:

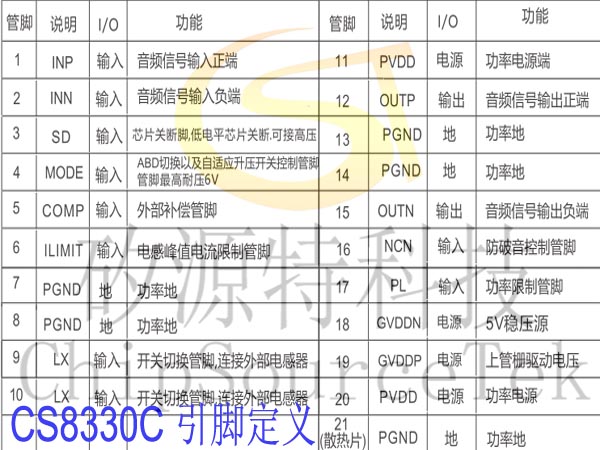

CS8330C pin definition:

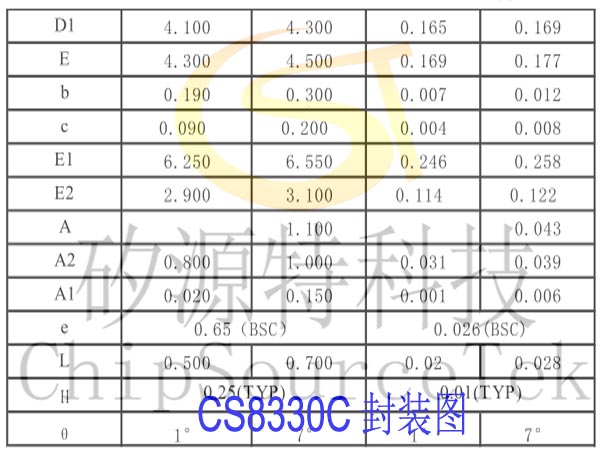

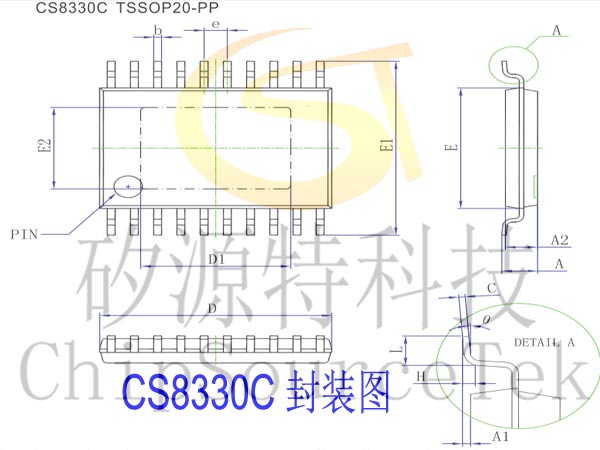

CS8330C package diagram:
