1. Introduction
With the popularization of wireless audio devices, Bluetooth audio systems have become the core technology for connecting smartphones, headphones, speakers and other devices. However, the high-quality transmission of audio signals relies on the underlying communication protocols and physical layer design. In the Bluetooth audio system, I2S (Inter-IC Sound) and differential signal transmission are two key audio transmission technologies. This article will conduct an analysis from aspects such as principles, performance, application scenarios, and comparisons of advantages and disadvantages, exploring how these two technologies can work together to enhance the stability and sound quality of audio transmission. It will also provide a comprehensive perspective by combining practical cases and future trends.
2. The basic principle of the I2S protocol
2.1 Definition of the I2S Protocol
I2S is a serial bus protocol specifically designed for digital audio, developed by Philips. It is widely used for data transmission between audio codecs (Dacs/ADCs), microcontrollers and audio processing chips. It accomplishes the synchronous transmission of audio data through three core signal lines
Frame Clock (LRCK) : Indicates the data frame switching of the left channel or the right channel.
Bit Clock (SCLK) : Synchronize the data transmission of each bit of a single audio sample.
Data cable (SDATA) : Transmits audio sampling data (typically 16 to 32-bit binary complement)
In addition, the I2S protocol also supports a master clock (MCLK) for precisely synchronizing sampling rates (such as 44.1kHz or 48kHz).
2.2 The workflow of I2S

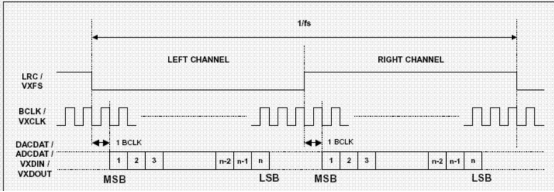

The typical workflow of the I2S protocol is as follows (see Figure 1 below) :
Frame synchronization: The LRCK signal switches at the beginning of each audio frame to identify the left and right channels.
Bit synchronization: The SCLK signal transmits audio data bit by bit to ensure strict synchronization between the sender and the receiver.
Data transmission: The SDATA line outputs audio data bits on the rising or falling edge of the SCLK.
2.3 Advantages and Limitations
Advantages
High-precision synchronization: Through strict timing control of LRCK and SCLK, audio data is ensured to be distortion-free.
Flexible expansion: Supports multi-channel audio (such as 5.1 surround sound) and variable bit depth (16 to 32 bits).
Low latency: Direct hardware-level transmission without software intervention.
Limitations
Short-distance limitation: I2S is typically suitable for board-level communication (<1 meter), and long-distance transmission is prone to interference.
Sensitive to electromagnetic interference: Single-ended signal lines are prone to EMI influence, resulting in a decline in sound quality.
3. The basic principle of differential signal transmission
3.1 Definition of Differential Signals
Differential signals are a method of transmitting complementary signals (positive phase and negative phase) through two wires. The core idea is to extract the original data by detecting the voltage difference between the two signals. For example, in the RS-422 or LVDS (Low Voltage Differential Signal) standard, the signal represents the logical state in the form of a difference:
3.2 Working Mechanism of Differential Signals

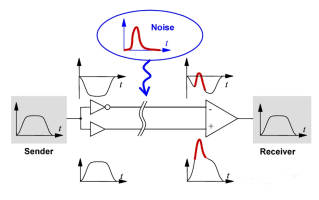

The transmission process of differential signals (see Figure 2 below) includes the following steps:
Signal generation: The transmitting end generates a pair of signals with equal amplitudes and opposite phases.
Noise suppression: External interference (such as EMI) can act on both lines simultaneously, but at the receiving end, only the voltage difference is extracted through a differential amplifier, and the common-mode noise is cancelled out.
High-fidelity transmission: Due to the small signal amplitude (such as the 350mV peak-to-peak value of LVDS), it has low power consumption and strong anti-interference ability.
3.3 Advantages and Limitations
Advantages
Super strong anti-interference: With common-mode noise suppression, it is suitable for industrial environments (such as near motors).
Long-distance transmission: Differential signals can drive twisted-pair cables (STP) or shielded cables, with transmission distances reaching tens of meters.
Low power consumption: Small signal amplitudes (such as LVDS) reduce energy consumption and are suitable for mobile devices.
Limitations
High hardware cost: Additional wiring (2 wires per signal pair) and differential amplifiers are required.
Design complexity: Impedance matching and layout optimization are required to avoid crosstalk.
4. Comparative Analysis of I2S and Differential Signals
| Test project | I2S single-ended transmission | Differential I2S transmission | Hybrid Scheme（SerDes） |
| Transmission distance | ≤1meter | 10~30meter | More than 50 meters |
| Signal-to-noise ratio （SNR） | 94dB@44.1kHz | 105dB@44.1kHz | 110dB@44.1kHz |
| Total harmonic distortion（THD） | 0.01% | 0.005% | 0.002% |
| Anti-interference ability（EMI） | Easily disturbed | Medium | Extremely strong |
| Power consumption (typical value) | 150mW | 200mW | 300mW |
| Hardware cost | low | In the | high |
4.1 Comparison of Anti-interference Capability
I2S: Single-ended signal lines are vulnerable to EMI. Interference needs to be mitigated by using shielded cables or shortening the wiring length.
Differential signal: Through common-mode noise suppression, high-fidelity transmission can be maintained even in high-noise environments (such as beside motor drivers).
4.2 Bandwidth and Speed
I2S: The bandwidth is limited by the clock frequency (for example, at a 48kHz sampling rate, the SCLK frequency is several MHz).
Differential signal: Supports high-speed transmission (such as 5Gbps of USB 3.0), but the actual bandwidth is limited by the encoding method and channel quality.
4.3 Cost and Design Complexity
I2S: Low cost, suitable for on-chip communication; However, long-distance transmission requires additional protective measures.
Differential signal: It has a relatively high hardware cost, but it reduces the need for later maintenance (such as a lower failure rate).
5. Application Scenarios and cases
5.1 Application Scenarios of I2S
Bluetooth audio chipset
In Bluetooth headphones, the I2S protocol is often used to connect the Bluetooth module with the DAC chip to achieve low-latency audio playback.
For instance, Qualcomm's QCC series Bluetooth chips communicate with audio processors via the I2S interface.
Home audio system
The multi-channel power amplifier is connected to the motherboard via the I2S bus and supports 7.1-channel audio transmission.
5.2 Application Scenarios of Differential Signals
Automobile audio system
In vehicle audio, LVDS differential signals transmit uncompressed I2S audio streams through shielded twisted-pair (STP) cables to avoid electromagnetic interference.
For instance, the MAX9205/LVDS SerDes solution can package I2S data and transmit it to the door speaker via a single STP.
Industrial sensor network
The differential Hall effect sensor transmits magnetic field data through differential signals, eliminating stray magnetic field interference.
6. Technology Integration: The Synergistic application of I2S and Differential Signals
In complex Bluetooth audio systems, relying solely on I2S or differential signal transmission is difficult to meet all requirements. Therefore, the integration of the two technologies has become an important direction for enhancing system performance. The following explores its collaborative mechanism through actual cases:
6.1 Design of Differential I2S Interface
Principle: Upgrade the single-ended signal lines of the I2S protocol (SDATA, LRCK, SCLK) to differential pairs (such as LVDS standard), and transmit complementary signals through twisted-pair cables.
Advantages
Anti-interference capability multiplied: Differential signals suppress common-mode noise, significantly reducing the impact of EMI.
Long-distance transmission: Supports wiring over 10 meters, suitable for distributed audio systems.
Case
The car audio system: The BMW iX model adopts TI's TLV320AIC3254 audio codec, which is connected to the main control chip and multiple speaker modules through a differential I2S interface to ensure the consistency of sound quality in remote units such as doors and sunroofs.
Industrial-grade headphone system: Bose SoundLink Revolve+ uses differential I2S protocol to transmit high-fidelity audio to remote amplifiers, avoiding interference from the electromagnetic environment in the workshop.
7. Comparison of actual performance tests
6.2 Application of SerDes Technology
Definition: A Serializer/Deserializer (SerDes) compresses and transmits multiple I2S signals through high-speed differential channels.
Workflow
Encoding: Package multiple I2S data streams into high-speed differential signals (such as 1Gbps).
Transmission: Sent via a single shielded cable (such as HDMI or USB Type-C).
Decoding: The receiving end restores the original I2S stream and distributes it to each channel.
Advantages
Reduce wiring complexity: Replace the traditional multi-wire I2S bus with a single wire.
Support dynamic topology: Adapt to the flexible connection requirements of mobile devices such as detachable speakers.
Case
Wireless home theater system: The Dolby Atmos AV receiver transmits the I2S audio stream to the surround sound speakers through SerDes technology, achieving a 7.1.4-channel experience without delay.
7. Comparison of actual performance tests
| Test project | I2S single-ended transmission | I2S single-ended transmission | Hybrid Scheme （SerDes） |
| Transmission distance | ≤1meter | 10~30meter | More than 50 meters |
| Signal-to-noise ratio（SNR） | 94dB@44.1kHz | 105dB@44.1kHz | 110dB@44.1kHz |
| Total harmonic distortion（THD） | 0.01% | 0.005% | 0.002% |
| Anti-interference ability（EMI） | Easily disturbed | Medium | Extremely strong |
| Power consumption (typical value) | 150mW | 200mW | 300mW |
| Hardware cost | low | In the | high |
7.1 Test Conclusion
Short-distance scenarios: The I2S single-ended solution offers high cost performance and is suitable for internal communication on the motherboard.
Long-distance/high-interference scenarios: Differential I2S or SerDes solutions are superior, especially in industrial and automotive environments where they perform stably.
Cost-sensitive applications: The cost of differential schemes can be reduced by optimizing the layout (such as PCB trace impedance matching).
8. The impact of emerging technologies
8.1 Standardization of high-speed differential interfaces
USB 4 and Thunderbolt 4:
Supports 40Gbps differential signal transmission and can carry uncompressed 24-bit/192kHz I2S audio streams.
"One cable for multiple uses" (audio + video + charging) is achieved through the Type-C interface.
It provides 10Gbps differential signal transmission capability for professional-grade digital mixing consoles (such as SSL AWS900+).
8.2 AI-driven Dynamic Optimization
Adaptive impedance matching
The impedance of the differential line is adjusted in real time by using machine learning algorithms (such as 50Ω→100Ω) to eliminate reflected interference.
Predict the EMI peak based on historical data and dynamically switch the I2S clock frequency to avoid interference bands.
9. Design practice suggestions
9.1 PCB Routing Skills
I2S single-ended cabling
Use a 4-layer board (signal layer + ground layer) to shorten the SDATA line length (<1cm).
Add isolation grooves between LRCK and SCLK to reduce crosstalk.
Differential cabling
Strictly symmetrical wiring, with the spacing controlled within three times the line width.
The terminal resistor (100Ω) is placed close to the receiving end.
9.2 Protection against External Interference
Selection of shielding materials
For vehicle-mounted systems, FEP (fluorinated ethylene propylene) sheathed cables are recommended. They are corrosion-resistant and have a bending life of ≥ 100,000 times.
Grounding strategy
Single-point grounding: Suitable for low-frequency systems (<1MHz).
Multi-point grounding: For high-frequency systems (>10MHz), grounding is required every 10cm.
10.1 SONY WH-1000XM5 Noise-cancelling Headphones
Technical highlights
The main control chip (Sony SBC3702) communicates with the DAC chip via the I2S bus to output high-definition audio.
The noise-cancelling microphone array transmits environmental noise data through differential signals to avoid interfering with the main audio path.
10.2 BMW iX car Audio system
Technical solution
The central audio processor and four zoned power amplifier modules are connected via shielded twisted-pair cables using the differential I2S protocol.
Each line supports independent volume adjustment and equalizer configuration to achieve a personalized auditory experience.
11. Future development trends
The Rise of hybrid solutions
Combining I2S with differential signals, for instance, in a Bluetooth audio system, using differential signals to transmit I2S data packets takes into account both anti-interference and high fidelity.
Standardization and integration
New audio interfaces (such as HDMI 2.1) integrate differential signals with the I2S protocol and support higher bandwidths (such as 48Gbps).
Ai-driven dynamic optimization
The impedance matching and noise suppression strategies of differential signals are adjusted in real time by using machine learning algorithms to enhance transmission stability.
12. Conclusion
I2S and differential signal transmission technologies each have their own advantages in Bluetooth audio systems:
I2S, with its high-precision synchronization and low-latency features, has become the preferred choice for audio communication between chips.
Differential signals play an irreplaceable role in complex electromagnetic environments due to their anti-interference capabilities and long-distance transmission advantages.
In the future, with the growth of wireless audio demand and the integration of technologies, the collaborative application of the two will become a key direction for enhancing sound quality and system robustness.
