FM8116
FM8116 is a single-chip device that integrates lithium battery charging and discharging, button detection, and driving functions. The system is highly integrated and only requires a small number of peripheral devices to build a complete commercial water replenishment system.
Water supply instrument is an instrument that processes liquid water through the instrument and sprays it in the form of atomized nano water molecules, so it can also be called "spray instrument".
Water supply instrument is an instrument that processes liquid water through the instrument and sprays it in the form of atomized nano water molecules, so it can also be called "spray instrument".
FM8116 Description:
FM8116 is a single-chip device that integrates lithium battery charging and discharging, button detection, and driving functions. The system is highly integrated and only requires a small number of peripheral devices to build a complete commercial water replenishment system.
Water supply instrument is an instrument that processes liquid water through the instrument and sprays it in the form of atomized nano water molecules, so it can also be called "spray instrument".
The hydrating device can quickly penetrate through pores into deep skin tissues for absorption, thereby achieving the effect of deep hydration and cleansing of the skin.
FM8116characteristic:
Power on and charging indicator light
Continuous working time of 5 minutes
Button working mode
Output frequency 108K, 40% duty cycle square wave
Fixed charging current of 350mA
The blue light flashes 20 times and shuts down when the voltage is below 3.0V
In undervoltage mode, there is a flashing light prompt when pressing the power button to turn on the device
Suitable for single lithium-ion batteries
Can directly charge a single lithium-ion battery from the USB port
When the battery is low and connected to the charger, it will automatically recharge
Support simultaneous charging and discharging
The power supply current in standby mode is 2uA@3.7V
Adopting ASIC design
Adopting SOP-8 Packaging.
Continuous working time of 5 minutes
Button working mode
Output frequency 108K, 40% duty cycle square wave
Fixed charging current of 350mA
The blue light flashes 20 times and shuts down when the voltage is below 3.0V
In undervoltage mode, there is a flashing light prompt when pressing the power button to turn on the device
Suitable for single lithium-ion batteries
Can directly charge a single lithium-ion battery from the USB port
When the battery is low and connected to the charger, it will automatically recharge
Support simultaneous charging and discharging
The power supply current in standby mode is 2uA@3.7V
Adopting ASIC design
Adopting SOP-8 Packaging.
FM8116application:
Water replenishing device
FM8116ordering information:
model | Package |
FM8116 | SOP-8 |

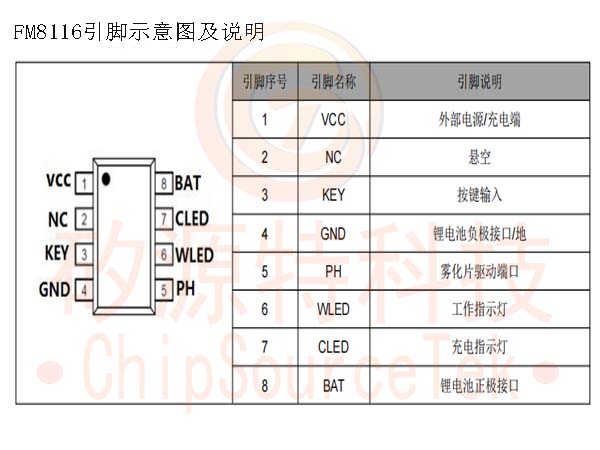

FM8116Pin diagram and explanation:

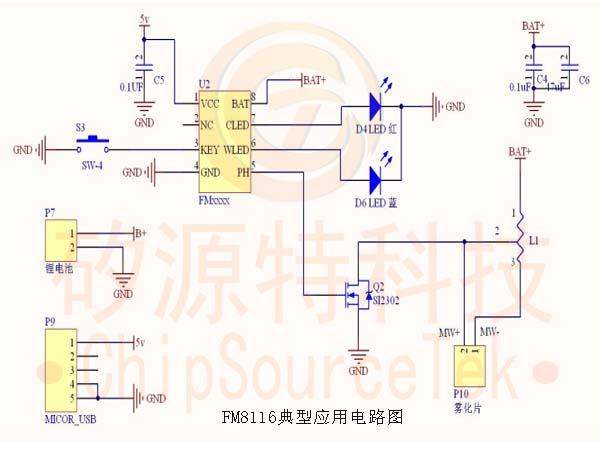

FM8116Typical application circuit diagram:
