FM25XX
The FM25XX series is a low-power primary side feedback (PSR) switching power supply chip that integrates high-power MOSFET transistors, suitable for isolated, high-efficiency, low-power portable device charger applications. FM25XX adopts unique primary feedback control technology with constant current and voltage function, as well as unique PFM+PWM technology to reduce the power consumption of the chip under light load and achieve efficient application.
FM25XX has FM2539S, Ten models including FM2539D, FM2540S, FM2540D, FM2540TS, FM2541S, FM2541SD, FM2541D, FM2542S, and FM2542D have been ordered. Please refer to the ordering information table for details.
FM25XX has FM2539S, Ten models including FM2539D, FM2540S, FM2540D, FM2540TS, FM2541S, FM2541SD, FM2541D, FM2542S, and FM2542D have been ordered. Please refer to the ordering information table for details.
FM25XX Description：
The FM25XX series is a low-power primary side feedback (PSR) switching power supply chip that integrates high-power MOSFET transistors, suitable for isolated, high-efficiency, low-power portable device charger applications. FM25XX adopts unique primary feedback control technology with constant current and voltage function, as well as unique PFM+PWM technology to reduce the power consumption of the chip under light load and achieve efficient application. FM25XX has output line loss compensation technology to ensure sufficient output power under high current. In addition, FM25XX also integrates over temperature protection, VCC undervoltage protection, VCC overvoltage protection, output short circuit protection and other technologies. FM25XX adopts a compact DIP/SOP package, which facilitates system design and wiring. The FM25XX series offers three packaging options: SOP7, DIP7, and SOP8.
FM25XX has FM2539S, Ten models including FM2539D, FM2540S, FM2540D, FM2540TS, FM2541S, FM2541SD, FM2541D, FM2542S, and FM2542D have been ordered. Please refer to the ordering information table for details.
FM25XX has FM2539S, Ten models including FM2539D, FM2540S, FM2540D, FM2540TS, FM2541S, FM2541SD, FM2541D, FM2542S, and FM2542D have been ordered. Please refer to the ordering information table for details.
FM25XX Series features：
Integrated high-power MOSFET transistor
High precision constant voltage and constant current control
Adopting PFM+PWM mode
Standby power consumption is less than 75MW
No audio noise
Output short circuit protection
VCC overvoltage protection and clamp protection
VCC undervoltage protection
Over temperature protection
Original feedback: There are few peripheral components
The FM25XX series offers three packaging options: SOP7, DIP7, and SOP8
High precision constant voltage and constant current control
Adopting PFM+PWM mode
Standby power consumption is less than 75MW
No audio noise
Output short circuit protection
VCC overvoltage protection and clamp protection
VCC undervoltage protection
Over temperature protection
Original feedback: There are few peripheral components
The FM25XX series offers three packaging options: SOP7, DIP7, and SOP8
FM25XX Series of applications：
Chargers and adapters for portable devices such as mobile phones
LED driver power supply
LED driver power supply
FM25XX ordering information：
| Model | Package | MOS pressure resistance （VDS） | MOS internal resistance（Rds_ON） | MOS electric current （ID） | Recommend Power（90~265V） |
| FM2539S | SOP-7 | 650V | 4.2Ω（MAX） | 2A | 10W（5V/2A） |
| FM2539D | DIP-7 | 650V | 4.2Ω（MAX） | 2A | 10W（5V/2A） |
| FM2540S | SOP-7 | 650V | 3.0Ω（MAX） | 3A | 12W（5V/2.4A） |
| FM2540D | DIP-7 | 650V | 3.0Ω（MAX） | 3A | 12W（5V/2.4A） |
| FM2540TS | SOP-8 | 650V | 3.0Ω（MAX） | 3A | 12W（5V/2.4A） |
| FM2541S | SOP-8 | 650V | 2.3Ω（MAX） | 4A | 18W（12V/1.5A） |
| FM2541SD | SOP-8 | 650V | 2.3Ω（MAX） | 4A | 18W（12V/1.5A） |
| FM2541D | DIP-7 | 650V | 2.3Ω（MAX） | 4A | 18W（12V/1.5A） |
| FM2542S | SOP-8 | 650V | 1.5Ω（MAX） | 3A（Cool mos） | 20W（12V/1.7A） |
| FM2542D | DIP-7 | 650V | 1.5Ω（MAX） | 3A（Cool mos） | 24W（12V/2A） |

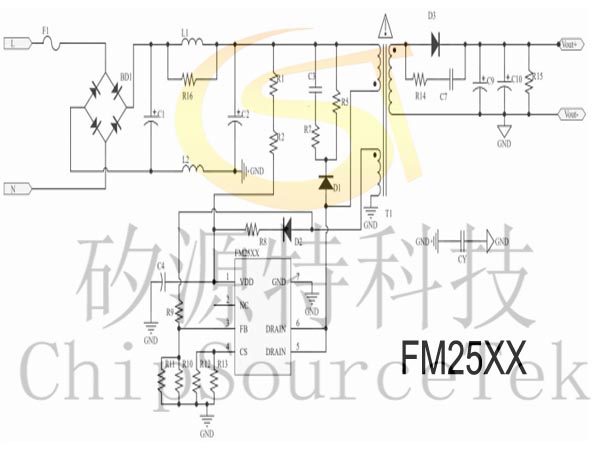

FM25XX Series Typical Application Circuit Diagram：
FM25XX Series pin schematic diagram：

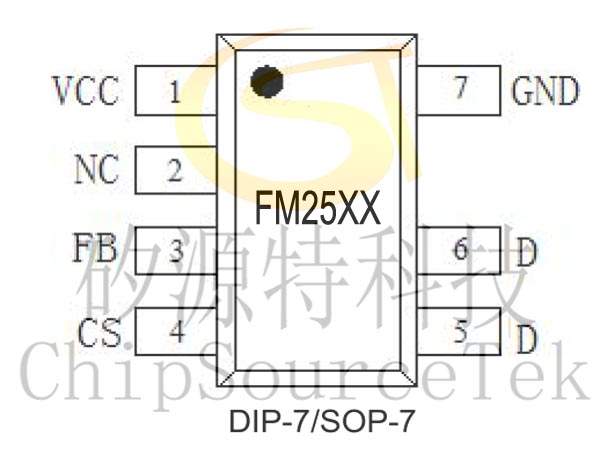

DIP-7/SOP-7:

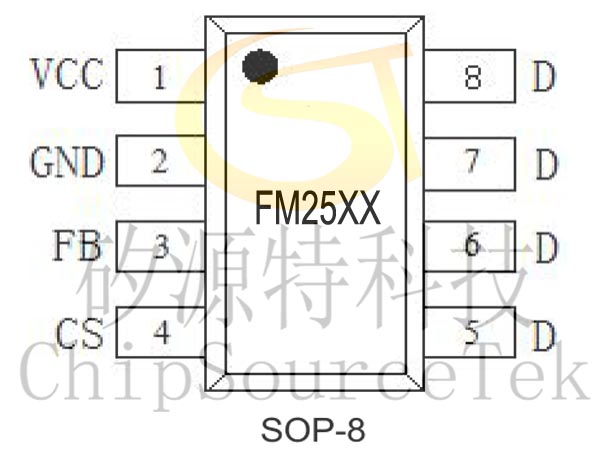

SOP-8:
.jpg)

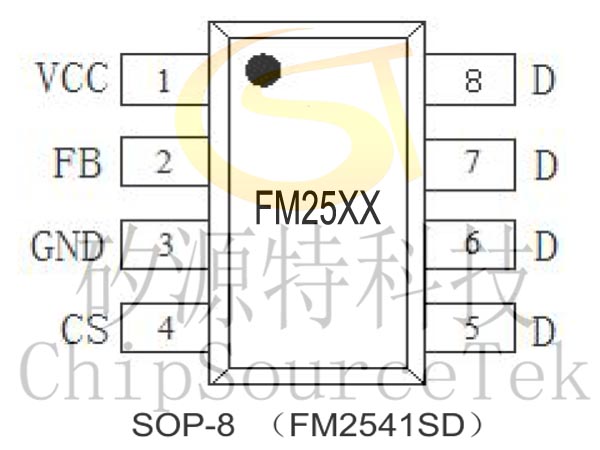

SOP8(FM2541SD):
.jpg)

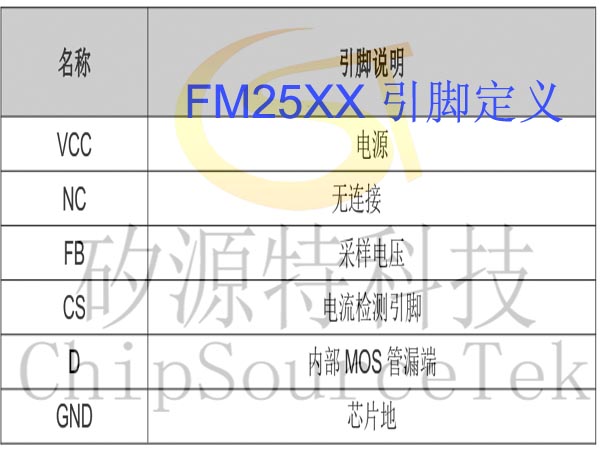

FM25XX Pin Definition：

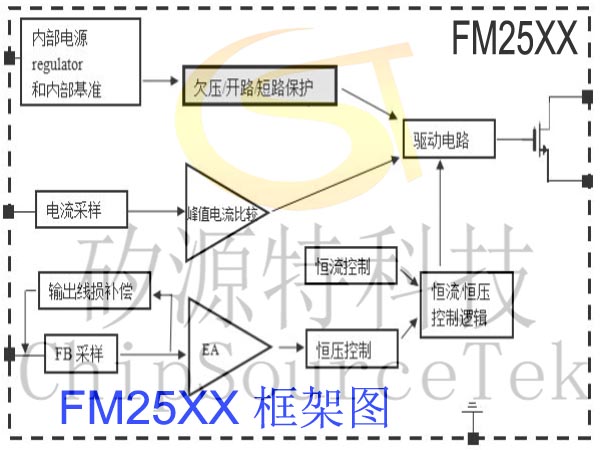

FM25XX Functional Block Diagram：

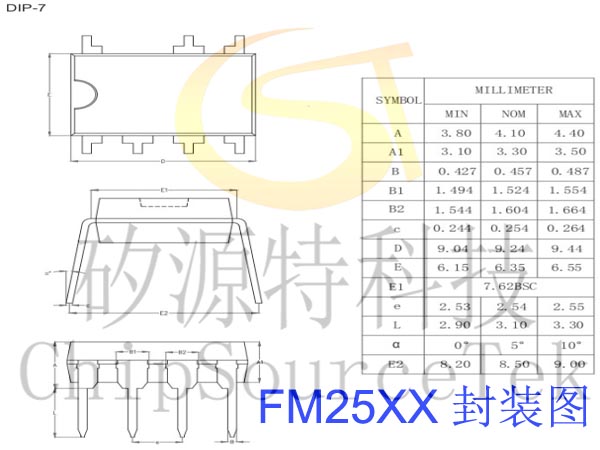

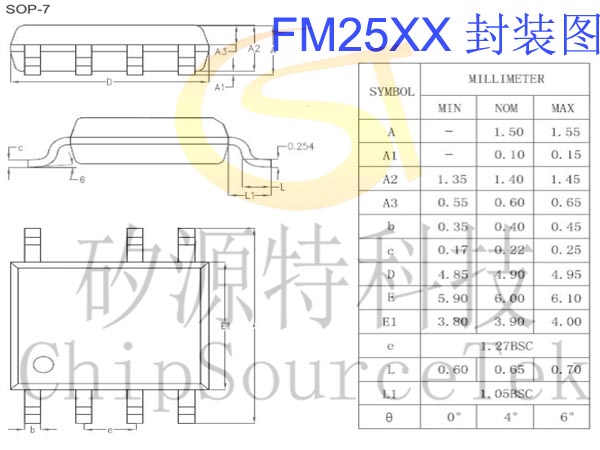

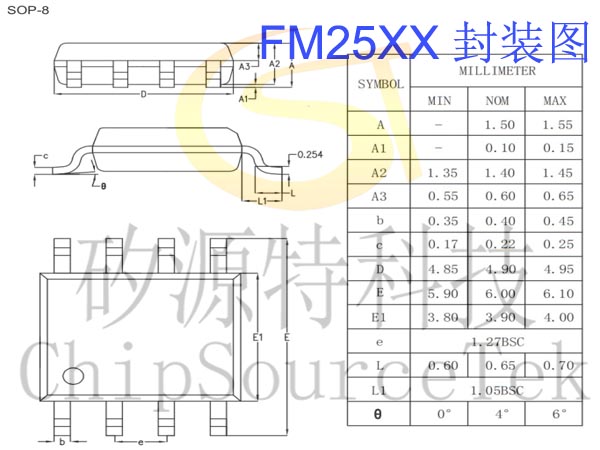

FM25XX Packaging diagram：
