LM358
LM358 is a dual channel low-power differential operational amplifier. It has the characteristics of single and dual power supply. It has the characteristics of high open-loop gain, internal compensation, high common mode range, good temperature stability, and output short-circuit protection. Can be applied in sensor amplification circuits, DC amplification modules, audio amplification circuits, and traditional operational amplification circuits.
LM358 Description:
LM358 is a dual channel low-power differential operational amplifier. It has the characteristics of single and dual power supply. It has the characteristics of high open-loop gain, internal compensation, high common mode range, good temperature stability, and output short-circuit protection. Can be applied in sensor amplification circuits, DC amplification modules, audio amplification circuits, and traditional operational amplification circuits.
LM358 Product Features:
*Internal frequency compensation
*High input single power supply voltage range: 3V~36V
*Short circuit protection
*High input dual power supply voltage range: ± 18V
*Low power consumption: single channel typical value 300uA
*Unit gain bandwidth: greater than 1.2MHz
*Encapsulation form: DIP8, SOP8
*High input single power supply voltage range: 3V~36V
*Short circuit protection
*High input dual power supply voltage range: ± 18V
*Low power consumption: single channel typical value 300uA
*Unit gain bandwidth: greater than 1.2MHz
*Encapsulation form: DIP8, SOP8
LM358 Product Usage:
*Sensor signal amplifier
*Audio amplifier
*DC gain
*Other application areas
LM358 Definition of packaging form and pin function:

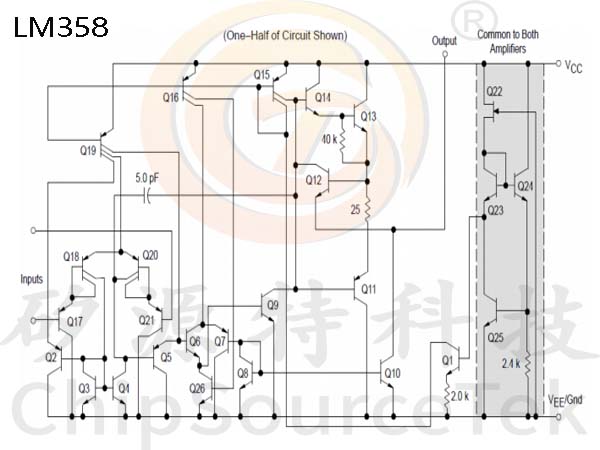

LM358 logic diagram:
LM358 Typical applications:
