LM393
LM393 is a dual voltage comparator with open drain output, which can be powered by a single or dual power supply. It has the characteristics of good temperature stability and output short-circuit protection. It can be directly powered by the standard 5V power supply in digital systems without the need for additional power supply.
LM393 Product Introduction:
LM393 is a dual voltage comparator with open drain output, which can be powered by a single or dual power supply. It has the characteristics of good temperature stability and output short-circuit protection. It can be directly powered by the standard 5V power supply in digital systems without the need for additional power supply.
LM393 Feature:
Single power supply voltage range: 2V~32V
Low output saturation voltage: typical value 0.1V @ IOL=4mA
Low power consumption: typical value 0.6mA @ VCC=5V
Low input offset voltage: typical value ± 1mV
Dual power supply voltage range: ± 16V
Differential input voltage range: ± VCC
Open leakage output
Encapsulation form: DIP8, SOP8
Low output saturation voltage: typical value 0.1V @ IOL=4mA
Low power consumption: typical value 0.6mA @ VCC=5V
Low input offset voltage: typical value ± 1mV
Dual power supply voltage range: ± 16V
Differential input voltage range: ± VCC
Open leakage output
Encapsulation form: DIP8, SOP8
LM393 application:
Voltage amplitude detection circuit
Other application areas
Voltage conversion circuit
Other application areas
Voltage conversion circuit

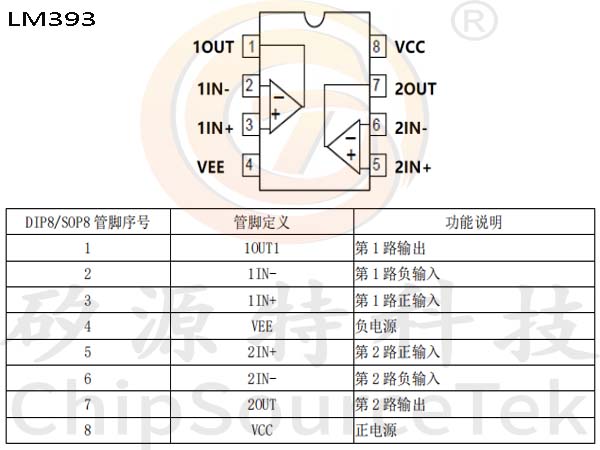

LM393 Definition of packaging form and pin function:

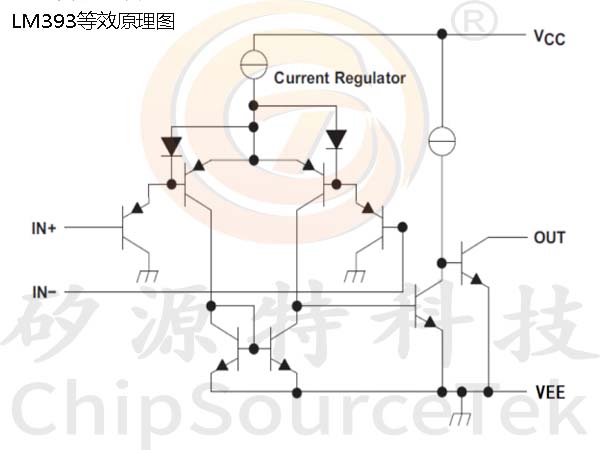

LM393 Equivalent schematic diagram:

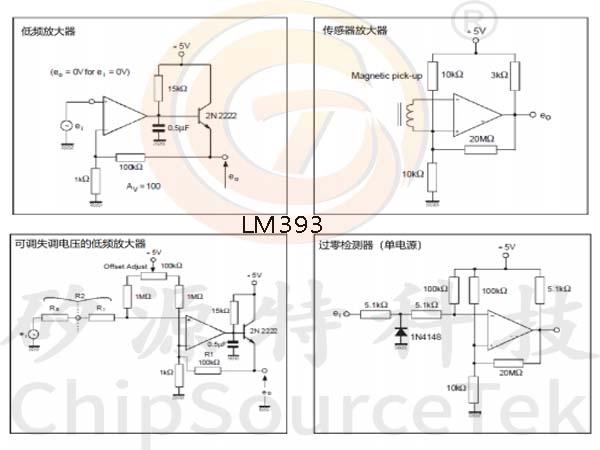

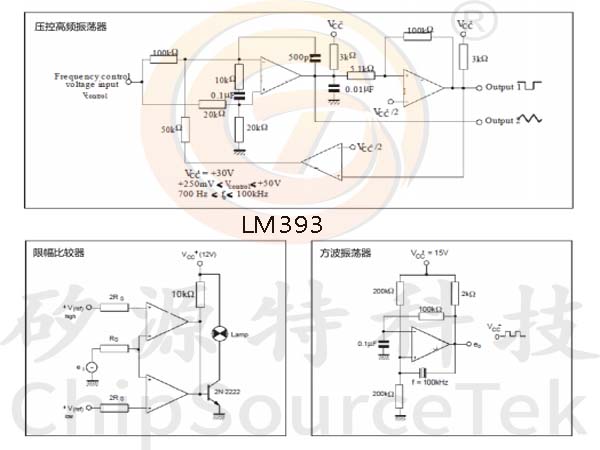

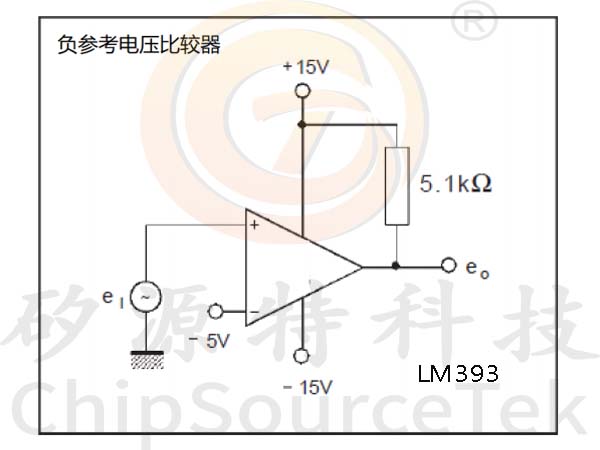

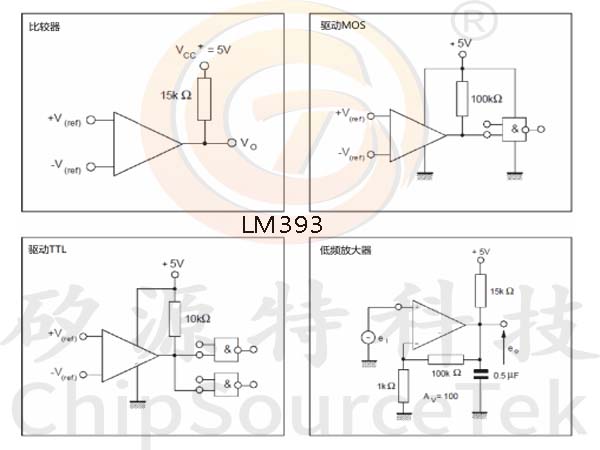

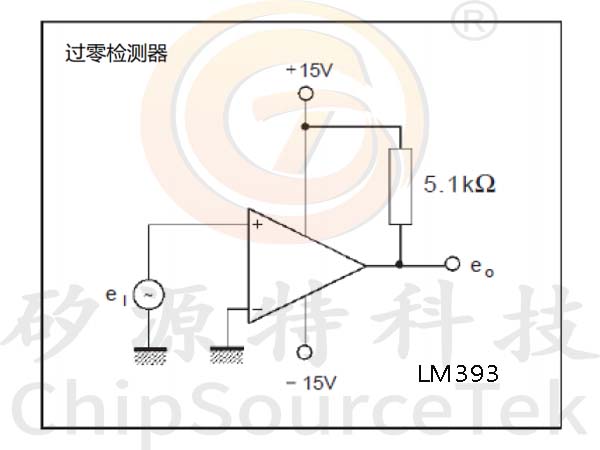

LM393 Typical applications:
