CSTS260N10G TO263
CSTS260N10G is an N-channel fast switching Mosfet with BVDSS=100V,RDSON=2.4mΩ, and ID=260A.
The CSTS260N10G is available in a TO-263 package.
The CSTS260N10G is available in a TO-263 package.
CSTS260N10G Description:
CSTS260N10G is an N-channel fast switching Mosfet with BVDSS=100V,RDSON=2.4mΩ, and ID=260A.
The CSTS260N10G is available in a TO-263 package.
The CSTS260N10G is available in a TO-263 package.
CSTS260N10G Features:
Split gate channel MOSFET technology
Excellent cooling package
High density battery design with low RDS (ON)
Excellent cooling package
High density battery design with low RDS (ON)
CSTS260N10G Application:
DC-DC converter
Power management function
Synchronous rectification applications
Power management function
Synchronous rectification applications
CSTS260N10G Product Overview:
BVDSS | RDSON | ID |
100V | 2.4mΩ | 260A |

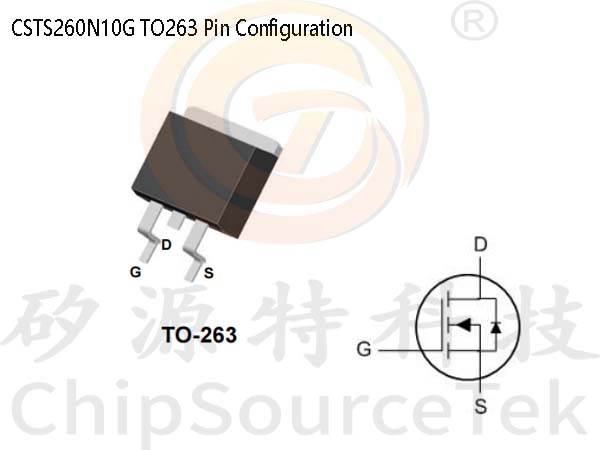

CSTS260N10G TO263 Pin Configuration:

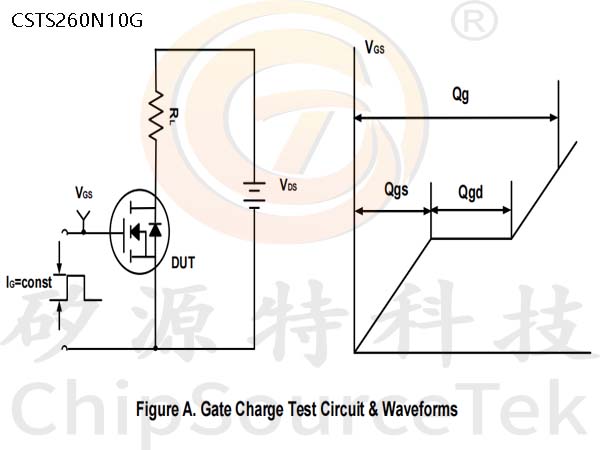

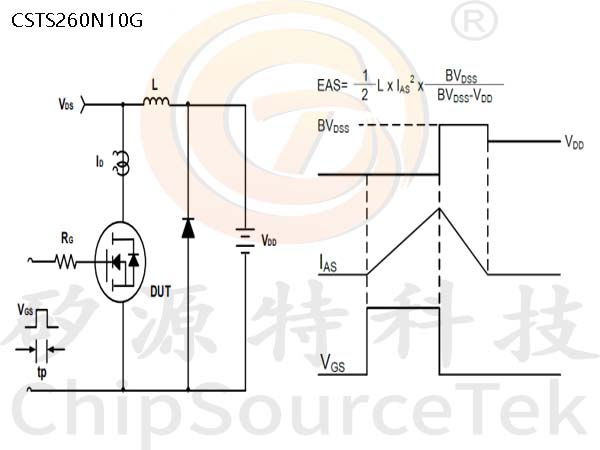

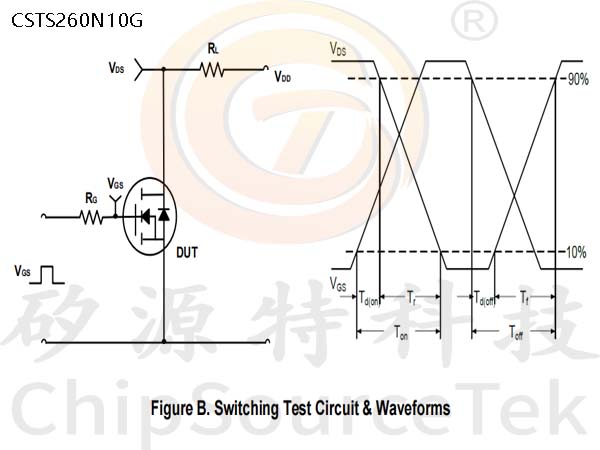

CSTS260N10G Test circuit:

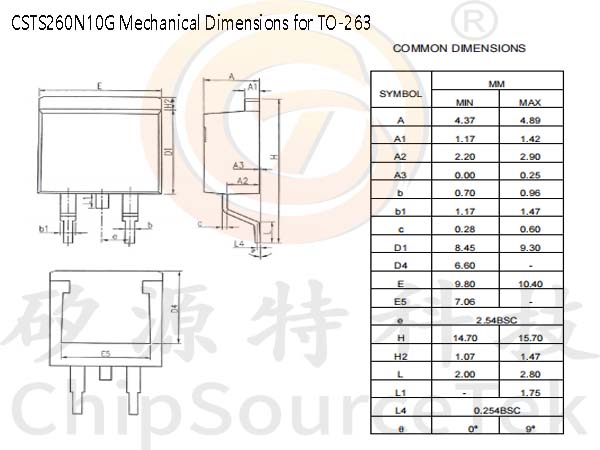

CSTS260N10G TO-263 Package Size:
