CST4012 TO252-4L
CST4012 is N-Ch:BVDSS=40V,RDSON=17 Mω,ID=25A. P-ch :BVDSS=-40V,RDSON=32 Mω,ID=-25A N+P dual-channel fast switching Mosfets. Available in TO252-4L package.
The CST4012 is a high-performance complementary n-channel and P-channel MOSFET with high cell density that provides excellent RDSON and gate charges for most synchronous buck converter applications.
The CST4012 is a high-performance complementary n-channel and P-channel MOSFET with high cell density that provides excellent RDSON and gate charges for most synchronous buck converter applications.
CST4012 Description:
CST4012 is N-Ch:BVDSS=40V,RDSON=17 Mω,ID=25A. P-ch :BVDSS=-40V,RDSON=32 Mω,ID=-25A N+P dual-channel fast switching Mosfets. Available in TO252-4L package.
The CST4012 is a high-performance complementary n-channel and P-channel MOSFET with high cell density that provides excellent RDSON and gate charges for most synchronous buck converter applications.
The CST4012 is RoHS and green product compliant, 100%EAS guaranteed, and certified for full functional reliability.
The CST4012 is a high-performance complementary n-channel and P-channel MOSFET with high cell density that provides excellent RDSON and gate charges for most synchronous buck converter applications.
The CST4012 is RoHS and green product compliant, 100%EAS guaranteed, and certified for full functional reliability.
CST4012 Features:
100%EAS Guarantee
Green equipment available
Ultra-low grid charge
Excellent CdV/dt effect decreases
Advanced high cell density grooving technology
Green equipment available
Ultra-low grid charge
Excellent CdV/dt effect decreases
Advanced high cell density grooving technology
CST4012 Product Overview:
BVDSS | RDSON | ID |
40V | 17mΩ | 25A |
-40V | 32mΩ | -25A |

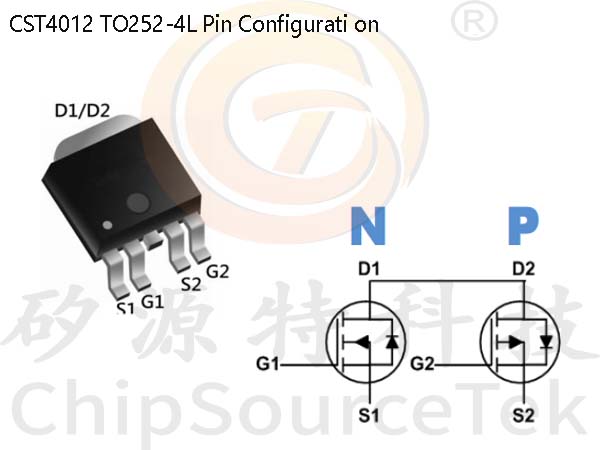

CST4012 TO252-4L pin configuration:

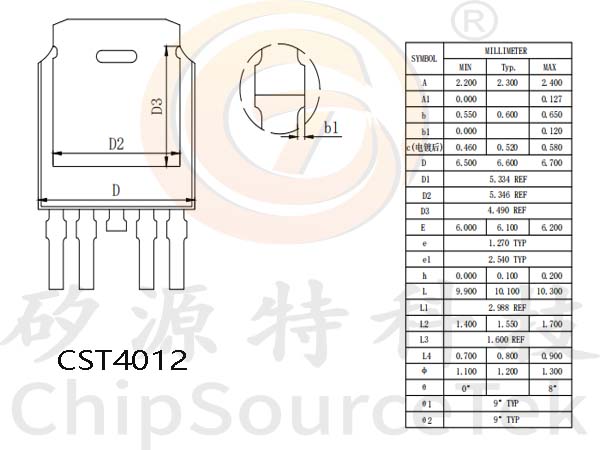

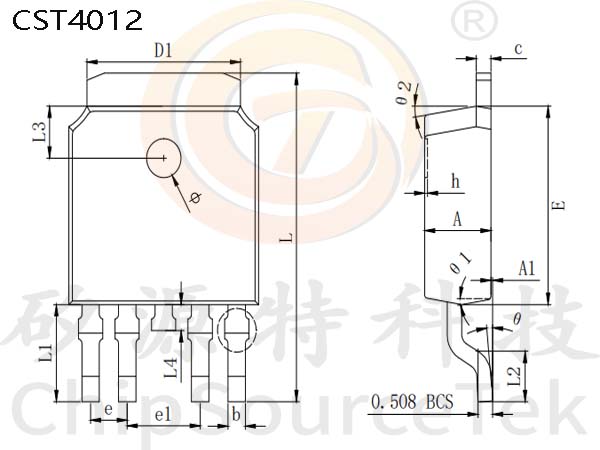

CST4012 Packaging Data:
TO-252-4L
TO-252-4L
