AXS5106L is a high-performance self-capacitor touch controller that supports various self-capacitor sensor patterns and has excellent signal-to-noise ratio to achieve high accuracy and linearity while maintaining ultra-low power consumption. It is very suitable for portable mobile devices such as smart watches and smart bracelets.

  Highly sensitive self-capacitance detection technology

  Support up to 13 channels

  The maximum screen size is 3 inches

  Support GF, GG, OGS and other screen structure

  Support various ITO Sensor patterns (triangles, squares, etc.)

  Support three work modes: Normal mode, Idle mode, Sleep mode

  The sleep mode power consumption is as low as 8uA, the Idle mode consumption is as low as 400uA,and the normal mode power consumption is as low as 2mA

  Touch point report rate up to 120Hz;

  Auto calibration

  Supports I2C interfaces

  Support online programming

  Single power supply 2.7V to 3.6V

  Package：QFN20 3x3x0.55mm

  The AXS5106L is dedicated for self-capacitive touch panel; its typical applications are listed as follows:

  Smart watch, Smart bracelet

  GPS navigator

  Digital camera

  Game consoles

  Portable media play

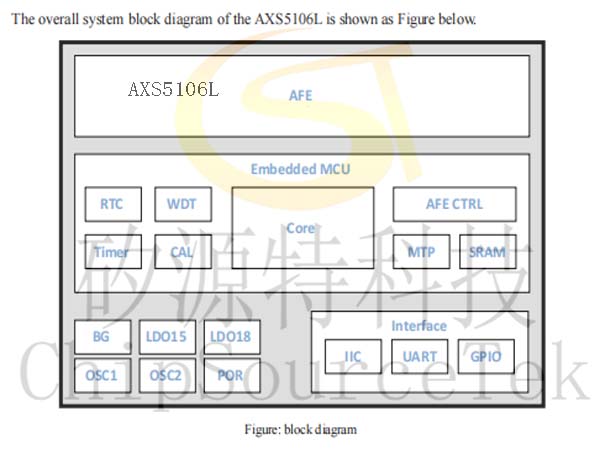

The overall system block diagram of the AXS5106L is shown as Figure below.

There are three work modes available:

  -Normal mode

  -Idle mode

  -Sleep mode

Work modes switching conditions are shown as below:
