TRSF1602A(C)
The TxP16S2TM is a high-performance 16-bit MCU operating at up to 13MHz with 128K FLASH and a total of 3K SRAM for high-performance processing of audio algorithms. It is a new generation of computing cores in the Flash Speech family. It initially targeted the field of voice applications to demonstrate its expertise. The TxP16S2 provides a fast unit that allows computation instructions to be issued simultaneously to the access memory in one cycle. The TRSF1602A(C) is equipped with TxP16S2 and integrated I/O ports, audio PWM, timer and low voltage reset. Let's wait.
In addition, the TRSF1602A(C) extends its ability to connect external devices, such as serial ROM/Flash. Internal storage capacity includes 128Kx16 program/data FLASH and 3Kx16 working SRAM.
In addition, the TRSF1602A(C) extends its ability to connect external devices, such as serial ROM/Flash. Internal storage capacity includes 128Kx16 program/data FLASH and 3Kx16 working SRAM.
TRSF1602A(C) General Description:
The TxP16S2TM is a high-performance 16-bit MCU operating at up to 13MHz with 128K FLASH and a total of 3K SRAM for high-performance processing of audio algorithms. It is a new generation of computing cores in the Flash Speech family. It initially targeted the field of voice applications to demonstrate its expertise. The TxP16S2 provides a fast unit that allows computation instructions to be issued simultaneously to the access memory in one cycle. The TRSF1602A(C) is equipped with TxP16S2 and integrated I/O ports, audio PWM, timer and low voltage reset. Let's wait.
In addition, the TRSF1602A(C) extends its ability to connect external devices, such as serial ROM/Flash. Internal storage capacity includes 128Kx16 program/data FLASH and 3Kx16 working SRAM.
In addition, the TRSF1602A(C) extends its ability to connect external devices, such as serial ROM/Flash. Internal storage capacity includes 128Kx16 program/data FLASH and 3Kx16 working SRAM.
TRSF1602A(C) Features:
* Note: TRSF1602C only supports SOP16-3 and SSOP24-2 packages.
* Note: The TRSF1602A (C) does not support ultra-deep sleep.
* Note: Port C2 must not be connected to VCC or pull-up resistors.
* Note: The TRSF1602A (C) does not support ultra-deep sleep.
* Note: Port C2 must not be connected to VCC or pull-up resistors.
* High-performance RISC TxP16S2 CPU
- Wide operating frequency and voltage 6Mhz~13mhz@1.8volt~5.5 V
- The operating frequency can be programmed by software
- Built-in 3072x16 SRAM
- Embedded PC stack level 16
* Rich DSP features
- Hardware ring buffer support
-MAC Computing power: 13 MIPS (Max)
- Multi-function support: In MAC computing, access two operands in memory at the same time in one cycle
- Extended dynamic range: a 40-bit accumulator that ensures no overflow in 512 consecutive + addition operations
* Embedded flash 128Kx16
- Typical 1000 erase/programming cycles
- Data retention period of more than 10 years
* Software-based audio processing technology
- Sub-band, ADPCM, melody
* Supports 18+2 (ICE PAD can be used as I/O) universal I/O ports.
* Mono 16-bit PWM
*6 IRQ includes two external interrupts
*SPI main interface
* Three timers: Timer 1, timer 2, RTC timer
* Support spread spectrum timing to reduce EMI.
* Watchdog Timer (WDT)
* Low Voltage reset (LVR)
*PB0, PB1, PB2, and PB3 support two edge modes: rising edge trigger and falling edge trigger for wake-up function.
*IR
* Low voltage detector
- Wide operating frequency and voltage 6Mhz~13mhz@1.8volt~5.5 V
- The operating frequency can be programmed by software
- Built-in 3072x16 SRAM
- Embedded PC stack level 16
* Rich DSP features
- Hardware ring buffer support
-MAC Computing power: 13 MIPS (Max)
- Multi-function support: In MAC computing, access two operands in memory at the same time in one cycle
- Extended dynamic range: a 40-bit accumulator that ensures no overflow in 512 consecutive + addition operations
* Embedded flash 128Kx16
- Typical 1000 erase/programming cycles
- Data retention period of more than 10 years
* Software-based audio processing technology
- Sub-band, ADPCM, melody
* Supports 18+2 (ICE PAD can be used as I/O) universal I/O ports.
* Mono 16-bit PWM
*6 IRQ includes two external interrupts
*SPI main interface
* Three timers: Timer 1, timer 2, RTC timer
* Support spread spectrum timing to reduce EMI.
* Watchdog Timer (WDT)
* Low Voltage reset (LVR)
*PB0, PB1, PB2, and PB3 support two edge modes: rising edge trigger and falling edge trigger for wake-up function.
*IR
* Low voltage detector
* Note: VCC decoupling cap 10uF should be within 0.5 cm of IC.
* Note: The VCC decoupling cap 0.1uF should be within 0.5cm of the IC.
* note: it is forbidden to port C2 / PortC4 PortC5 PortC6 / PortC7 connected directly to the inductance components. For example, motors and coils, etc.
* Note: The VCC decoupling cap 0.1uF should be within 0.5cm of the IC.
* note: it is forbidden to port C2 / PortC4 PortC5 PortC6 / PortC7 connected directly to the inductance components. For example, motors and coils, etc.
TRSF1602A(C) Applications:
*MCU applications
* Electronic Dictionary
* Handheld games
* E-Learning Assistance (ELA)
* Electronic storybook
* Electronic Dictionary
* Handheld games
* E-Learning Assistance (ELA)
* Electronic storybook

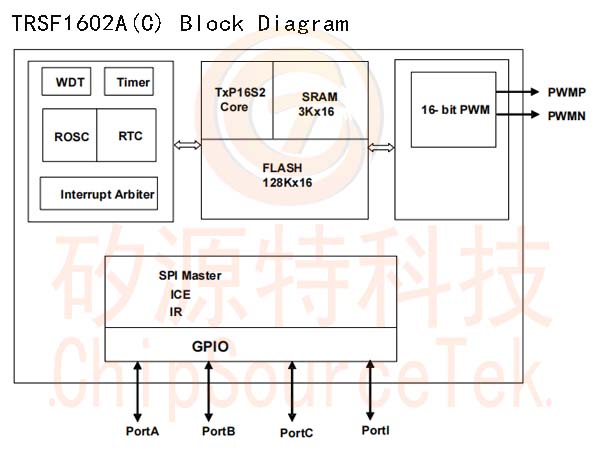

TRSF1602A(C) block diagram:

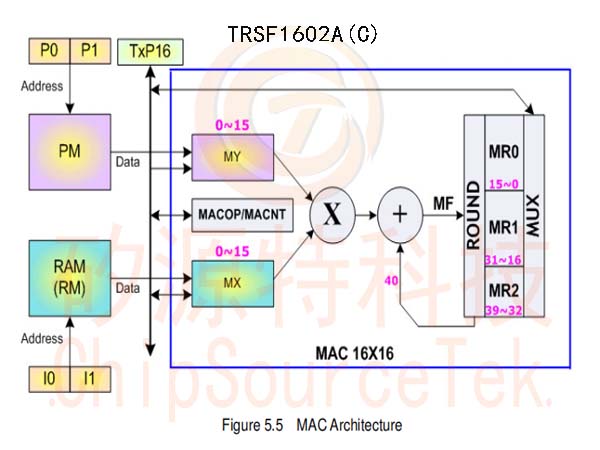

TRSF1602A(C) MAC Architecture:

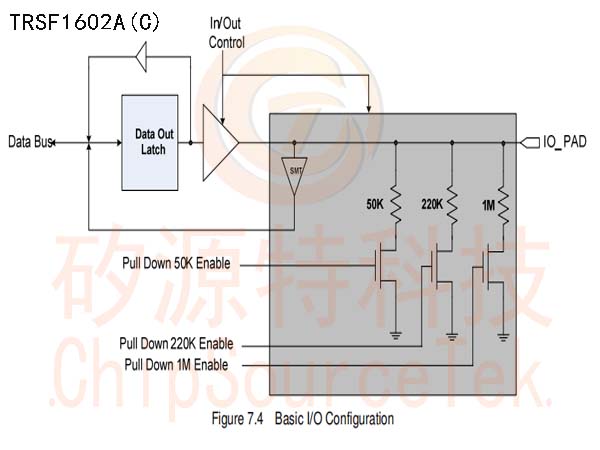

TRSF1602A(C) Basic I/O configuration:

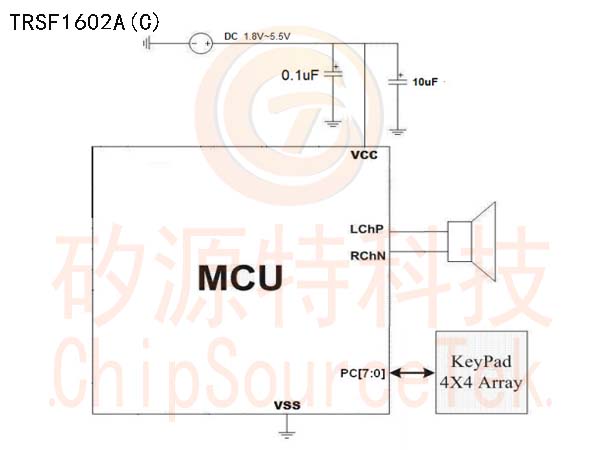

TRSF1602A(C) Application circuit and chip power circuit:
Application circuit: MONO16-bit PWM output
Attention:
1. The VCC decoupling cap 10uF should be close to the IC within 0.5cm.
2.VCC decoupling cap 0.1uF should be close to IC 0.5cm.
Attention:
1. The VCC decoupling cap 10uF should be close to the IC within 0.5cm.
2.VCC decoupling cap 0.1uF should be close to IC 0.5cm.

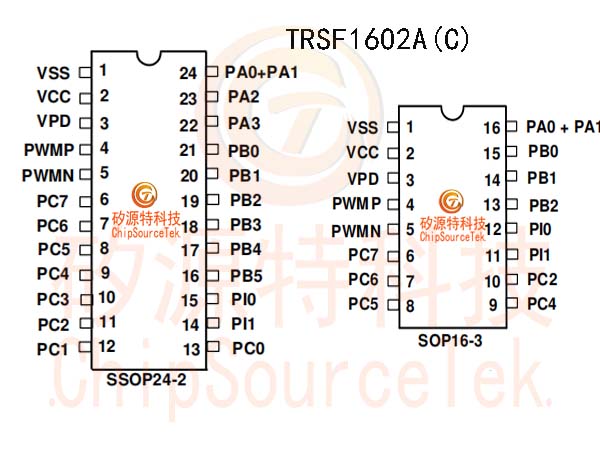

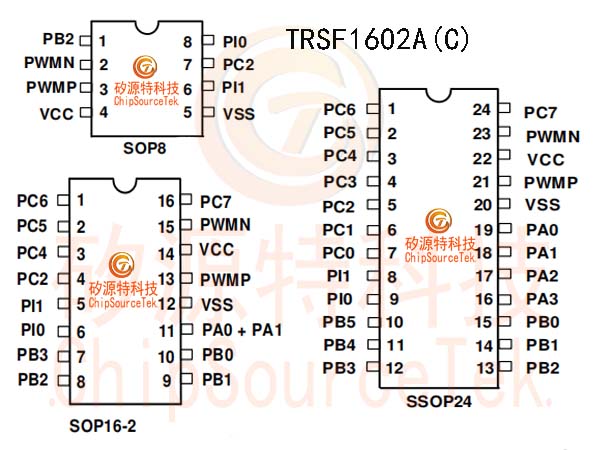

TRSF1602A(C) Package: SOP8/SOP16-2/SOP16-3/SSOP24/SSOP24-2:
