Source: WPG Author: WPG
    On September 17, 2025, WPG Holdings, a leading international semiconductor component distributor dedicated to the Asia-Pacific market, announced that its subsidiary, Youshang, has launched a synchronous step-down converter solution based on the MPS MPQ8633A chip.

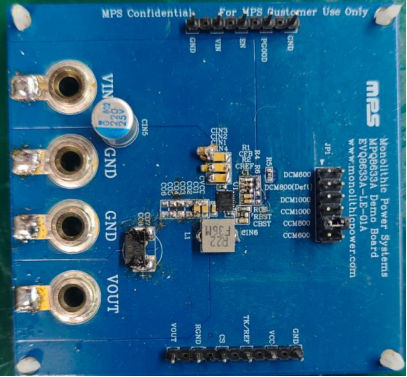

Figure 1- Display board diagram of WPG's synchronous step-down converter solution based on MPS products

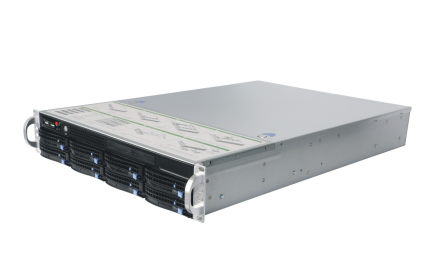

Figure 2- Scene application diagram of WPG's synchronous step-down converter solution based on MPS products

    The synchronous step-down converter solution launched this time fully demonstrates the close collaboration and profound technical accumulation between WPG and MPS in empowering the innovation of communication power supplies. In the face of the continuously evolving demands for communication infrastructure, WPG will continue to collaborate with original equipment manufacturers (Oems) to provide more advanced and efficient power solutions, empowering the construction of communication infrastructure from the underlying technology.

Core technological advantages

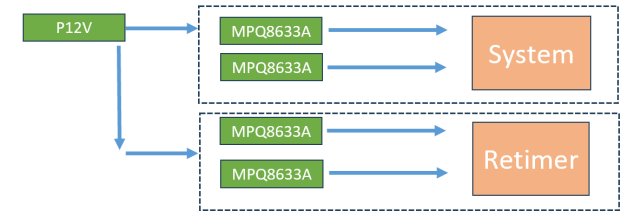

    Figure 3- Block diagram of the synchronous step-down converter solution based on MPS products by WPG
    The synchronous step-down converter solution launched this time fully demonstrates the close collaboration and profound technical accumulation between WPG and MPS in empowering the innovation of communication power supplies. In the face of the continuously evolving demands for communication infrastructure, WPG will continue to collaborate with original equipment manufacturers (Oems) to provide more advanced and efficient power solutions, empowering the construction of communication infrastructure from the underlying technology.
    Core technological advantages
    2.7V wide input voltage range:
    ? 2.7V to 16V with external 3.3V VCC bias;
    ? 4V to 16V with internal bias or external 3.3V VCC bias.
    Remote detection with differential output voltage;
    Adjustable precise current limit;
    12A output current;
    Low Rds(on) integrated power MOS;
    Proprietary switching loss reduction technology;
    Adaptive COT, achieving ultra-fast transient response;
    Stably use zero ESR output capacitors;
    0.5% reference voltage within the junction temperature range of 0℃ to 70℃;
    1% reference voltage within the junction temperature range of -40℃ to 125℃;
    The Skip or Forced CCM working mode can be selected.
    It has an excellent load regulation rate;
    During a power failure, the PGOOD active clamp is at a low level.
    Programmable soft start time, starting from 1 millisecond;
    Optional switching frequencies of 600kHz, 800kHz and 1000kHz;
    It has Non-Latch OCP, UVP, UVLO, Thermal Shutdown, and Latch-Off for OVP;
    The output can be adjusted within the range of 0.6V to 90%Vin, with a maximum of 5.5V.
    It adopts a QFN 3mm×4mm package.

Scheme specifications

    A 16V, 12A synchronous step-down converter with adjustable voltage, frequency and current limit.

Regarding WPG Holdings:
    WPG Holdings is an internationally leading semiconductor component distributor dedicated to the Asia-Pacific market. Founded in 2005, it is celebrating its 20th anniversary this year. Its headquarters is located in Taipei. It has subsidiaries including Shiping, Pinjia, Quandin and Youshang, with approximately 5,000 employees. It represents over 250 product suppliers and has 67 service locations worldwide. The turnover in 2024 reached NT $880.55 billion. WPG has established an industrial holding platform, focusing on international operational scale and local flexibility. It has long been deeply engaged in the Asia-Pacific market, with the vision of being the "preferred channel benchmark for the industry". It fully implements the core values of "teamwork, integrity, professionalism, and efficiency", and has been recognized with the "Global Distributor Excellence Award" for 24 consecutive years. At the same time, it is continuously committed to strengthening ESG sustainable development. It has been awarded international recognition for three consecutive years and received an A-level MSCI ESG rating. Facing the new manufacturing trends, WPG is committed to transforming into a Data-Driven enterprise and advocates the Logistics as a Service (LaaS) model to assist customers in jointly addressing the challenges of intelligent manufacturing. Starting from a benevolent perspective, WUDun builds trust through technology, and with the corporate mission of "Co-creating partner value and shaping the future", it hopes to work closely with the industry to form a competitive and cooperative ecosystem. 2.7V wide input voltage range:
    ? 2.7V to 16V with external 3.3V VCC bias;
    4V to 16V with internal bias or external 3.3V VCC bias.
    Remote detection with differential output voltage;
    Adjustable precise current limit;
    12A output current;
    Low Rds(on) integrated power MOS;
    Proprietary switching loss reduction technology;
    Adaptive COT, achieving ultra-fast transient response;
    Stably use zero ESR output capacitors;
    0.5% reference voltage within the junction temperature range of 0℃ to 70℃;
    1% reference voltage within the junction temperature range of -40℃ to 125℃;
    The Skip or Forced CCM working mode can be selected.
    It has an excellent load regulation rate;
    During a power failure, the PGOOD active clamp is at a low level.
    Programmable soft start time, starting from 1 millisecond;
    Optional switching frequencies of 600kHz, 800kHz and 1000kHz;
    It has Non-Latch OCP, UVP, UVLO, Thermal Shutdown, and Latch-Off for OVP;
    The output can be adjusted within the range of 0.6V to 90%Vin, with a maximum of 5.5V.

    It adopts a QFN 3mm×4mm package.

Scheme specifications
    A 16V, 12A synchronous step-down converter with adjustable voltage, frequency and current limit.
Regarding WPG Holdings:
    WPG Holdings is an internationally leading semiconductor component distributor dedicated to the Asia-Pacific market. Founded in 2005, it is celebrating its 20th anniversary this year. Its headquarters is located in Taipei. It has subsidiaries including Shiping, Pinjia, Quandin and Youshang, with approximately 5,000 employees. It represents over 250 product suppliers and has 67 service locations worldwide. The turnover in 2024 reached NT $880.55 billion. WPG has established an industrial holding platform, focusing on international operational scale and local flexibility. It has long been deeply engaged in the Asia-Pacific market, with the vision of being the "preferred channel benchmark for the industry". It fully implements the core values of "teamwork, integrity, professionalism, and efficiency", and has been recognized with the "Global Distributor Excellence Award" for 24 consecutive years. At the same time, it is continuously committed to strengthening ESG sustainable development. It has been awarded international recognition for three consecutive years and received an A-level MSCI ESG rating. Facing the new manufacturing trends, WPG is committed to transforming into a Data-Driven enterprise and advocates the Logistics as a Service (LaaS) model to assist customers in jointly addressing the challenges of intelligent manufacturing. Starting from a benevolent perspective, WUDun builds trust through technology, and with the corporate mission of "Co-creating partner value and shaping the future", it hopes to work closely with the industry to form a competitive and cooperative ecosystem.
