ChipSourceTek-TRSP(M)4081A is a powerful 4-bit microcontroller designed for applications that need to play 4-channel melodies or 4-channel ADPCM audio. Its built-in PWM direct drive circuit and PWM resolution up to 8/10/12 bits make the chip excellent in terms of audio output. In addition, the ChipSourceTek-TRSP(M)4081A integrates advanced features that enable it to meet a wide range of embedded system design needs.

### Operating voltage and frequency

    The ChipSourceTek-TRSP(M)4081A has a very wide operating voltage range from 1.5V to 5.5V, which makes it stable in a variety of power supply environments. At the same time, the chip supports two operating frequencies of 4.096MHz and 8.192MHz, and users can choose the appropriate clock frequency according to actual needs. At 4MHz operating frequency, the lowest operating voltage of the chip is 1.5V; At 8MHz, the minimum operating voltage is increased to 1.8V. This flexible operating voltage and frequency selection provides great convenience for designers.

### Memory configuration

    The ChipSourceTek-TRSP(M)4081A is equipped with rich memory resources. With program ROM (PROM) sizes of 4K or 8K words and data ROM (DROM) sizes of 248K or 240K bytes, these memory resources are sufficient to meet the needs of most embedded applications. In addition, the chip offers up to 130 half-bytes of working SRAM (static random access memory), as well as two 4-bit user registers, providing ample storage space for user programs.

### I/O port with interrupt function

    The ChipSourceTek-TRSP(M)4081A is equipped with A total of 16 software-programmable I/O ports (ports A, B, D, and E), which can be defined as input or output ports on a bit-by-bit basis, providing users with great flexibility. The PA3 port is also equipped with a 38KHz modulator, which can be used for applications such as infrared communication. In addition, the chip also supports an internal interrupt source - PWM interrupt, which allows the user to trigger the interrupt service program according to the change of the PWM signal, so as to achieve a fast response to a specific event.

### Power off mode and wake up function

    To reduce power consumption, the ChipSourceTek-TRSP(M)4081A supports HALT power-off mode. In HALT mode, most of the chip's functions are turned off, significantly reducing power consumption. When you need to resume work, ports A, B, D, and E can wake up from HALT mode to NORMAL mode and execute the wake up subroutine. The design of this power off mode and wake up function makes the chip more energy-efficient in battery-powered applications.

### System reset with watchdog timer

    ChipSourceTek-TRSP(M)4081A supports four system RESET sources: low voltage reset, power-on reset, external reset pin (PB3 is a low level active pin), and watchdog timer overflow. Among them, the watchdog timer is an important security feature, which can automatically reset the chip when the program runs abnormally, so as to avoid system crash. The WDT period is 0.128 seconds, and the user can enable or disable the watchdog timer with the option.

### Audio output with PWM mode

    ChipSourceTek-TRSP(M)4081A supports PWM mode audio output with PWM resolution up to 8/10/12 bits. This high-resolution PWM output enables the chip to produce high-quality audio signals. At the same time, users can also select different pull-down resistance values (such as 1M ohms, 50K ohms, etc.) and low voltage reset characteristics through configuration options.

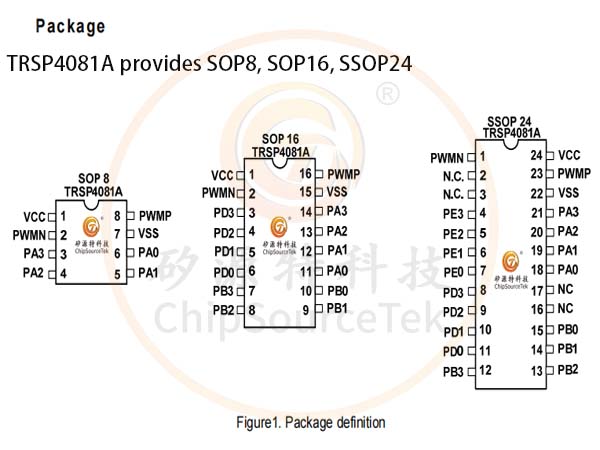

### Package and block diagram

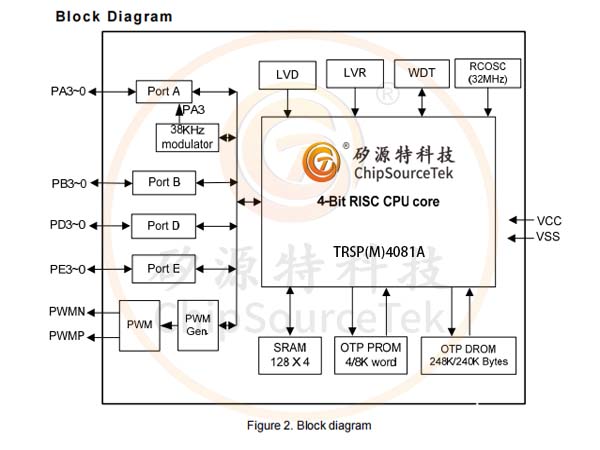

    ChipSourceTek-TRSP(M)4081A provides three encapsulation modes: SOP8, SOP16, and SSOP24. You can select an appropriate encapsulation type based on actual application scenarios. The block diagram shows the connection between the various functional modules in the chip and the signal flow direction, which provides an intuitive design reference for users.

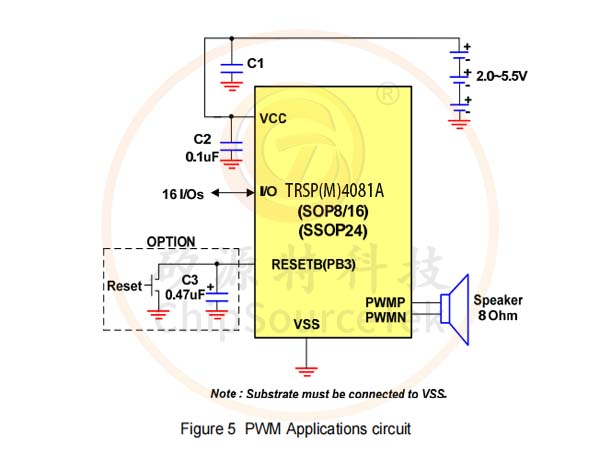

Application circuit and case analysis

    In terms of application circuits, the ChipSourceTek-TRSP(M)4081A can be combined with other peripheral devices to form a complete embedded system. For example, in audio playback applications, the chip can be connected to an audio amplifier or speaker via PWM output; In I/O control applications, you can configure I/O ports to control external devices. Here is a simple application example analysis:

   Suppose we need to design an audio playback system based on ChipSourceTek-TRSP(M)4081A. First, we need to connect the PWM output port of the chip to the audio amplifier; Then, by writing a program to control the frequency and duty cycle of the PWM signal, the desired audio signal is generated. At the same time, we can also use the I/O port of the chip to realize the response to the playback control button, such as play, pause, the previous song, the next song and other functions. When programming, we need to pay attention to the rational use of chip memory resources and interrupt function to improve the response speed and stability of the system.

    In summary, the ChipSourceTek-TRSP(M)4081A is a powerful and flexible 4-bit microcontroller. Its wide voltage range, high operating frequency, rich memory resources and many advanced features make the chip have a wide application prospect in the field of embedded system design. Whether it is audio playback, I/O control or other embedded application scenarios, the ChipSourceTek-TRSP(M)4081A provides users with outstanding performance and stable performance.
