United World Peace Group launches MPP Qi2 wireless module solution based on hot-chip semiconductor products
Date：March 25, 2025 Views：27
Source: General Assembly Author: General Assembly
On February 18, 2025, the leading international semiconductor component distributor in the Asia Pacific market, Dailun Holdings, announced that its Shiping unit launched MPP Qi2 wireless module scheme based on WB8118 chip of ConvenientPower.

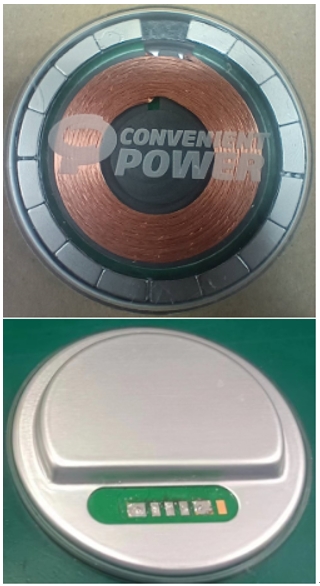

Figure 1- A display board of the MPP Qi2 wireless module solution based on an easy-to-punch semiconductor product
Qi2 is a new generation of wireless charging technology standard launched by WPC (Wireless Charging Alliance) to provide a better charging experience and pave the way for the development of future wireless charging products and enhancements. The Qi2 standard introduces MPP (Magnetic Power Profile) technology based on Apple's MagSafe magnetic charging technology in the Qi wireless charging standard. Compared with BPP and EPP, MPP adds a magnet ring to achieve the best positioning alignment. Driven by this technology, the MPP Qi2 wireless module solution is launched based on the blendable semiconductor WB8118 chip, which can accelerate the design of wireless charging products that comply with the Qi2 standard.
Figure 2- A scenario application diagram of MPP Qi2 wireless module solution based on FSD products
The WB8118 is an efficient magnetic induction wireless power transmitter IC that supports the Qi2 15W wireless fast charge and has a wide input voltage range of 3.3V~18V. The IC is compatible with wireless Power receiver (ASK) communication, has a fixed communication interface port, and built-in reliable overvoltage, overcurrent and temperature protection. Voltage regulators, full Bridges and drivers are integrated within the IC and can communicate with other devices via an I2C interface.In terms of exterior design, the WB8118 uses an environmentally friendly lead-free process and a compact QFN 24-pin package with dimensions of 3mm x 4mm x 0.55mm. In addition, the chip's rated operating temperature range is wide and can withstand extreme temperature changes from -40 ° C to 105 ° C.
Figure 3- Block diagram of the MPP Qi2 wireless module solution based on a hot-chip semiconductor product
In the field of wireless charging, blendable semiconductors play an important role. The MPP Qi2 wireless module solution launched in cooperation with the United Nations can simplify the product development certification process and accelerate the speed of new products to market, thereby helping customers to establish an advantage in the wireless charging market competition.Core technical advantages:
Support WPC 2.0 15W/ Samsung Fast charge/Apple Fast charge;
Input voltage range: 3.3V to 18V;
Integrated core, 256 bytes of internal RAM, 3 bytes of external RAM, 32KB MTP, and 32KB ROM;
High-speed architecture, 8MHz~48MHz in standard mode, PWM module 288MHz;
Integrate 2 PWMS up to 288MHz (PWMA with FSK PHY and PWMB with FSK cycle interrupt);
Low RDSON HS/LS:19mQ;
Support dead zone time adjustment;
Voltage and current mode demodulation;
Supports two I2C interfaces.
Supports two UART interfaces.
Support sleep mode and standby mode;
Over voltage/over current/over temperature protection;
RoHS standard, halogen free, lead free.
Project specification:
Input voltage: 5V/9V +/-5%;
Rated input current: 3A@5V, 2.22A@9V;
Input wave requirements: <150mVp-p;
Supported protocol types: DC, PD3.1;
Static power consumption: <0.3W;
Output protocol: Qi-BPP5W/Qi-MPP15W/7.5W Apple Fast charge;
Maximum output power: 15W (14V/1.07A);
System efficiency: 83.5% max@15W (T70);
Charging height: magnetic mobile phone 4mm, non-magnetic mobile phone 5mm;
Charging radius: magnetic mobile phone 4mm, non-magnetic mobile phone 6mm;
Protection functions: input over-voltage protection, coil over-temperature protection, chip over-temperature protection, coil peak voltage protection, inverter bridge input over-current protection, over-power protection.
