TC7258
TC7258 is an 8-channel blanking control driver IC designed for LED screen line scanning screen, which integrates a line blanking circuit, 74HC138 38 decoder and power tube.
When the TC7258 power tube is closed, the internal pulldown tube will open and absorb the residual charge in the line with a constant current, which can eliminate the phenomenon of dragging, and also improve the caterpillar phenomenon caused by LED leakage and short circuit.
When the TC7258 power tube is closed, the internal pulldown tube will open and absorb the residual charge in the line with a constant current, which can eliminate the phenomenon of dragging, and also improve the caterpillar phenomenon caused by LED leakage and short circuit.
TC7258 Description:
TC7258 is an 8-channel blanking control driver IC designed for LED screen line scanning screen, which integrates a line blanking circuit, 74HC138 38 decoder and power tube.
When the TC7258 power tube is closed, the internal pulldown tube will open and absorb the residual charge in the line with a constant current, which can eliminate the phenomenon of dragging, and also improve the caterpillar phenomenon caused by LED leakage and short circuit.
The unique patented technology of TC7258 can completely eliminate ghost phenomenon, and it is the best chip for line scanning display of LED screen on the market.
The TC7258 comes in an SOP-16 package with an integrated anti-burn power tube.
TC7258 Feature:
* Integrated 138 decoder.
* Integrated 8 power tubes, conduction impedance 110 milliohm, working current 2.5A.
* Integrated anti-burn power tube with overcurrent and short circuit protection.
* Can eliminate the dragging phenomenon on the LED.
* Improve the caterpillar phenomenon caused by LED leakage and short circuit.
* Packaged with SOP-16.
* Integrated 8 power tubes, conduction impedance 110 milliohm, working current 2.5A.
* Integrated anti-burn power tube with overcurrent and short circuit protection.
* Can eliminate the dragging phenomenon on the LED.
* Improve the caterpillar phenomenon caused by LED leakage and short circuit.
* Packaged with SOP-16.
TC7258 Applications:
* Used for 32 scans of the following display

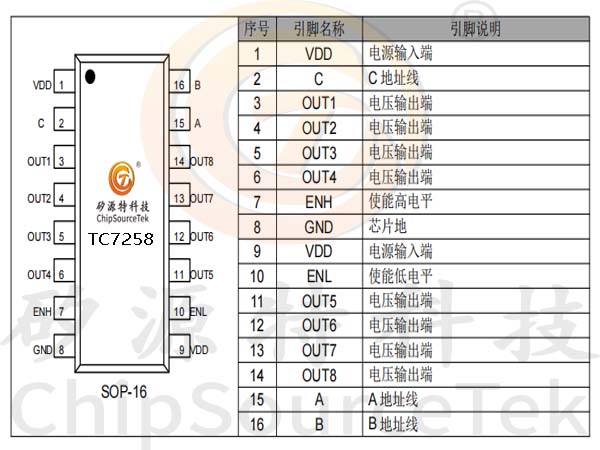

TC7258 Pin Definition and description:

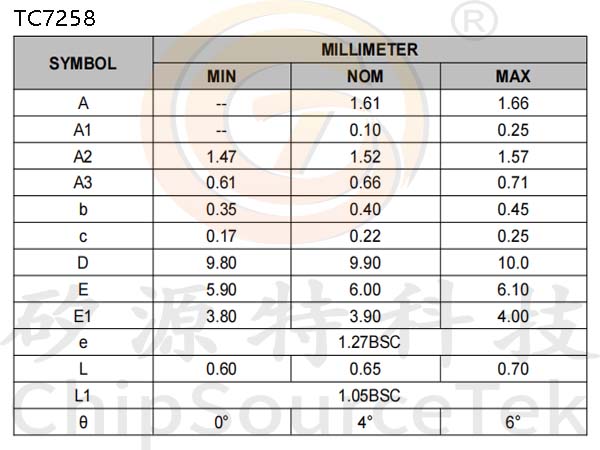

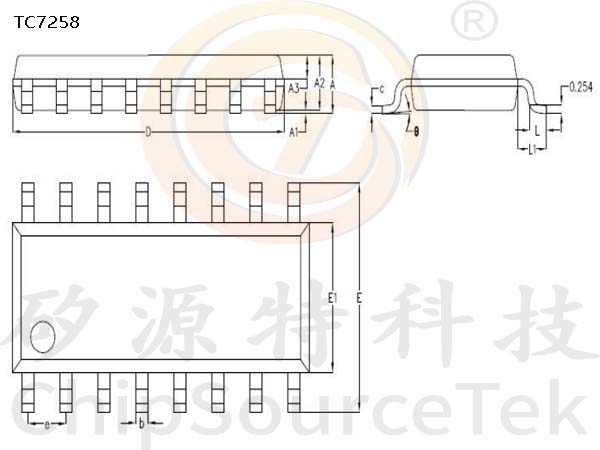

TC7258 Package information:
