AMS1117
AMS1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current.
AMS1117 offers thermal shut down function, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%.
AMS1117 offers thermal shut down function, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%.
AMS1117 General Description:
AMS1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current.
AMS1117 features a very low standby current 2mA compared to 5mA of competitor.
Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V,2.85V，3.3V, and 5V, AMS1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors.
AMS1117 offers thermal shut down function, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%.
AMS1117 is available in SOT-223, TO-252 power package.
AMS1117 Features:
Output current is 1A
Range of operation input voltage: 15V
Line regulation: 0.03%/V (typ.)
Standby current: 2mA (typ.)
Load regulation: 0.2%/A (typ.)
Environment Temperature: -20℃~85℃
AMS1117 Applications:
Power Management for Computer Mother Board, Graphic Card
LCD Monitor and LCD TV
DVD Decode Board
ADSL Modem
Post Regulators for Switching Supplies

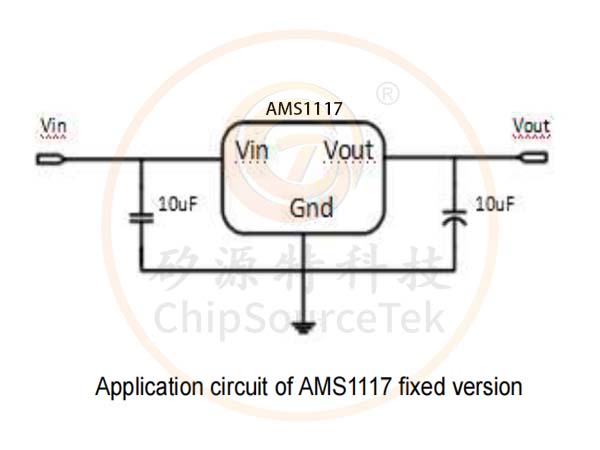

AMS1117 Typical Application:

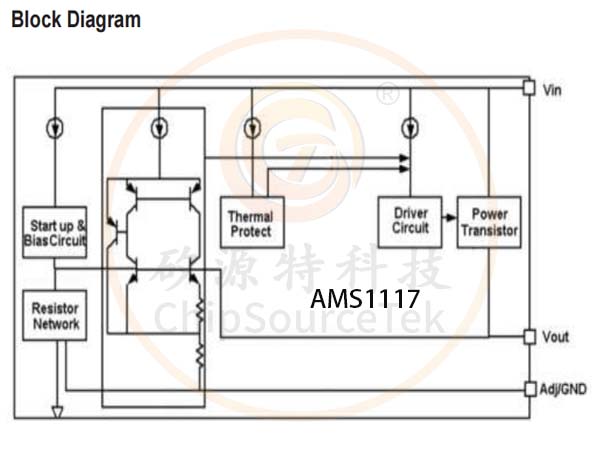

AMS1117 Block Diagram:

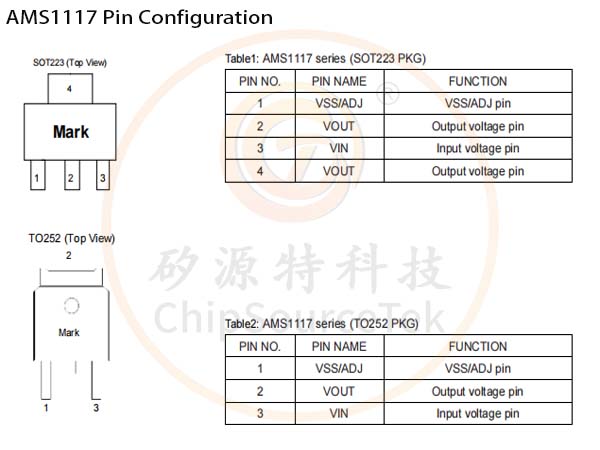

AMS1117 Pin Configuration:
AMS1117 is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A load current.
AMS1117 features a very low standby current 2mA compared to 5mA of competitor.
Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V,2.85V，3.3V, and 5V, AMS1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors.
AMS1117 offers thermal shut down function, to assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1%.
AMS1117 is available in SOT-223, TO-252 power package.
AMS1117 Features:
Output current is 1A
Range of operation input voltage: 15V
Line regulation: 0.03%/V (typ.)
Standby current: 2mA (typ.)
Load regulation: 0.2%/A (typ.)
Environment Temperature: -20℃~85℃
AMS1117 Applications:
Power Management for Computer Mother Board, Graphic Card
LCD Monitor and LCD TV
DVD Decode Board
ADSL Modem
Post Regulators for Switching Supplies
AMS1117 Typical Application:
