LTK64004
The LTK64004 comes with output short circuit protection, which will not damage the circuit for a long time. The LTK64004 uses the standard SOT23-6L package.
LTK64004 Description:
The LTK64004 is a low noise switching capacitor voltage doubler. It produces a fixed 5V output voltage with an input voltage range of 2.5V to 5V. With its simple peripheral circuitry (one flight capacitor and two small bypass capacitors in VIN and VOUT), the LTK64004 is ideal for small, battery-powered applications. The LTK64004 has an overheat protection function, which can turn off the output protection chip in a short time when the chip is too warm.
The LTK64004 comes with output short circuit protection, which will not damage the circuit for a long time. The LTK64004 uses the standard SOT23-6L package.LTK64004 Features:
Input voltage range :2.5V-5V
Fixed output voltage :5V(±50mV)
Maximum input current :300mA
Low noise constant operating frequency
Inductance free
Output short-circuit protection
Overtemperature protection
Turn-off current <1uA
LTK64004 Product Application:
Smart card reader
Lithium battery backup power supply
3V to 5V conversion
PCMCIA local 5V power supply
Bluetooth speaker

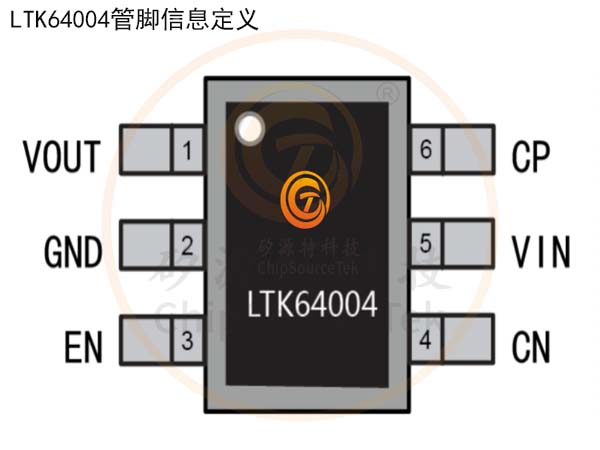

LTK64004 package:
| Chip type | Package type | Package size |
| LTK64004 | SOT23-6 |

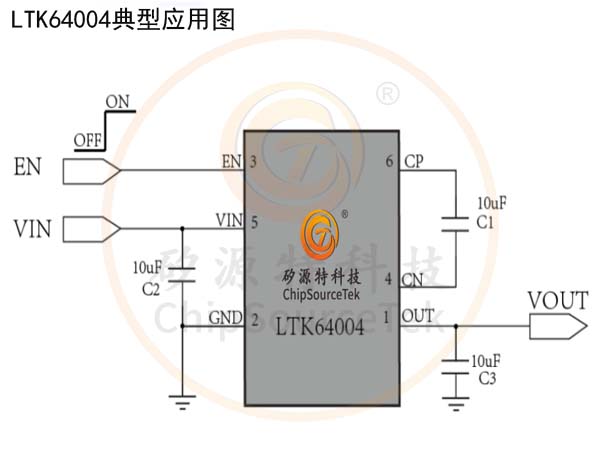

LTK64004 Typical application diagram:
