HT7181
The HT7181 is a high power asynchronous boost converter with an integrated 20mΩ power switch tube to provide an efficient, small size solution for portable systems.
With a wide input voltage range of 2.7V to 16V, the HT7181 supports applications using single or two lithium batteries, or 12V lead-acid batteries. The device has a 14A switching current capability and is capable of delivering output voltages up to 16.8V.
The HT7181 also supports programmable soft start, as well as adjustable switching peak current limits. The HT7181 also supports two different tr/tf to accommodate different EMI and efficiency needs.
In addition, the device provides 18V output overvoltage protection and thermal shutdown protection.
With a wide input voltage range of 2.7V to 16V, the HT7181 supports applications using single or two lithium batteries, or 12V lead-acid batteries. The device has a 14A switching current capability and is capable of delivering output voltages up to 16.8V.
The HT7181 also supports programmable soft start, as well as adjustable switching peak current limits. The HT7181 also supports two different tr/tf to accommodate different EMI and efficiency needs.
In addition, the device provides 18V output overvoltage protection and thermal shutdown protection.
HT7181 Description:
HT7181 Features:
* Input voltage range: 2.7V-16V
* Output voltage range: up to 16.8V
* Fixed switching frequency: 360kHz
* Programmable peak current: 14A
* High conversion efficiency:
HT7181 Applications:
* Wireless speaker
* Portable speaker
* Mobile power supply
* Charging equipment
*USB TYPE-C power transmission
* Pull rod speaker
* Tablets, laptops
*POS terminal
HT7181 Pin features:
HT7181 Typical circuit diagram:
The HT7181 is a high power asynchronous boost converter with an integrated 20mΩ power switch tube to provide an efficient, small size solution for portable systems.
With a wide input voltage range of 2.7V to 16V, the HT7181 supports applications using single or two lithium batteries, or 12V lead-acid batteries. The device has a 14A switching current capability and is capable of delivering output voltages up to 16.8V.
The HT7181 also supports programmable soft start, as well as adjustable switching peak current limits. The HT7181 also supports two different tr/tf to accommodate different EMI and efficiency needs.
In addition, the device provides 18V output overvoltage protection and thermal shutdown protection.
With a wide input voltage range of 2.7V to 16V, the HT7181 supports applications using single or two lithium batteries, or 12V lead-acid batteries. The device has a 14A switching current capability and is capable of delivering output voltages up to 16.8V.
The HT7181 also supports programmable soft start, as well as adjustable switching peak current limits. The HT7181 also supports two different tr/tf to accommodate different EMI and efficiency needs.
In addition, the device provides 18V output overvoltage protection and thermal shutdown protection.
HT7181 Features:
* Input voltage range: 2.7V-16V
* Output voltage range: up to 16.8V
* Fixed switching frequency: 360kHz
* Programmable peak current: 14A
* High conversion efficiency:
94% (VIN = 7.2V, VOUT=9.3V, IOUT =1.5A)
90% (VIN = 7.2V, VOUT=9.3V, IOUT =7A)
93% (VIN = 7.2V, VOUT=12V, IOUT =1.5A)
90% (VIN = 7.2V, VOUT=12V, IOUT =5.5A)
90% (VIN = 3.6V, VOUT=12V, IOUT =1A)
85% (VIN = 3.6V, VOUT=12V, IOUT =2.2A)
* Low shutdown power consumption, shutdown current 1uA
* Two tr/tf modes are supported for EMI challenges
* Programmable soft boot
* Output overvoltage (18V), heat off and other protection
*SOP8L-PP lead-free package
* Two tr/tf modes are supported for EMI challenges
* Programmable soft boot
* Output overvoltage (18V), heat off and other protection
*SOP8L-PP lead-free package
HT7181 Applications:
* Wireless speaker
* Portable speaker
* Mobile power supply
* Charging equipment
*USB TYPE-C power transmission
* Pull rod speaker
* Tablets, laptops
*POS terminal

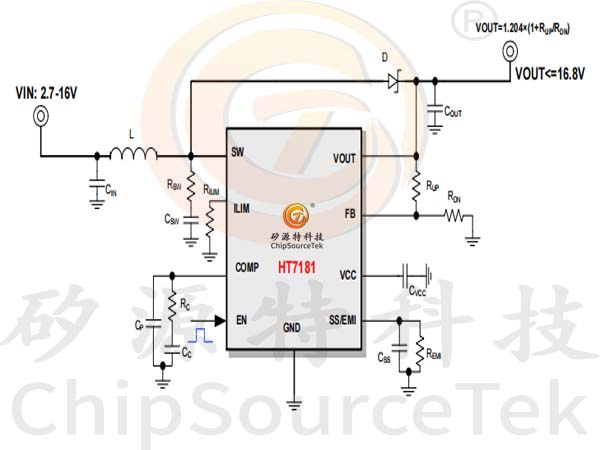

HT7181 Typical application:

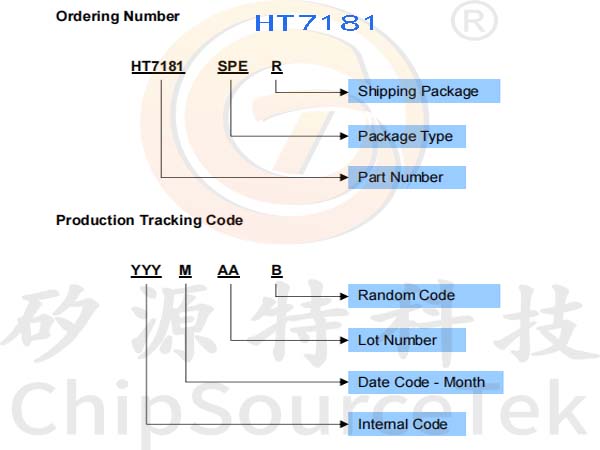

HT7181 Ordering Information:
HT7181 Pin configuration:
Model number | encapsulation | Screen printing | Operating temperature range | Minimum package |
HT7181SPER | SOP8L-PP | HT7181 YYYMAAB1 | -40℃～85℃ | 500pcs/ disk |
HT7181SPET | SOP8L-PP | HT7181 YYYMAAB | -40℃～85℃ | 100pcs/ tube |

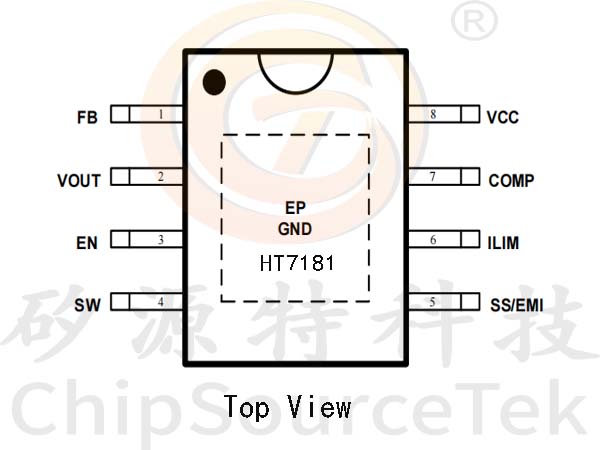

HT7181 Pin configuration:

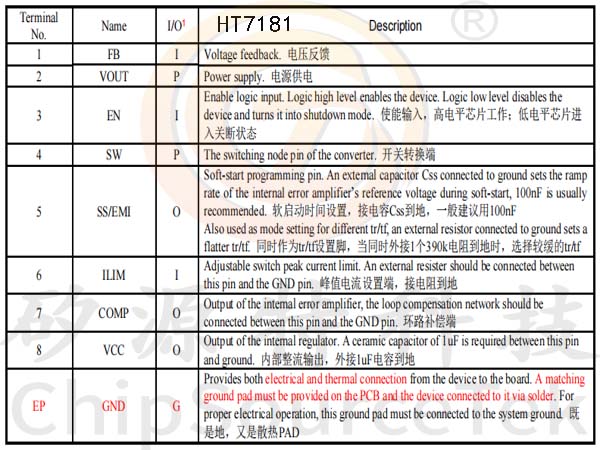

HT7181 Pin features:

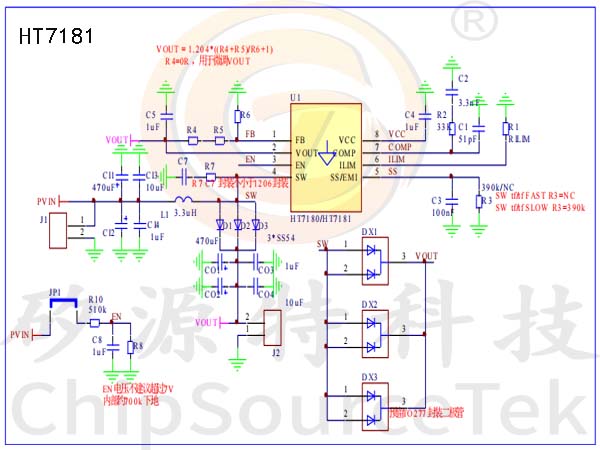

HT7181 Typical circuit diagram:
