The RY8320 is a high frequency, synchronous, rectifier, buck switching mode converter with internal power MOSFETs. It offers a very compact solution that delivers 2A continuous current over a wide input power range with excellent load and line regulation.

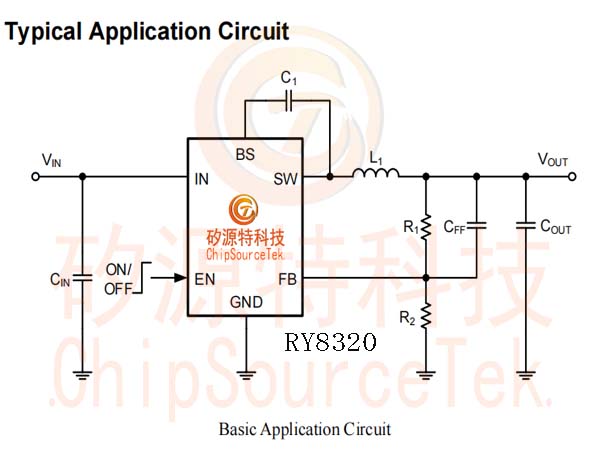

    The RY8320 requires a minimum number of easy-to-use external components and is available in a space-saving SOT23-6 package.

Wide 4.5V to 30V working input range
2A Continuous output current
500KHz switching frequency
Output voltage ranges from 0.6V to 5V
Short-circuit protection in hiccup mode
Built-in overcurrent limit
Built-in overvoltage protection
Light load efficient PFM mode
Internal soft start
110mΩ/70mΩ Low RDS (ON) internal power MOSFETs
Output can be adjusted from 0.6V
No need for Schottky diodes
Integrated internal compensation
Thermal shutoff

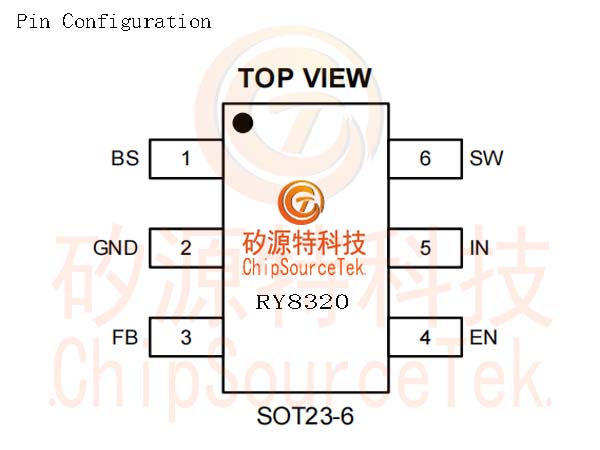

Available in SOT23-6 package
-40°C to +85°C temperature range

Digital set-top box
Tablet Computer (Tablet computer)
Flat screen TV and monitor
Wi-Fi router /AP
Digital Video Recorder (DVR)
Portable media player
Cable modem /XDSL
General purpose
