HT7179
The HT7179 is a high-power density, asynchronous boost converter with a 20mΩ power switch to provide a high efficiency and small size solution in portable systems.
The HT7179 has wide input voltage range from 2.7 V to 25 V to support applications with single cell, two cell Lithium batteries and 12V lead-acid batteries. The device has 15A switch current capability and can provide an output voltage up to 26.8V.
The HT7179 also implements a programmable soft-start function and an adjustable switching peak current limit function. HT7179 integrates two modes with different tr/tf to balance different requirements of EMI and efficiency.
The HT7179 has wide input voltage range from 2.7 V to 25 V to support applications with single cell, two cell Lithium batteries and 12V lead-acid batteries. The device has 15A switch current capability and can provide an output voltage up to 26.8V.
The HT7179 also implements a programmable soft-start function and an adjustable switching peak current limit function. HT7179 integrates two modes with different tr/tf to balance different requirements of EMI and efficiency.
HT7179 Description：
The HT7179 is a high-power density, asynchronous boost converter with a 20mΩ power switch to provide a high efficiency and small size solution in portable systems.
The HT7179 has wide input voltage range from 2.7 V to 25 V to support applications with single cell, two cell Lithium batteries and 12V lead-acid batteries. The device has 15A switch current capability and can provide an output voltage up to 26.8V.
The HT7179 also implements a programmable soft-start function and an adjustable switching peak current limit function. HT7179 integrates two modes with different tr/tf to balance different requirements of EMI and efficiency.
In addition, the device provides 28V output overvoltage protection, and thermal shutdown protection.
HT7179 Features:
Input voltage range: 2.7V-25V
Output voltage range: up to 26.8V
Fixed switching frequency: 350kHz
Programmable peak current: up to 15A
High conversion efficiency:
Output voltage range: up to 26.8V
Fixed switching frequency: 350kHz
Programmable peak current: up to 15A
High conversion efficiency:
95% (PVIN = 12V, VOUT=25V, IOUT =2A)
94% (PVIN = 12V, VOUT=25V, IOUT =4.5A)
93% (PVIN = 7.2V, VOUT=12V, IOUT =1.5A)
90% (PVIN = 7.2V, VOUT=12V, IOUT =5A)
96% (PVIN = 12V, VOUT=18V, IOUT =1.5A)
95% (PVIN = 12V, VOUT=18V, IOUT =6A)
Low shutdown power consumption, shutdown current 1uA
Two tr/tf modes are supported for EMI challenges
Programmable soft boot
Output overvoltage (28V), heat off and other protection
ESOP16, QFN3×3.5-20L lead-free package
Two tr/tf modes are supported for EMI challenges
Programmable soft boot
Output overvoltage (28V), heat off and other protection
ESOP16, QFN3×3.5-20L lead-free package
HT7179 Applications:
Wireless speaker
Portable speaker
Mobile power supply
Charging equipment
USB TYPE-C power transmission
Pull rod speaker
Tablets, laptops
POS terminal
Portable speaker
Mobile power supply
Charging equipment
USB TYPE-C power transmission
Pull rod speaker
Tablets, laptops
POS terminal

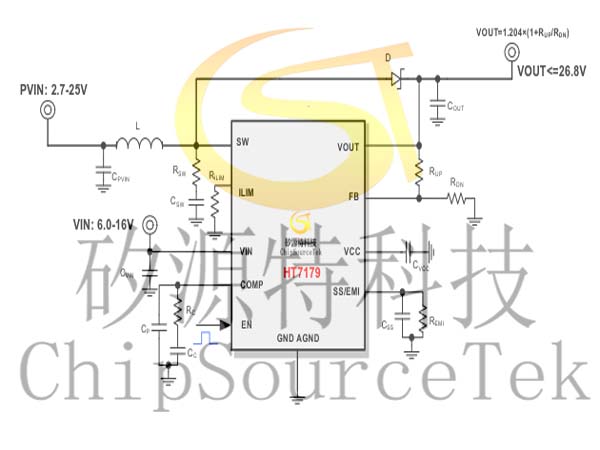

HT7179 Typical application circuit:

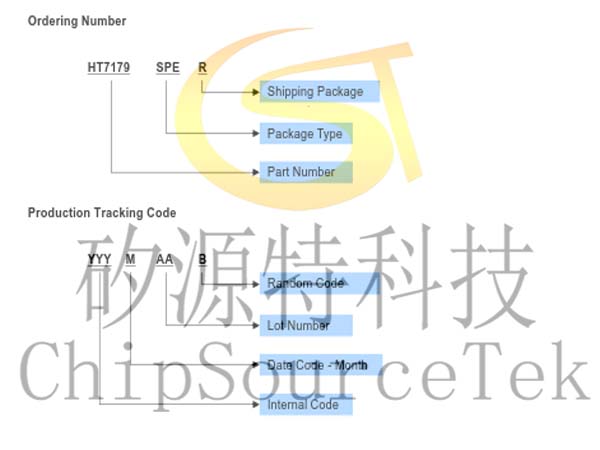

HT7179 Ordering Information:
Ordering Number | Package Type | Marking | Operating Temperature Range | Shipping Package / MOQ |
HT7179SPER | ESOP16 | HT7179 YYYMAAB1 | -40℃～85℃ | Tape and Reel / 2500pcs |
HT7179SPET | ESOP16 | HT7179 YYYMAAB | -40℃～85℃ | Tube / 50pcs |
HT7179DNR | QFN3.5×4.5-20L | HT7179 YYYMAAB | -40℃～85℃ | Tape and Reel / 5000PCS |

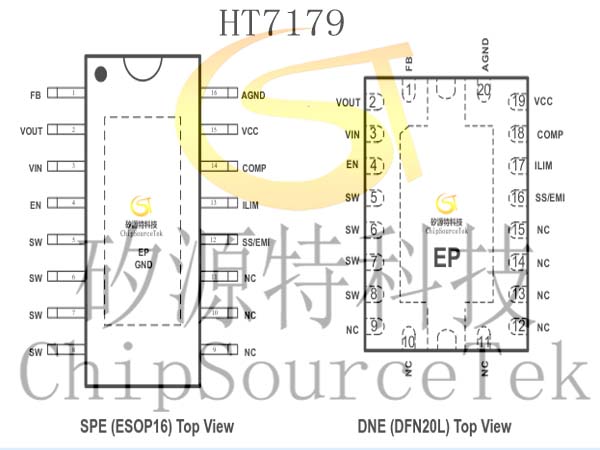

HT7179 Pin configuration:

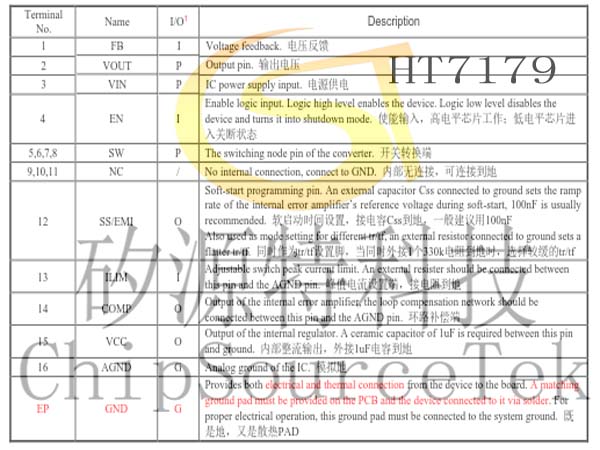

HT7179 Pin description:
