ME6203
The ME6203 series is a high voltage input linear regulator manufactured in CMOS technology. This series of regulator has built-in fixed reference voltage source, error correction circuit and phase compensation circuit, and built-in short circuit protection circuit. The output voltage is set by internal feedback resistance, which can be set between 1.8V and 12V, and the output accuracy is ±1% (VOUT=3.3V, 5.0V) and ±2% (other voltage values).
ME6203 Description:
The ME6203 series is a high voltage input linear regulator manufactured in CMOS technology. This series of regulator has built-in fixed reference voltage source, error correction circuit and phase compensation circuit, and built-in short circuit protection circuit. The output voltage is set by internal feedback resistance, which can be set between 1.8V and 12V, and the output accuracy is ±1% (VOUT=3.3V, 5.0V) and ±2% (other voltage values).
ME6203 Features:
Maximum operating voltage: 40V
Output voltage range: 1.8V~12V(step size 0.1V)
High precision:
±1% (VOUT =3.3V, 5.0V)
±2% (other voltage values)
Very low static current (Typ.= 3μA)
Good input stability: Typ.0.1% /V
Operating temperature range: -40℃~85℃
Short circuit protection limited current: 20mA
Low temperature adjustment factor
Output voltage range: 1.8V~12V(step size 0.1V)
High precision:
±1% (VOUT =3.3V, 5.0V)
±2% (other voltage values)
Very low static current (Typ.= 3μA)
Good input stability: Typ.0.1% /V
Operating temperature range: -40℃~85℃
Short circuit protection limited current: 20mA
Low temperature adjustment factor
ME6203 Application:
Electronic lock
Electronic scale
Reference voltage
Battery powered equipment
Alarm system power supply
Electronic scale
Reference voltage
Battery powered equipment
Alarm system power supply
ME6203 Package form:
3-pin SOT89-3 、SOT23-3 、TO92

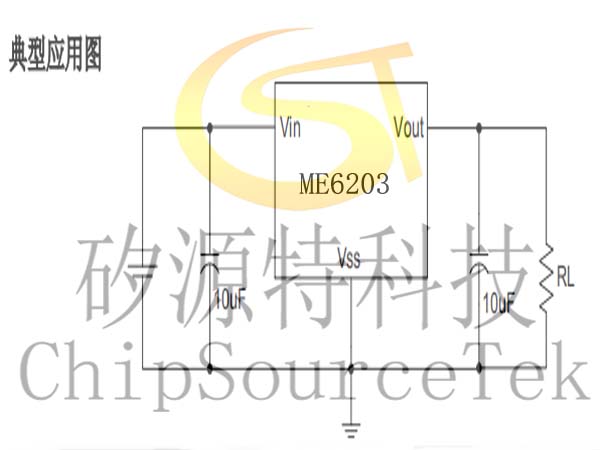

Typical application diagram of ME6203:
ME6203 Purchase Guide:
Product model | Product description |
ME6203A18M3G | VOUT =1.8V±2%；Package：SOT23-3 |
ME6203A18PG | VOUT =1.8V±2%；Package：SOT89-3 |
ME6203A25M3G | VOUT =2.5V±2%；Package：SOT23-3 |
ME6203A25PG | VOUT =2.5V±2%；Package：SOT89-3 |
ME6203A30M3G | VOUT =3.0V±2%；Package：SOT23-3 |
ME6203A30PG | VOUT =3.0V±2%；Package：SOT89-3 |
ME6203A33M3G | VOUT =3.3V±1%；Package：SOT23-3 |
ME6203A33PG | VOUT =3.3V±1%；Package：SOT89-3 |
ME6203A33TG | VOUT =3.3V±1%；Package：TO92 |
ME6203A36M3G | VOUT =3.6V±2%；Package：SOT23-3 |
ME6203A36PG | VOUT =3.6V±2%；Package：SOT89-3 |
ME6203A36TG | VOUT =3.6V±2%；Package：TO92 |
ME6203A44M3G | VOUT =4.4V±2%；Package：SOT23-3 |
ME6203A44PG | VOUT =4.4V±2%；Package：SOT89-3 |
ME6203A50M3G | VOUT =5.0V±1%；Package：SOT23-3 |
ME6203A50PG | VOUT =5.0V±1%；Package：SOT89-3 |
ME6203A50TG | VOUT =5.0V±1%；Package：TO92 |

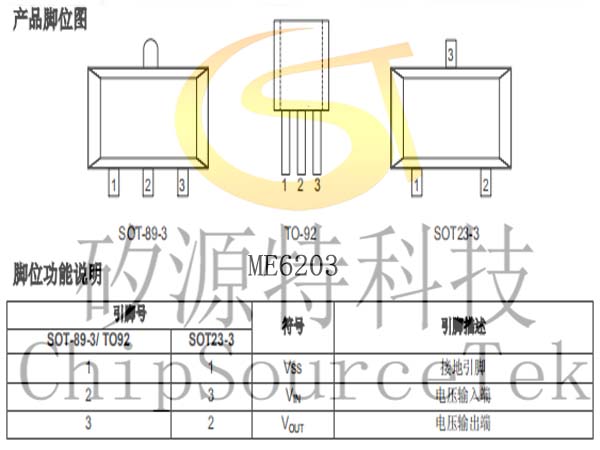

ME6203 Product foot map:

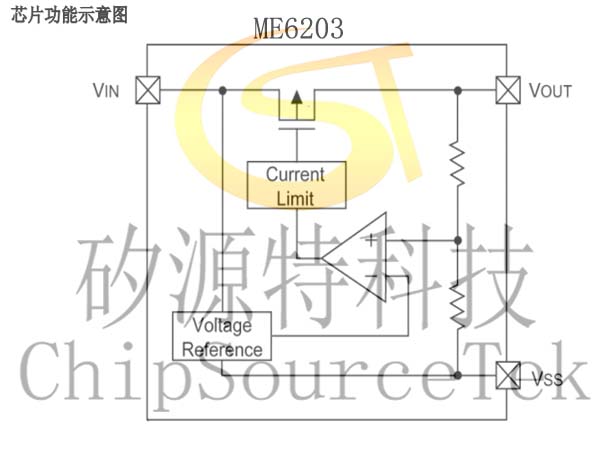

ME6203 chip function diagram:

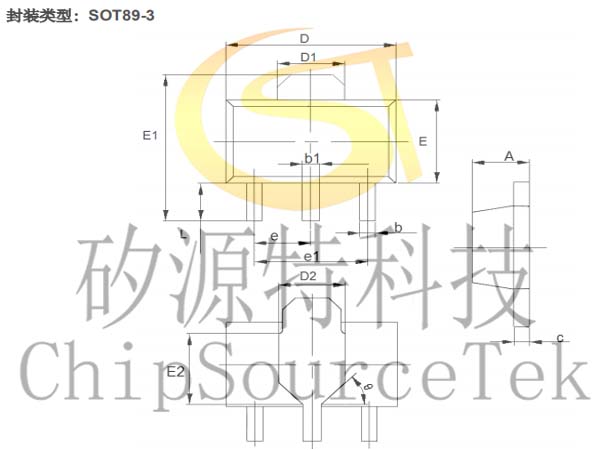

ME6203 Package Information:
