ME6219
The ME6219 is a 300mA, ultra-low noise, ultra-fast response LDO linear regulator.
The ME6219 series is a high precision, low noise, ultra-fast response low voltage difference linear regulator manufactured in CMOS technology. This series of regulators has built-in fixed reference voltage source, error correction circuit, current limiting circuit, phase compensation circuit and low internal resistance MOSFETs to achieve high ripple suppression, low output noise, ultra-fast response to low voltage difference performance.
The ME6219 series is a high precision, low noise, ultra-fast response low voltage difference linear regulator manufactured in CMOS technology. This series of regulators has built-in fixed reference voltage source, error correction circuit, current limiting circuit, phase compensation circuit and low internal resistance MOSFETs to achieve high ripple suppression, low output noise, ultra-fast response to low voltage difference performance.
ME6219 Description：
The ME6219 is a 300mA, ultra-low noise, ultra-fast response LDO linear regulator.
The ME6219 series is a high precision, low noise, ultra-fast response low voltage difference linear regulator manufactured in CMOS technology. This series of regulators has built-in fixed reference voltage source, error correction circuit, current limiting circuit, phase compensation circuit and low internal resistance MOSFETs to achieve high ripple suppression, low output noise, ultra-fast response to low voltage difference performance.
The ME6219 is compatible with ceramic capacitors that are smaller in volume than tantalum capacitors, and does not require the use of 0.1μF By-pass capacitors, which is more space-saving. Its excellent high-speed response can cope with load current fluctuations, so it is particularly suitable for use in handheld and RF products. The output can be turned off through the CE pin on the control chip, and the power consumption after the shutdown is only less than 1μA.
The ME6219 series is a high precision, low noise, ultra-fast response low voltage difference linear regulator manufactured in CMOS technology. This series of regulators has built-in fixed reference voltage source, error correction circuit, current limiting circuit, phase compensation circuit and low internal resistance MOSFETs to achieve high ripple suppression, low output noise, ultra-fast response to low voltage difference performance.
The ME6219 is compatible with ceramic capacitors that are smaller in volume than tantalum capacitors, and does not require the use of 0.1μF By-pass capacitors, which is more space-saving. Its excellent high-speed response can cope with load current fluctuations, so it is particularly suitable for use in handheld and RF products. The output can be turned off through the CE pin on the control chip, and the power consumption after the shutdown is only less than 1μA.
ME6219 Features:
High precision output voltage: ±2%
Output voltage: 1.2V~5.0V
Operating voltage: 2.0V ~ 6.5V
Static current (Typ.=65μA)
Very low turn-off current (Typ.=0.1μA)
Strong carrying capacity: Iout=300mA when Vin=4.3V and Vout=3.3V
High ripple rejection ratio 62dB@1KHz
Good input stability: Typ.0.05%/V
Low output noise 50μVrms
Output voltage: 1.2V~5.0V
Operating voltage: 2.0V ~ 6.5V
Static current (Typ.=65μA)
Very low turn-off current (Typ.=0.1μA)
Strong carrying capacity: Iout=300mA when Vin=4.3V and Vout=3.3V
High ripple rejection ratio 62dB@1KHz
Good input stability: Typ.0.05%/V
Low output noise 50μVrms
ME6219 Applications:
Cell phone
Cordless telephone equipment
camera
Bluetooth and other RF products
Cordless telephone equipment
camera
Bluetooth and other RF products
ME6219 Package type:
3-pin SOT-23-3， SOT-89-3
5-pin SOT-23-5

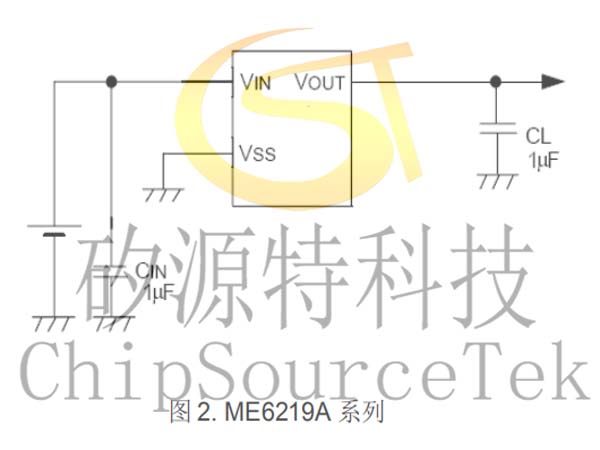

ME6219 Typical application circuit diagram:

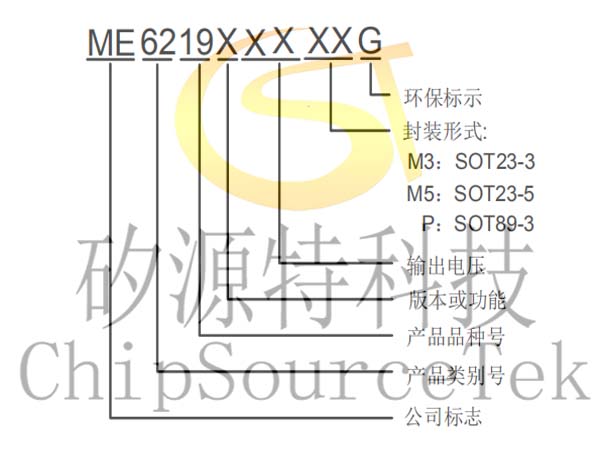

ME6219 Purchase Guide:
Product model | Output voltage value | encapsulation | CE end | peculiarity |
ME6219A12M3G | VOUT =1.2V | SOT23-3 | There is no | |
ME6219A12PG | VOUT =1.2V | SOT89-3 | ||
ME6219C33M5G | VOUT =3.3V | SOT23-5 | There are | Output on or off control |
At present, the voltage of this product is: 1.2V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V.
For other voltage values or package forms, please contact our sales staff
For other voltage values or package forms, please contact our sales staff

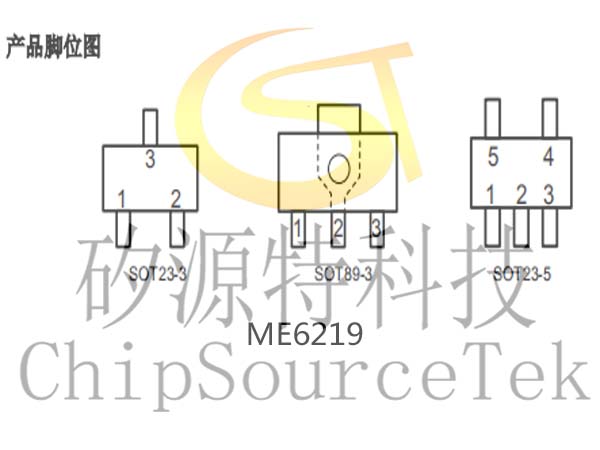

ME6219 foot map:
ME6219 pin position function description:
ME6219A series

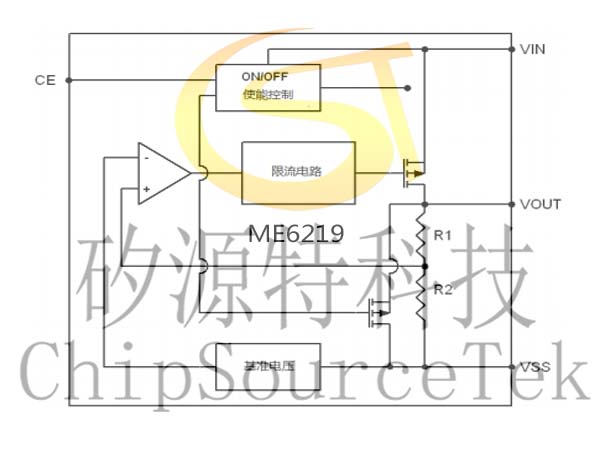

ME6219 functional block diagram:
ME6219A series
Pin number | symbol | Pin description | |
SOT-23-3 | SOT-89-3 | ||
1 | 1 | Vss | Ground pin |
2 | 3 | Vout | Voltage output terminal |
3 | 2 | Vin | Voltage input |
ME6219C 系列
Pin number | symbol | Pin description |
SOT-23-5 | ||
1 | Vin | Voltage input |
2 | Vss | Ground pin |
3 | CE | Enable end |
4 | NC | empty |
5 | Vout | Voltage output terminal |
ME6219 functional block diagram:
