IP5305
IP5305 is a multifunctional power management SOC that integrates a boost converter, lithium battery charging management, and battery level indication, providing a complete power solution for mobile power banks.
The high integration and rich functionality of IP5305 enable it to be applied with minimal peripheral components, effectively reducing the overall size of the solution and lowering BOM costs.
The high integration and rich functionality of IP5305 enable it to be applied with minimal peripheral components, effectively reducing the overall size of the solution and lowering BOM costs.
IP5305 Description：
IP5305 is a multifunctional power management SOC that integrates a boost converter, lithium battery charging management, and battery level indication, providing a complete power solution for mobile power banks.
The high integration and rich functionality of IP5305 enable it to be applied with minimal peripheral components, effectively reducing the overall size of the solution and lowering BOM costs.
IP5305 only requires one inductor to achieve voltage reduction and boost functions. The DC-DC converter operates at 350KHz and can support low-cost inductors and capacitors.
The synchronous boost system of IP5305 provides a maximum output current of 1.0A and a conversion efficiency of up to 91%. When unloaded, it automatically enters sleep mode and the static current drops to 50uA.
IP5305 adopts switch charging technology, providing a maximum current of 1.2A and a charging efficiency of up to 93%. Built in IC temperature and input voltage intelligent adjustment of charging current.
IP5305 supports 1, 2, 3, and 4 LED power display.
IP5305 adopts eSOP8L packaging.
IP5305 adopts eSOP8L packaging.
IP5305 Features：
Synchronous switch charging and discharging
1.0A synchronous boost conversion, 1.2A synchronous switch charging
Boost efficiency up to 91%
Charging efficiency up to 93%
Built in power path management, supporting simultaneous charging and discharging
Charge
1.0A synchronous boost conversion, 1.2A synchronous switch charging
Boost efficiency up to 91%
Charging efficiency up to 93%
Built in power path management, supporting simultaneous charging and discharging
Charge
Adaptive charging current regulation, matching all adapters
Charging voltage accuracy: ± 0.5%
Supports 4.20/4.30/4.35/4.40V batteries
Battery level display
Support 4, 3, 2, and 1 LED power display
Rich functionality
Press the button to power on
Charging voltage accuracy: ± 0.5%
Supports 4.20/4.30/4.35/4.40V batteries
Battery level display
Support 4, 3, 2, and 1 LED power display
Rich functionality
Press the button to power on
Built in lighting driver
Automatically detect phone insertion and removal
low power consumption
Intelligent load recognition, automatic standby mode
Standby power consumption is less than 100 µ A
BOM Minimalist
Automatically detect phone insertion and removal
low power consumption
Intelligent load recognition, automatic standby mode
Standby power consumption is less than 100 µ A
BOM Minimalist
Built in power MOS, single inductor for charging and discharging
Single layer PCB
Multiple protection, high reliability
Output overcurrent, overvoltage, and short-circuit protection
Input overvoltage, overcharge, overdischarge, overcurrent discharge protection
Whole machine over temperature protection
ESD 4KV, instantaneous withstand voltage 11V
Single layer PCB
Multiple protection, high reliability
Output overcurrent, overvoltage, and short-circuit protection
Input overvoltage, overcharge, overdischarge, overcurrent discharge protection
Whole machine over temperature protection
ESD 4KV, instantaneous withstand voltage 11V
IP5305 Applications：
Mobile power bank/power bank
Portable devices such as mobile phones and tablets
Portable devices such as mobile phones and tablets
.jpg)

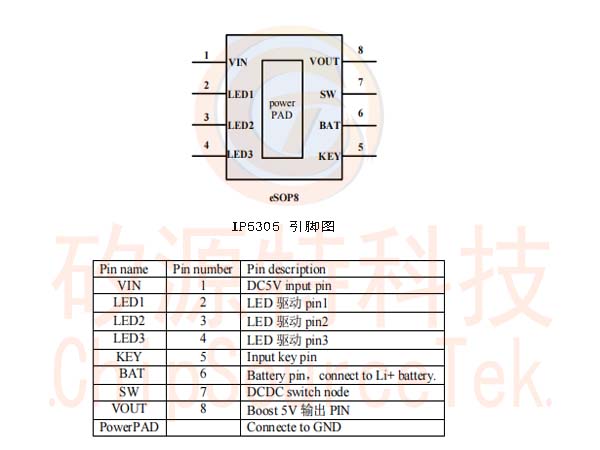

IP5305 Pin definition：

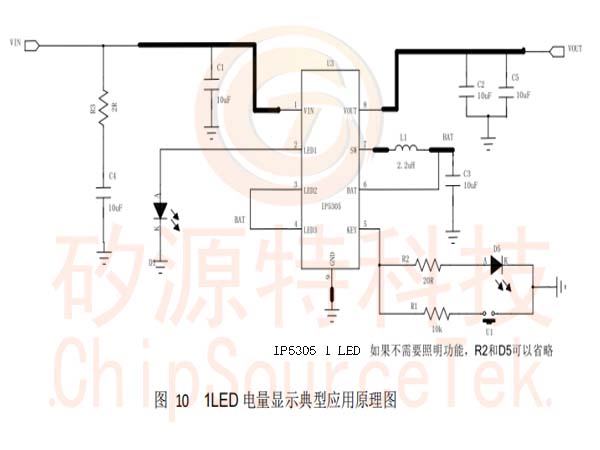

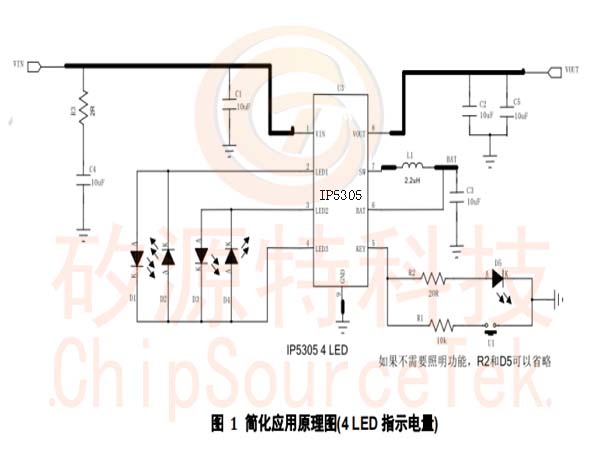

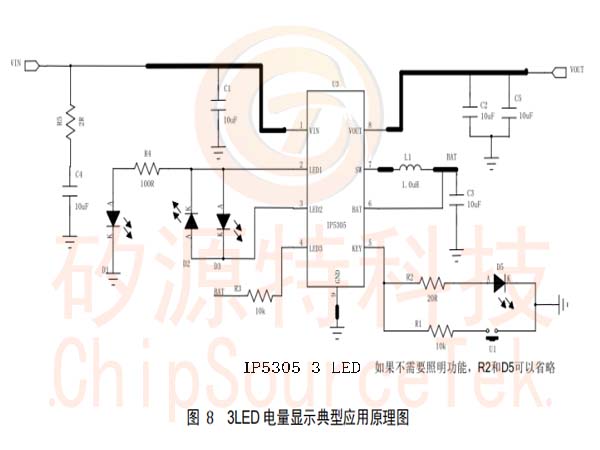

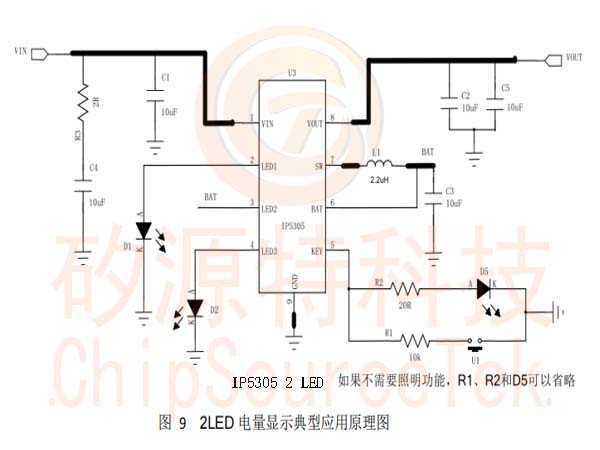

IP5305 Typical application schematic：
