IP2369 Description:
    IP2369 is a lithium battery charging and discharging management chip that integrates input/output fast charging protocols such as AFC/FCP/PD2.0/PD3.0/PD3.1 and synchronous buck boost converters, with a charging and discharging power of up to 45W;
    IP2369 supports 2/3/4/5/6 series connected battery cells, and the number of series connected battery cells can be selected through external resistor settings; IP2369 supports external resistors and can set battery types, with a full charge voltage of 3.65V/4.1V/4.2V/4.35V/4.4V.
    IP2369 has a built-in IC temperature, battery NTC temperature, and input voltage control detection loop, which can intelligently adjust the charging current based on the recognized charger power.
    IP2369 standby power consumption can be as low as no more than 100uA.
    IP2369 has a built-in 14 bit ADC, which can accurately measure input voltage and current, battery voltage and current, etc. IP2369 charging and discharging voltage, charging current and other information can be obtained through I2C.
    IP2369 supports 4 battery indicator lights, which can display battery level and charging/discharging status.

IP2369 Features:
* Charging and discharging specifications
  -Built in BUCK-BOOST buck boost power NMOS
  -The maximum charging and discharging power is 45W
  -Adaptive charging current regulation
  -The external resistor can be set to the battery type, with a full charge voltage of 3.65V/4.1V/4.2V/4.3V/4.35V/4.4V
  -External resistor setting: Number of battery series connections: 2/3/4/5/6
  -The external resistor can set the maximum charging and discharging power, supporting a maximum of 45W charging and discharging
* Simultaneously supporting 2 USB ports
  -1 USB-A port output
  -1 USB-C port input/output
* Fast charging specifications
  -Integrated FCP Input/Output Fast Charging Protocol
  -Integrated AFC Input/Output Fast Charging Protocol
  -Integrate DRP Try SRC protocol, PD3.1 input-output fast charging protocol
  -Integrated QC2.0/QC3.0/QC3.0+output fast charging protocol
* Other functions
  -4/2/1 LED power indicator light
  -Supports I2C functionality
  -Standby power consumption of 100 μ A
  -EN wake-up function
* Multiple protection, high reliability
  -Input overvoltage and undervoltage protection
  -Output overcurrent and short circuit protection
  -Battery overcharge, overdischarge, overcurrent protection
  -IC over temperature protection
  -NTC protection for charging and discharging battery temperature
  -ESD 4KV, input (including CC1/CC2 pins) withstand voltage 30V
* Package specification: QFNWB-7 * 7-60L 0.4pitch

IP2369Application Products:
Charging and discharging of 2-6 series lithium batteries/lithium iron phosphate batteries

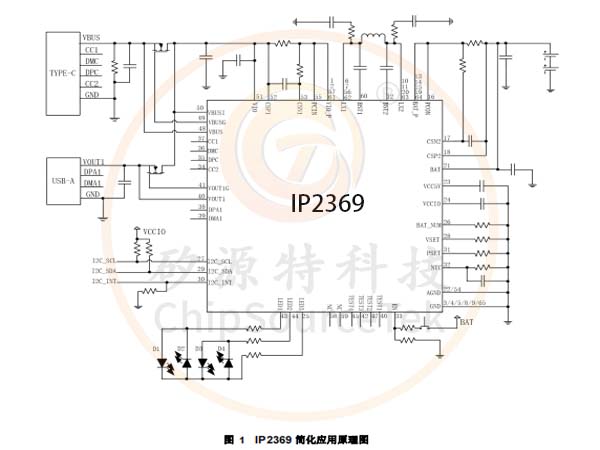

IP2369 Simplified application schematic:

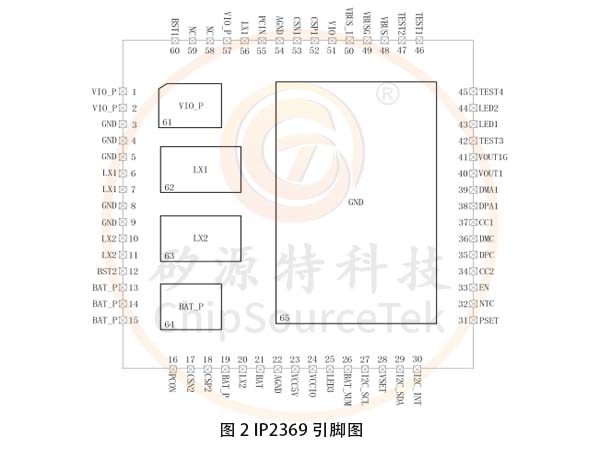

IP2369 Pin definition：

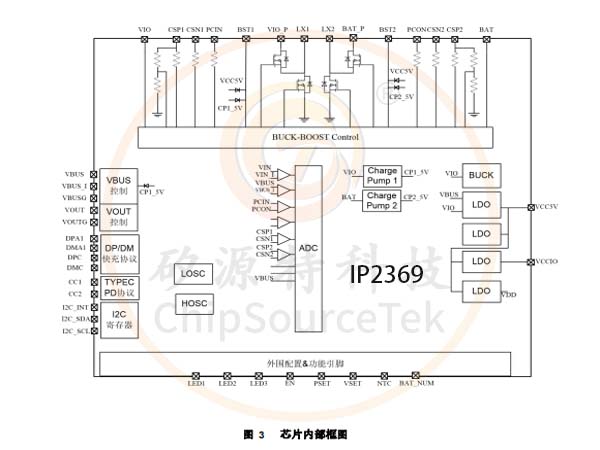

IP2369 Internal block diagram of chip：

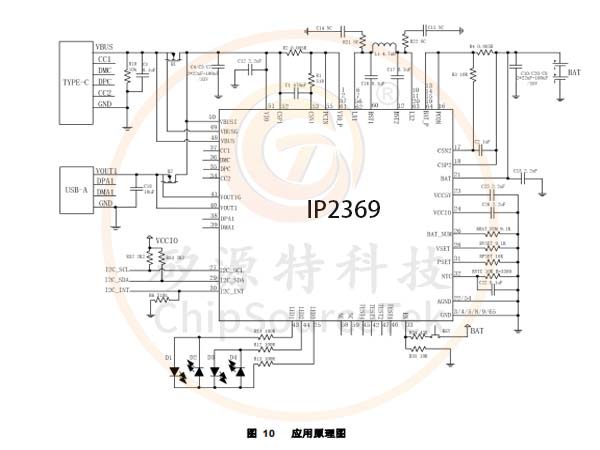

IP2369 Application schematic：
