IP6525T is an integrated synchronous switch step-down converter that supports four output fast charging protocols, providing a complete solution for car chargers, fast charging adapters, and intelligent plug and play.
    IP6525T internal power MOS, with an input voltage range of 9.6V to 32V and an output voltage range of 3V to 12V, can provide a maximum output power of 18W, and can automatically adjust the output voltage and current according to the recognized fast charging protocol. Typical output voltages and currents include 5V@3.4A ,  9V@2.0A ， 12V@1.5A The buck conversion efficiency of IP6525T is as high as 98%.

    The output of IP6525T has CV/CC characteristics. When the output current is less than the set value, it outputs CV mode and the output voltage is constant; When the output current is greater than the set value, CC mode is output and the output voltage decreases.
    The output voltage of IP6525T comes with a wire compensation function. As the output current increases, the output voltage will correspondingly increase to compensate for the voltage drop caused by the impedance of the connecting wire.

    IP6525T has a soft start function, which can prevent the impact current during startup from affecting the stability of the input power supply.
    IP6525T integrated fast charging protocol, which can automatically identify the fast charging protocol supported by the output terminal connected device through DP/DM, and then automatically adjust the output voltage and current. The fast charging protocols supported by IP6525T include DCP (Apple, Samsung, and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Fast Charging Protocol FCP, and Samsung Fast Charging Protocol AFC.
    IP6525T has multiple protection functions, including input overvoltage and undervoltage protection, output overcurrent, overvoltage, undervoltage, short circuit protection, etc.

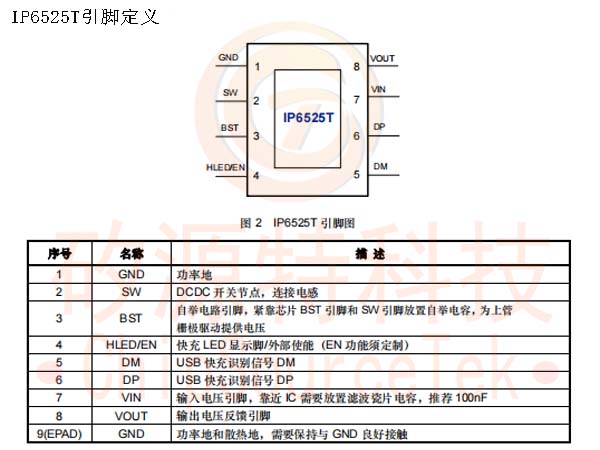

    IP6525T adopts ESOP8 packaging.

    Internal power MOS
    Input voltage range: 9.6V to 32V
    Output voltage range: 3V to 12V, automatically adjusted according to fast charging protocol
    Output power: Maximum 18W（ 5V@3.4A ， 9V@2A ， 12V@1.5A Etc.)
    Output with CV/CC characteristics (output current less than the set value, output      CV mode; output current greater than the set value, output CC mode)
    Conversion efficiency up to 98%
    Soft start function
    Output voltage line compensation function, line compensation voltage 100mV@1A

    Support BC1.2, Apple, Samsung protocols
    Support Qualcomm QC2.0 and QC3.0
    Support Huawei fast charging protocol FCP
    Support Samsung Fast Charge Protocol AFC

    Output overcurrent, input overvoltage, input undervoltage, output short-circuit protection
    Whole machine over temperature protection
    DP/DM overvoltage protection
    ESD 4KV, input DC withstand voltage 40V

Car charger
Fast charging adapter
Intelligent plug and socket
