IP6525S is an integrated synchronous switch step-down converter that supports multiple output fast charging protocols, providing a complete solution for car chargers, fast charging adapters, and intelligent plug and play.
    IP6525S has a built-in power MOS, with an input voltage range of 5.2V to 32V and an output voltage range of 3V to 12V. It can provide a maximum output power of 22.5W and automatically adjust the output voltage and current according to the recognized fast charging protocol. Typical output voltages and currents include 5V/3.4A, 9V/2.0A, and 12V/1.5A.

    IP6525S has an automatic overcurrent point adjustment function. When the SCP and low-voltage fast charging protocol handshake is successful, it supports 5V/4.5A and 4.5V/5A.
    The output voltage of IP6525S comes with a wire compensation function. As the output current increases, the output voltage will correspondingly increase to compensate for the voltage drop caused by the impedance of the connecting wire.
    IP6525S has a soft start function, which can prevent the impact current during startup from affecting the stability of the input power supply.

    IP6525S integrates fast charging protocol, which can automatically identify the fast charging protocol supported by the output terminal connected device through DP/DM, and then automatically adjust the output voltage and current. The fast charging protocols supported by IP6525S include DCP (Apple and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Fast Charging Protocol FCP, Samsung Fast Charging Protocol AFC (MAX 12V), MTK Fast Charging Protocol, Spreadtrum Fast Charging Protocol SFCP, and OPPO Fast Charging Protocol VOOC.
    IP6525S has multiple protection functions, including input overvoltage and undervoltage protection, output overcurrent, overvoltage, undervoltage, short circuit protection, etc
    IP6525S adopts ESOP8 packaging.

    Built in power MOS
    Input voltage range: 5.2V to 32V
    Output voltage range: 3V to 12V, automatically adjusted according to fast charging protocol
    QC output power: maximum 18W (5V/3.4A, 9V/2A, 12V/1.5A)
    SCP maximum output power: 22.5W maximum
    Output with CV/CP/CC characteristics
    VIN=24V, VOUT=5V/3A, board end conversion efficiency of 94.2%
    Soft start function
    Output voltage line compensation function, line compensation voltage 50mV@1A

    Support BC1.2 Apple
    Support Qualcomm QC2.0 and QC3.0
    Support Huawei fast charging protocol FCP and SCP
    Support Samsung Fast Charge Protocol AFC (MAX 12V)
    Support MTK PE+1.1 and MTK PE+2.0
    Support Spreadtrum Fast Charging Protocol (SFCP)
    Support OPPO fast charging protocol VOOC

    Output overcurrent, input overvoltage, input undervoltage, output short-circuit protection
    Whole machine over temperature protection
    DP/DM overvoltage protection
    ESD 4KV, input DC withstand voltage 40V

Car charger
Fast charging adapter
Intelligent plug and socket

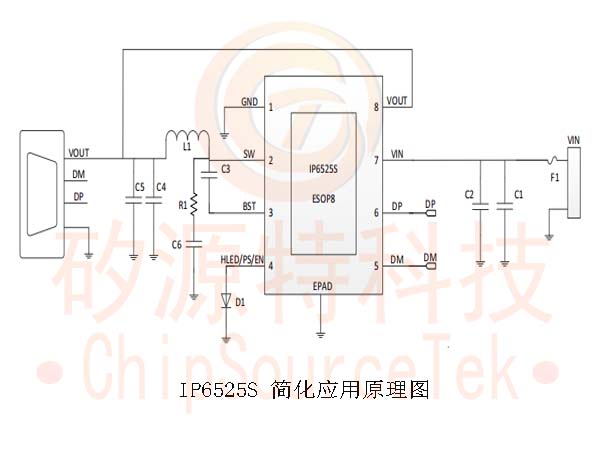

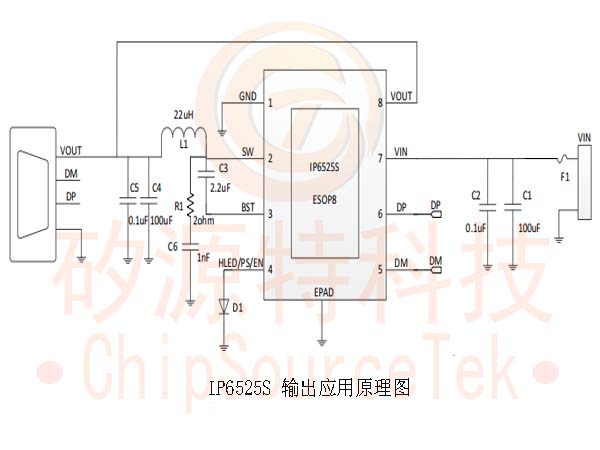

explain:
1. The EPAD of IP6525S must have good contact with the GND of the PCB board.
If HLED indicator light is not needed, PIN4 cannot be connected anywhere and can be suspended.
3. C1 and C2 should be placed near PIN7;
4. C5 should be placed near PIN8;
5. The RC circuit composed of R1 and C6 should be placed near PIN2, and the loop formed by the SW and GND of the RC circuit and IC should have the smallest area on the PCB;
