IP6538 is a dual port SOC IC that integrates synchronous switches, supports 14 output fast charging protocols, Type-C output, and USB PD2.0/PD3.0 (PPS) protocol. It provides a complete solution for car chargers, fast charging adapters, and smart plugs.
    IP6538 supports dual USB Type-C, USB Type-C and USB A, or dual USB A output, with integrated dual port automatic plug and unplug detection function. When used separately, either port can support fast charging output. When both ports are used simultaneously, both ports output 5V, with a total power of 5V/4.8A.

    IP6538 has a built-in power MOS, with an input voltage range of 8.2V to 32V and an output voltage range of 3V to 20V. It can provide a maximum output power of 45W and automatically adjust the output voltage and current according to the recognized fast charging protocol. IP6538 outputs 5V/3A, with a board end conversion efficiency of up to 96.5%.
    The output of IP6538 has CV/CC characteristics. When the output current is less than the set value, CV mode is output and the output voltage is constant; When the output current is greater than the set value, CC mode is output and the output voltage decreases.

    The output voltage of IP6538 comes with a wired compensation function. As the output current increases, the output voltage will correspondingly increase to compensate for the voltage drop caused by the impedance of the connection line.
    IP6538 has a soft start function, which can prevent the impact current during startup from affecting the stability of the input power supply.

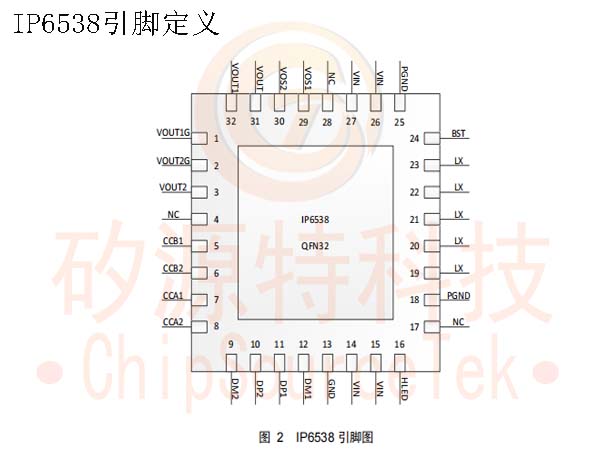

    IP6538 has multiple protection functions, including input overvoltage and undervoltage protection, output overcurrent, overvoltage, undervoltage, short circuit protection, etc. IP6538 is packaged in a 5 * 5mm QFN32.

  Built in power MOS
  Input working voltage range: 8.2V to 32V
  Output voltage range: 3V to 20V, automatically adjusted according to fast charging protocol
  Output voltage wired compensation function, 50mV/A
  Output with CV/CC characteristics (output current less than the set value, output      CV mode; output current greater than the set value, output CC mode)
  VIN=12V, VOUT=5V/3A, board end conversion efficiency of 96.5%

  Supports dual USB Type-C output

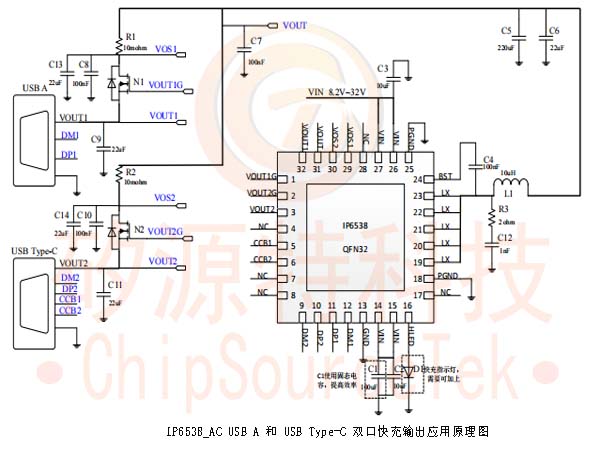

  Supports USB Type-C and USB A output

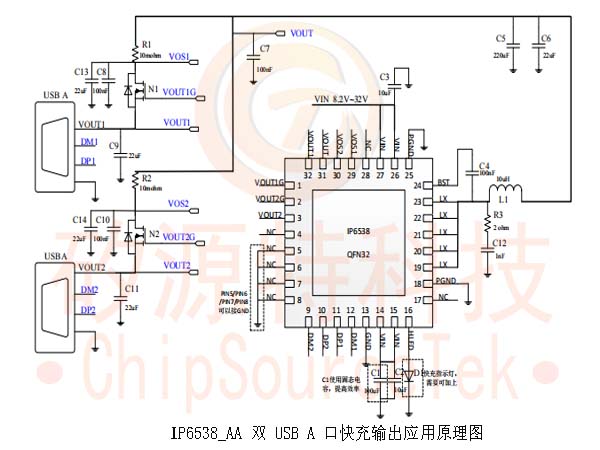

  Supports dual USB A output
  Any output port supports fast charging
  Dual port automatic insertion and extraction detection function

  Supports 5V, 9V, 12V, 15V, and 20V voltage outputs
  Support PD2.0/PD3.0 (PPS) output protocol
  PPS supports 3.3V~21V, 20mV/step voltage output

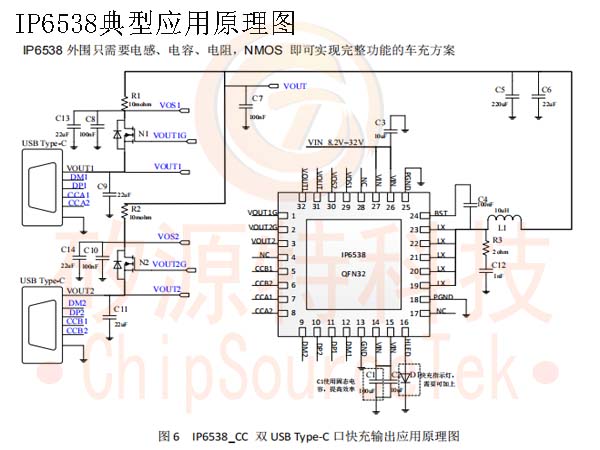

  Supports 2 Type-C PD port outputs
  Supports 2 BC1.2, Apple, Samsung protocols
  Supports 2 Qualcomm QC2.0 and QC3.0
  Support 2 MTK PE+1.1 and MTK PE+2.0
  Supports 2 Huawei fast charging protocols FCP
  Supports 2 Huawei fast charging protocol SCPs
  Supports 2 Samsung fast charging protocol AFC
  Support 2 Spreadtrum Fast Charging Protocol SFCP
  Supports 2 OPPO fast charging protocols VOOC

  Input overvoltage, input undervoltage, output short circuit, output overcurrent protection, and over temperature protection
  DP/DM/CC overvoltage protection
  DP/DM/CC PIN withstand voltage 30V
  ESD 4KV, DC withstand voltage 40V

Car charger
Fast charging adapter
Intelligent plug and socket
