ChipSourceTek-CST6116A Overview

    ChipSourceTek's CST6116A is like a skillful dancer proficient in single-channel brushed DC motor drive, with its excellent skills, dancing in the electronic world. Its low on-resistance, like a light posture, the high side and the low side dance harmonically, the total resistance is only 400mΩ, easily across the 1.5A continuous output current threshold, but also in an instant burst out 2.1A peak current, showing extraordinary power.

    The built-in full-bridge drive power MOS, like its strong limbs, flexibly and freely achieve the full function of forward, backward, stop and brake, at the same time, the over-temperature protection circuit, like a careful guardian, silently guarding the safety of the dancers, to ensure that every performance is foolproof.

    The full bridge drive architecture and unique drive mode, like clever orchestration, not only simplifies the peripheral filter circuit, reduces the cost, but also makes the application easy and convenient. The thermal protection function with hysteresis effect is the embodiment of the dancer's wisdom, even under extreme conditions, it can remain calm, and the static power consumption of the circuit is as low as 1uA, just like the weakest star in the quiet night sky.

    The ChipSourceTek-CST6116A also has a set of PWM (INA-INB) inputs that act like a dancer's baton to lead the change of rhythm. The SOT23-6 package is small and delicate, like the decoration on the dancer, which is both beautiful and practical.

Feature focus:

    - Single channel built-in MOS full bridge drive circuit, like the dancer's heart, to provide continuous power for every dance.

    - Wide operating voltage range, from 2V to 6V, as dancers can adapt to various stages, showing different styles.

    - Low standby current, only 0.1uA, like a dancer in the quiet, ready to shine。

    - The four functions of turning, reversing, stopping and braking, like the four steps of dancers, are ever-changing and wonderful.

    - No need for a large peripheral filter capacitor, just a small patch capacitor, like a dancer simple and elegant dress.

    - Built-in overheating protection circuit (TSD) with hysteresis effect, like the dancer's protection god, to ensure that every performance is safe and worse-free.

    Products are widely used, whether it is DC brush motor drive, or toy cars, aircraft motor drive, and even electric toothbrushes, CST6116A can be easily controlled, like a versatile dancer, can show its unique charm in various fields.

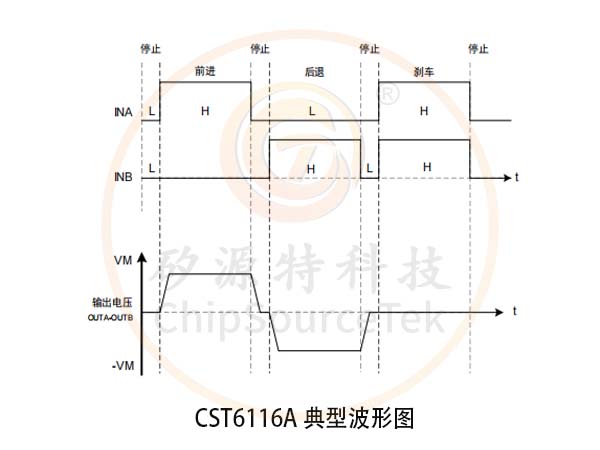

    Pin diagram and description, functional block diagram, typical waveform diagram and typical application circuit, like a dancer's stage scenery, detailed and vivid, for each audience to present every wonderful moment of ChipSourceTek-CST6116A. Every wonderful moment of ChipSourceTek-CST6116A is presented.
