CS8575S
CS8575S is a dual bridge audio power amplifier chip with AB/D switching, powered by a 5.0V power supply.
The CS8575S dual channel audio power amplifier is designed for systems that require high-quality audio power output.
The CS8575S adopts a dual channel design, which enables the chip to have two working modes: bridge connected speaker amplification and single terminal stereo headphone amplification.
CS8575S is equipped with a low-power standby circuit and an overheat protection circuit.
CS8575S provides the packaging form of SOP16L, with a rated operating temperature range of -40°C to 85°C.
The CS8575S dual channel audio power amplifier is designed for systems that require high-quality audio power output.
The CS8575S adopts a dual channel design, which enables the chip to have two working modes: bridge connected speaker amplification and single terminal stereo headphone amplification.
CS8575S is equipped with a low-power standby circuit and an overheat protection circuit.
CS8575S provides the packaging form of SOP16L, with a rated operating temperature range of -40°C to 85°C.
CS8575S Description:
CS8575S is a dual bridge audio power amplifier chip with AB/D switching, powered by a 5.0V power supply; When THD+N is equal to 10%, it can provide 3.1W of continuous power for a 4Ω load. In addition. When connected to stereo headphones, the chip can operate in a single ended mode to drive the stereo headphones.
The CS8575S dual channel audio power amplifier is designed for systems that require high-quality audio power output. It uses surface mount technology and only requires a small number of peripheral devices to provide the system with high-quality audio output power.
The CS8575S adopts a dual channel design, which enables the chip to have two working modes: bridge connected speaker amplification and single terminal stereo headphone amplification, simplifying the peripheral circuit design of the audio system.
CS8575S is equipped with a low-power standby circuit and an overheat protection circuit. It also has a built-in noise cancellation circuit. It can eliminate the clicking or popping sound during the startup and shutdown process of the chip.
CS8575S provides the packaging form of SOP16L, with a rated operating temperature range of -40°C to 85°C.
CS8575S Features：
Output power per channel (Class D mode)
Po at 10% THD+N, VDD=5V
RL=8Ω 1.60W(Per channel)
RL=4Ω 3.20W(Per channel)
Po at 10% THD+N, VDD=3.6V
RL= 8Ω 0.90W(Per channel)
RL=4Ω 1.70W(Per channel)
Output power per channel (Class AB mode)
Po at 10% THD+N, VDD=5V
RL= 8Ω 1.40W(Per channel)
RL= 4Ω 2.80W(Per channel)
Po at 10% THD+N, VDD=3.6V
RL= 8Ω 0.80W(Per channel)
RL=4Ω 1.50W(Per channel)
Working voltage range: 2.7V to 5.5V
Suppression circuit for "clicking and popping sound"
SE mode, RL=32Ω, output average power of 75MW, THD(max)<0.1%
Low turn off current (<0.1μA)
Overcurrent protection, short circuit protection, and thermal protection
RoHS compliant lead-free packaging
CS8575S Applications:
LCD-TV
Notebook computer Digital photo frame USB interface speaker
CS8575S Package：
SOP16L

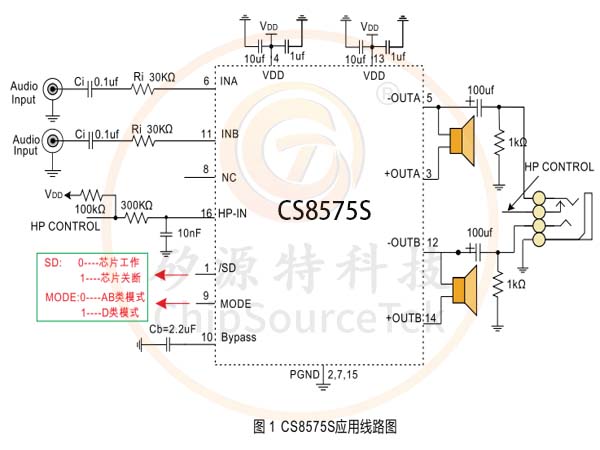

CS8575S Typical application line diagram：

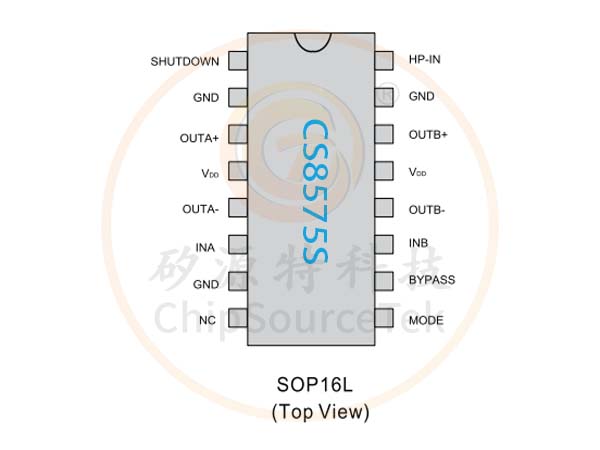

CS8575S Pin arrangement and description：

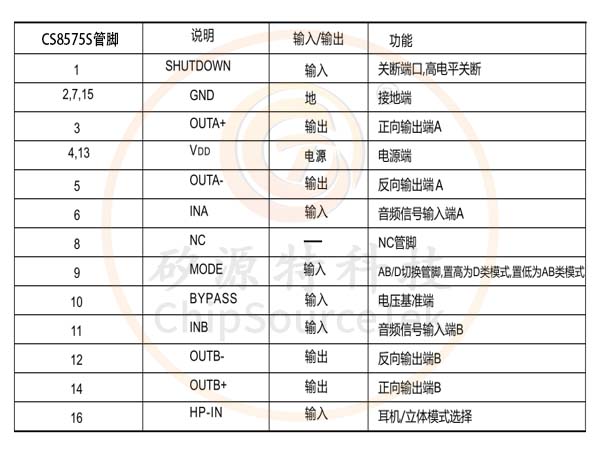

CS8575S Pin description：
CS8575S is a dual bridge audio power amplifier chip with AB/D switching, powered by a 5.0V power supply; When THD+N is equal to 10%, it can provide 3.1W of continuous power for a 4Ω load. In addition. When connected to stereo headphones, the chip can operate in a single ended mode to drive the stereo headphones.
The CS8575S dual channel audio power amplifier is designed for systems that require high-quality audio power output. It uses surface mount technology and only requires a small number of peripheral devices to provide the system with high-quality audio output power.
The CS8575S adopts a dual channel design, which enables the chip to have two working modes: bridge connected speaker amplification and single terminal stereo headphone amplification, simplifying the peripheral circuit design of the audio system.
CS8575S is equipped with a low-power standby circuit and an overheat protection circuit. It also has a built-in noise cancellation circuit. It can eliminate the clicking or popping sound during the startup and shutdown process of the chip.
CS8575S provides the packaging form of SOP16L, with a rated operating temperature range of -40°C to 85°C.
CS8575S Features：
Output power per channel (Class D mode)
Po at 10% THD+N, VDD=5V
RL=8Ω 1.60W(Per channel)
RL=4Ω 3.20W(Per channel)
Po at 10% THD+N, VDD=3.6V
RL= 8Ω 0.90W(Per channel)
RL=4Ω 1.70W(Per channel)
Output power per channel (Class AB mode)
Po at 10% THD+N, VDD=5V
RL= 8Ω 1.40W(Per channel)
RL= 4Ω 2.80W(Per channel)
Po at 10% THD+N, VDD=3.6V
RL= 8Ω 0.80W(Per channel)
RL=4Ω 1.50W(Per channel)
Working voltage range: 2.7V to 5.5V
Suppression circuit for "clicking and popping sound"
SE mode, RL=32Ω, output average power of 75MW, THD(max)<0.1%
Low turn off current (<0.1μA)
Overcurrent protection, short circuit protection, and thermal protection
RoHS compliant lead-free packaging
CS8575S Applications:
LCD-TV
Notebook computer Digital photo frame USB interface speaker
CS8575S Package：
SOP16L
CS8575S Typical application line diagram：
