LTK54102
LTK54102 is a high-power, adaptive boost, stereo, PBTL mono, high-efficiency, unfiltered Class D audio power amplifier suitable for single and dual cell lithium battery boosting.
Under the power supply of a single lithium battery, it can reach 2 × 10W at 4 ohms; Under dual lithium battery power supply, it can reach 2 × 20W (10% THD+N) at 4 ohms.
LTK54102 comes with optional spread spectrum function, which can effectively reduce the impact of switching frequency on EMI.
Three different gain mode controls enable LTK54102 to meet accurate requirements for sound quality.
Under the power supply of a single lithium battery, it can reach 2 × 10W at 4 ohms; Under dual lithium battery power supply, it can reach 2 × 20W (10% THD+N) at 4 ohms.
LTK54102 comes with optional spread spectrum function, which can effectively reduce the impact of switching frequency on EMI.
Three different gain mode controls enable LTK54102 to meet accurate requirements for sound quality.
LTK54102 Description:
LTK54102 is a high-power, adaptive boost, stereo, PBTL mono, high-efficiency, unfiltered Class D audio power amplifier suitable for single and dual cell lithium battery boosting.
Under the power supply of a single lithium battery, it can reach 2×10W at 4 ohms; Under dual lithium battery power supply, it can reach 2×20W (10% THD+N) at 4 ohms.
LTK54102 comes with optional spread spectrum function, which can effectively reduce the impact of switching frequency on EMI.
Three different gain mode controls enable LTK54102 to meet accurate requirements for sound quality.
In addition, the adaptive boost function of LTK54102 boosts the voltage to a lower potential when the audio input is low, and to a higher voltage when the audio amplitude is high, thereby achieving a significant improvement in efficiency.
LTK54102 can set input current limit according to requirements, which can match different power battery and output power requirements.
LTK54102 Features:
Input voltage range: 2.8V- 10V
12A integrated high current asynchronous inductive boost
Suitable for single and double cell lithium battery input boost
Can work in PBTL mode
Ultra low noise floor: 85uV (27.6dB)
Single lithium battery adaptive boost to 9.3V
Dual lithium battery adaptive boost to 12.3V
Output power
at 10% THD+N
– 10W, at VIN =3.7V, RL=4Ω
at 1% THD+N
– 9W, at VIN =3.7V, RL=4Ω
Output Power
at 10% THD+N
– 20W, at VIN =7.4V, RL=4Ω
at 1% THD+N
– 17W, at VIN =7.4V, RL=4Ω
Spread spectrum mode
Optional spread spectrum mode to improve EMI
Turn off current<10uA
Adaptive boost for improving efficiency
Overheating protection function
Environmentally friendly packaging ESSOP-24 that meets ROHS requirements
LTK54102 Applications:
Various Bluetooth speakers, smart speakers
Amplifier and speaker equipment
Various consumer audio products

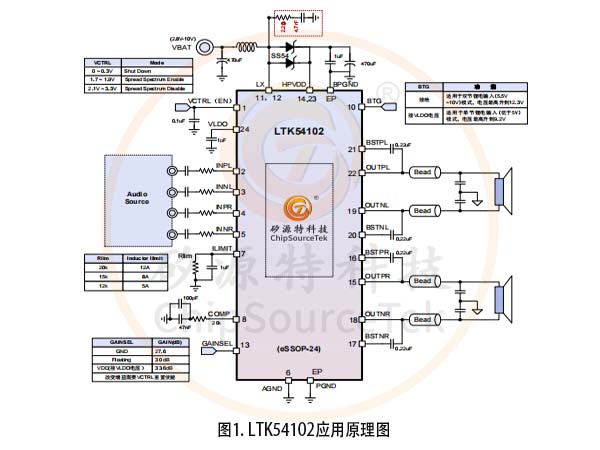

LTK54102 Typical application schematic:

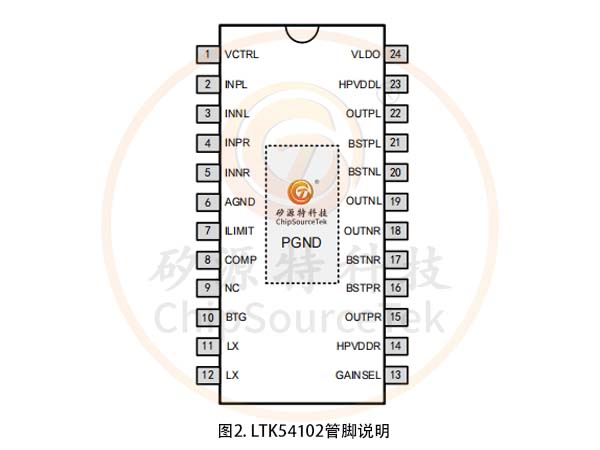

LTK54102 Pin description:

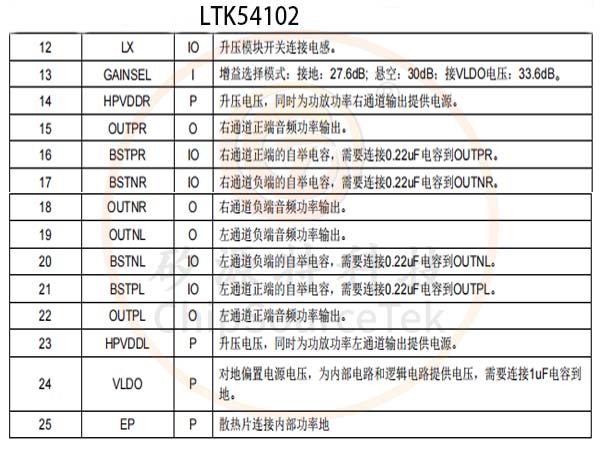

LTK54102 Pin function:
LTK54102 is a high-power, adaptive boost, stereo, PBTL mono, high-efficiency, unfiltered Class D audio power amplifier suitable for single and dual cell lithium battery boosting.
Under the power supply of a single lithium battery, it can reach 2×10W at 4 ohms; Under dual lithium battery power supply, it can reach 2×20W (10% THD+N) at 4 ohms.
LTK54102 comes with optional spread spectrum function, which can effectively reduce the impact of switching frequency on EMI.
Three different gain mode controls enable LTK54102 to meet accurate requirements for sound quality.
In addition, the adaptive boost function of LTK54102 boosts the voltage to a lower potential when the audio input is low, and to a higher voltage when the audio amplitude is high, thereby achieving a significant improvement in efficiency.
LTK54102 can set input current limit according to requirements, which can match different power battery and output power requirements.
LTK54102 Features:
Input voltage range: 2.8V- 10V
12A integrated high current asynchronous inductive boost
Suitable for single and double cell lithium battery input boost
Can work in PBTL mode
Ultra low noise floor: 85uV (27.6dB)
Single lithium battery adaptive boost to 9.3V
Dual lithium battery adaptive boost to 12.3V
Output power
at 10% THD+N
– 10W, at VIN =3.7V, RL=4Ω
at 1% THD+N
– 9W, at VIN =3.7V, RL=4Ω
Output Power
at 10% THD+N
– 20W, at VIN =7.4V, RL=4Ω
at 1% THD+N
– 17W, at VIN =7.4V, RL=4Ω
Spread spectrum mode
Optional spread spectrum mode to improve EMI
Turn off current<10uA
Adaptive boost for improving efficiency
Overheating protection function
Environmentally friendly packaging ESSOP-24 that meets ROHS requirements
LTK54102 Applications:
Various Bluetooth speakers, smart speakers
Amplifier and speaker equipment
Various consumer audio products
LTK54102 Typical application schematic:
LTK54102 Pin description:
LTK54102 Pin function:

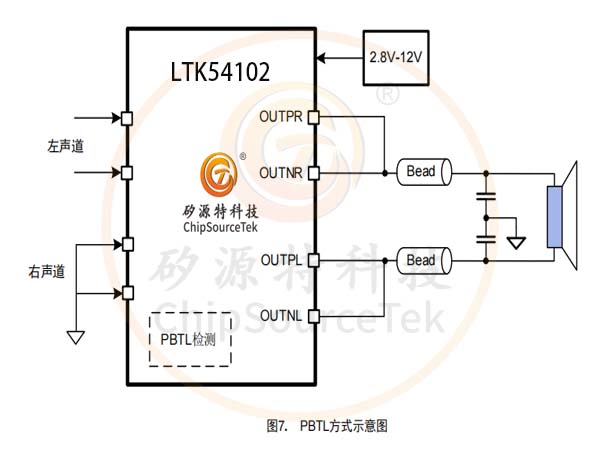

LTK54102 PBTL Method diagram:
