XA9901
XA9901 is a non FM interference, AB/D class optional power amplifier (D class with anti distortion function). At a working voltage of 8.4V, the maximum driving power is 10W (4 Ω, BTL load, THD<10%）， The total harmonic distortion noise within the audio range is less than 1%. The application circuit of XA9901 is simple, requiring only a few peripheral devices and integrating feedback resistors; The output does not require external coupling capacitors, pull-up capacitors, or buffer networks.
XA9901 is packaged in ESOP8, making it particularly suitable for portable systems with high volume and low weight.
XA9901 is packaged in ESOP8, making it particularly suitable for portable systems with high volume and low weight.
XA9901 Function:
XA9901 is a non FM interference, AB/D class optional power amplifier (D class with anti distortion function). At a working voltage of 8.4V, the maximum driving power is 10W (4 Ω, BTL load, THD<10%）， The total harmonic distortion noise within the audio range is less than 1%. The application circuit of XA9901 is simple, requiring only a few peripheral devices and integrating feedback resistors; The output does not require external coupling capacitors, pull-up capacitors, or buffer networks.
XA9901 is packaged in ESOP8, making it particularly suitable for portable systems with high volume and low weight. XA9901 has an internal overheat automatic shutdown protection mechanism; Stable operation, with a gain bandwidth product of up to 2.5MHz and stable unit gain. The feedback resistor is built-in, and the voltage gain and optimal sound quality of the amplifier can be adjusted by configuring peripheral parameters, making it convenient for application. It is the perfect solution for your USB subwoofer and amplifier.
XA9901 Features:
High efficiency, high sound quality, low EMI
High output power of 10W, 2 Ω load, 7.4V (THD+N<10%, 1KHz frequency)
High output power of 10W, 4 Ω load, 8.4V (THD+N<10%, 1KHz frequency):
Adopting ESOP packaging
External gain adjustable, integrated feedback
Wide working voltage range 2.5V-9V
D-class anti distortion sound
No need to drive output coupling capacitors, bootstrap capacitors, and buffer networks
Unit gain stability
XA9901 Applications:
Bluetooth speaker USB 2.1 speaker (multimedia speaker)
Desktop computer
Low voltage audio system, subwoofer

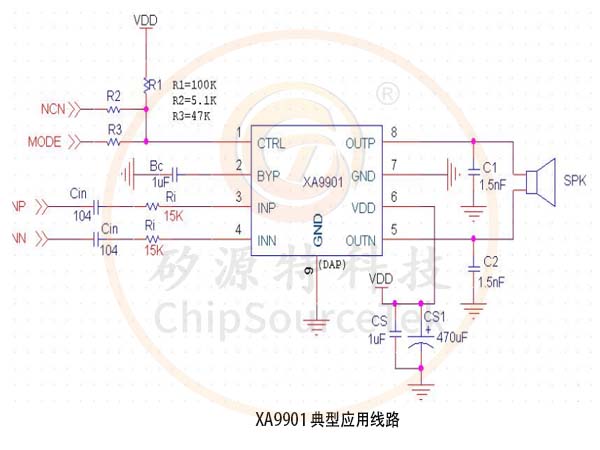

XA9901 Typical Application:

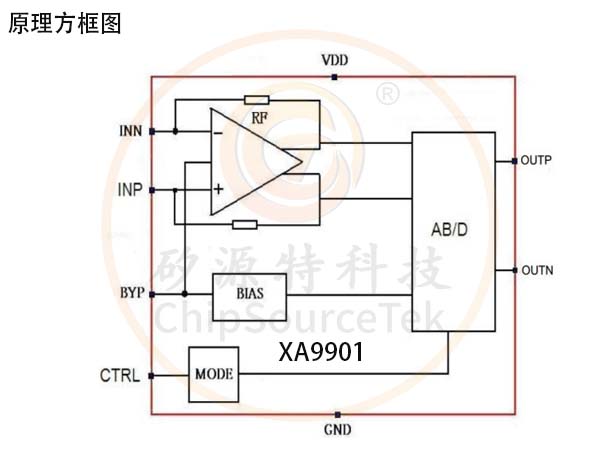

XA9901 Principle Block Diagram:

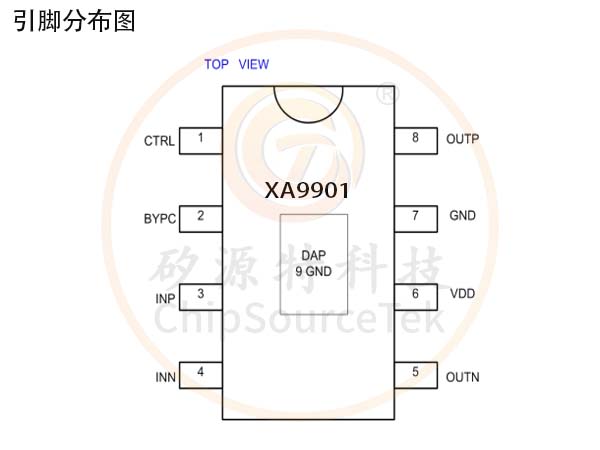

XA9901 Pin distribution diagram:
XA9901 Chip ordering information:
XA9901 is a non FM interference, AB/D class optional power amplifier (D class with anti distortion function). At a working voltage of 8.4V, the maximum driving power is 10W (4 Ω, BTL load, THD<10%）， The total harmonic distortion noise within the audio range is less than 1%. The application circuit of XA9901 is simple, requiring only a few peripheral devices and integrating feedback resistors; The output does not require external coupling capacitors, pull-up capacitors, or buffer networks.
XA9901 is packaged in ESOP8, making it particularly suitable for portable systems with high volume and low weight. XA9901 has an internal overheat automatic shutdown protection mechanism; Stable operation, with a gain bandwidth product of up to 2.5MHz and stable unit gain. The feedback resistor is built-in, and the voltage gain and optimal sound quality of the amplifier can be adjusted by configuring peripheral parameters, making it convenient for application. It is the perfect solution for your USB subwoofer and amplifier.
XA9901 Features:
High efficiency, high sound quality, low EMI
High output power of 10W, 2 Ω load, 7.4V (THD+N<10%, 1KHz frequency)
High output power of 10W, 4 Ω load, 8.4V (THD+N<10%, 1KHz frequency):
Adopting ESOP packaging
External gain adjustable, integrated feedback
Wide working voltage range 2.5V-9V
D-class anti distortion sound
No need to drive output coupling capacitors, bootstrap capacitors, and buffer networks
Unit gain stability
XA9901 Applications:
Bluetooth speaker USB 2.1 speaker (multimedia speaker)
Desktop computer
Low voltage audio system, subwoofer
XA9901 Typical Application:
XA9901 Principle Block Diagram:
XA9901 Pin distribution diagram:
XA9901 Chip ordering information:
| Chip model | Package | Packaging type | Minimum Packaging Quantity (PCS) | Notes |
| XA9901 | ESOP8 | Tube Pack | 100/Tube | Equipped with heat sink |

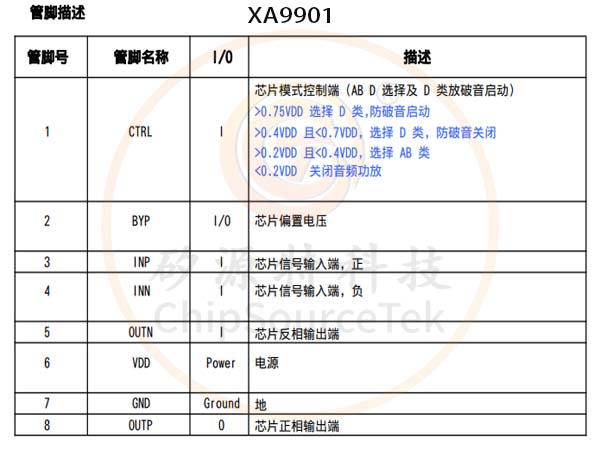

XA9901 Pin description:
