LM4863
The LM4863 comes in two packages: SOP-16 and DIP-16. It can be controlled to enter the off mode, thus reducing power consumption; Internal overheat automatic shutdown protection mode; The operation is stable, and the unit gain is stable; There is also a noise reduction feature.
LM4863 Features:
Power down mode Small leakage current: 2μA(typical)
Output power: 3W(4Ω load, THD+N≤10%)
Power-on noise suppression circuit
Unit gain stabilization
Overheat protection
Headset/stereo mode

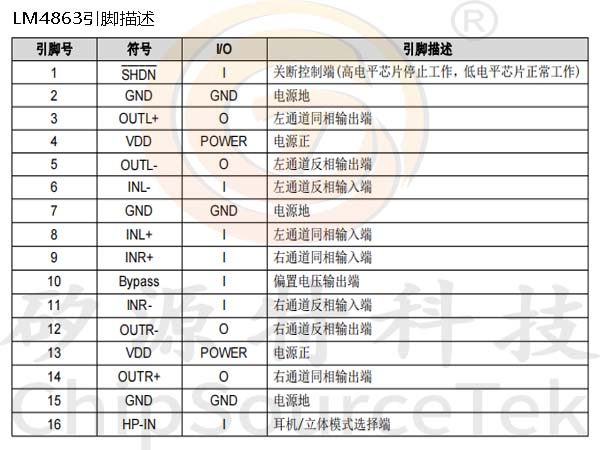

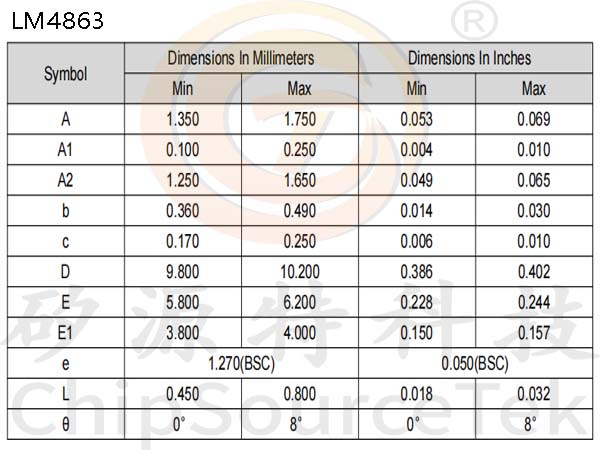

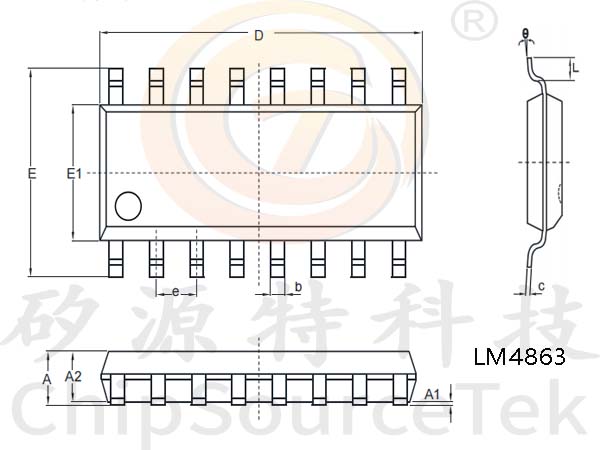

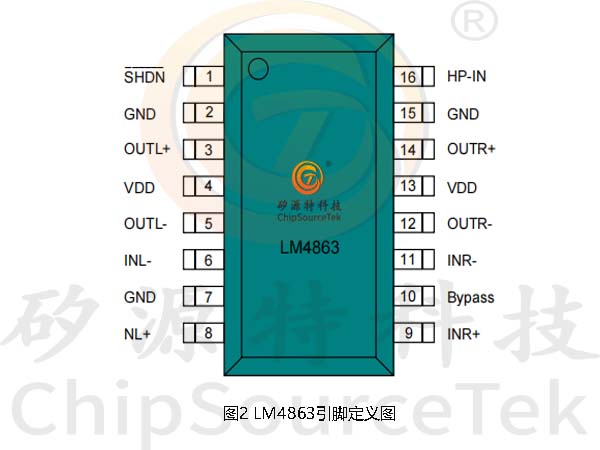

Available in SOP-16 / DIP-16 package
LM4863 Product Use:
Desktop computer
laptop
Multimedia monitor
Portable video equipment
LM4863 Ordering Information:
Product model | encapsulation | package |
LM4863 | SOP-16 | 3000/ disk |
LM4863 | DIP-16 | 25/ tube |

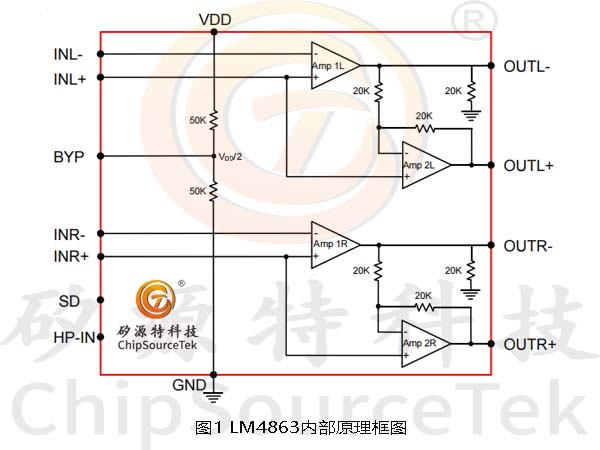

Internal conceptual diagram of the LM4863

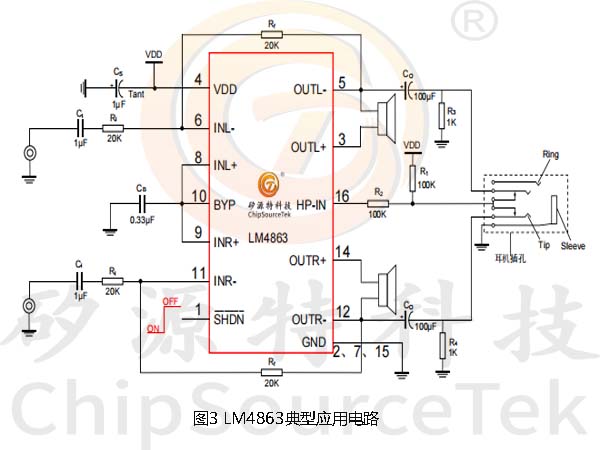

Note: Components are described in the application diagram above
Ri: The input resistance that sets the closed-loop gain with Rf, and also forms a high-pass filter with Ci, and fC = 1/(2πRiCi).
Ci: Input coupling capacitor, mainly used to isolate the DC voltage at the input of the op amp, but also with the input resistance Ri to form a high-pass filter, fC = 1/(2πRiCi).
Rf: Works with Ri to set the feedback resistance of the closed-loop gain.
Cs: Supply the power bypass capacitor of the power filter, refer to the "Application Information" section to set and select the appropriate bypass capacitor.
CB: VDD /2 refers to the filter capacitor of the voltage Bypass pin. Set and select the appropriate bypass capacitor by referring to the "Application Information" section
