D2030
D2030 is a single low-frequency class AB amplifier integrated circuit with a typical output power of 14W(THD=0.5%,VS=±14V,RL=4Ω). When the ±14V dual power supply or 28V single power supply, the output power of 4Ω load can reach 12W, and the output power of 8Ω load can reach 8W.
The D2030 circuit has large output current and low harmonic distortion, and has a variety of protection functions such as load short-circuit protection, overheat protection and safe working area protection, which is especially suitable for assembling high-performance power amplifiers.
The D2030 circuit has large output current and low harmonic distortion, and has a variety of protection functions such as load short-circuit protection, overheat protection and safe working area protection, which is especially suitable for assembling high-performance power amplifiers.
D2030 Description：
D2030 is a single low-frequency class AB amplifier integrated circuit with a typical output power of 14W(THD=0.5%,VS=±14V,RL=4Ω). When the ±14V dual power supply or 28V single power supply, the output power of 4Ω load can reach 12W, and the output power of 8Ω load can reach 8W.
The D2030 circuit has large output current and low harmonic distortion, and has a variety of protection functions such as load short-circuit protection, overheat protection and safe working area protection, which is especially suitable for assembling high-performance power amplifiers.
The D2030 circuit is packaged in TO220B5 package form.
The D2030 circuit has large output current and low harmonic distortion, and has a variety of protection functions such as load short-circuit protection, overheat protection and safe working area protection, which is especially suitable for assembling high-performance power amplifiers.
The D2030 circuit is packaged in TO220B5 package form.
D2030 Features:
High output current (up to 3A)
Harmonic distortion and crossover distortion are small
Built-in short-circuit protection circuit can automatically limit output overload
Built-in overheat protection system
Can be used for single or dual power supply use, or for bridge connection use (typical value 28W)
Harmonic distortion and crossover distortion are small
Built-in short-circuit protection circuit can automatically limit output overload
Built-in overheat protection system
Can be used for single or dual power supply use, or for bridge connection use (typical value 28W)
D2030 Packaging Information:
Model number | Encapsulation form | print | Packing method |
D2030 | TO220B5 | CHMC D2030 SXXXX | 50 PCS/tube |
D2030 Application:
Audio power amplifier equipment

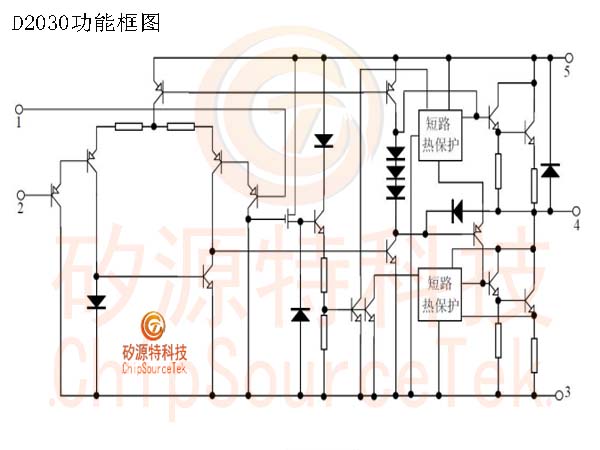

D2030 functional block diagram:

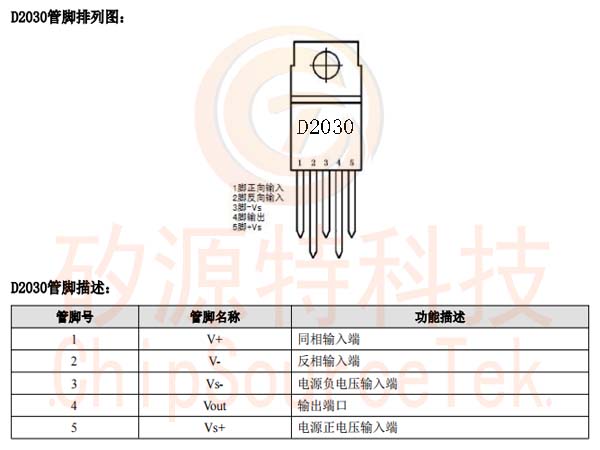

D2030 pin arrangement diagram:

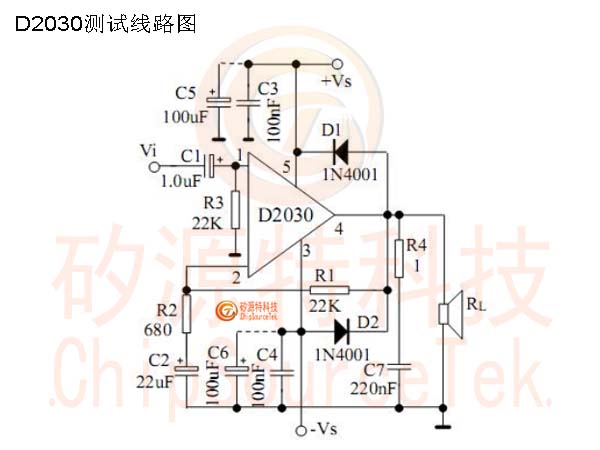

D2030 test circuit diagram:

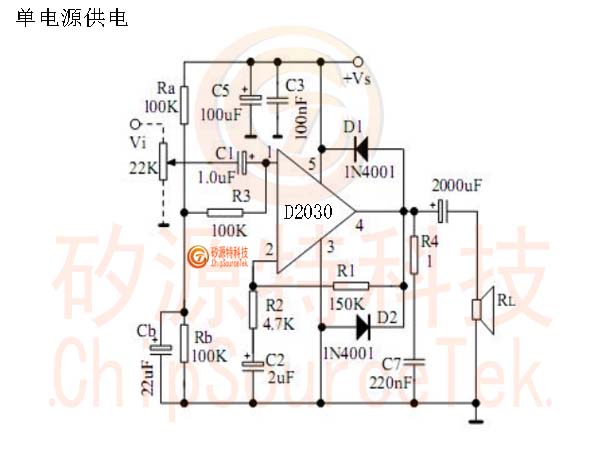

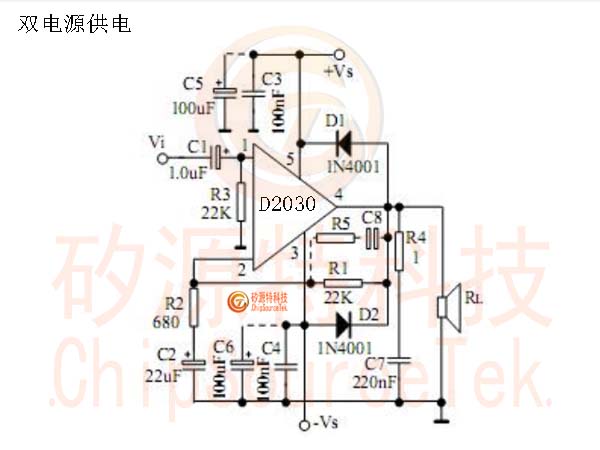

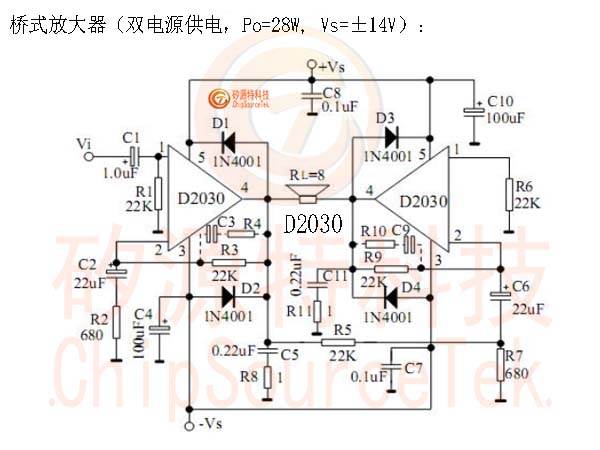

D2030 typical application diagram:
