The HAA9806 is a built-in BOOST module with anti-crack-proof, Class AB/D switchable mono audio power amplifier that provides up to 10W continuous output power for 2Ω loads.
    HAA9806 built-in unique anti-crack function, can automatically adjust the amplifier gain according to the size of the output signal, prevent the output cutting distortion, to achieve a more comfortable hearing experience.
    The HAA9806's fully differential input architecture and extremely high PSRR effectively improve the HAA9806's ability to suppress RF noise.
The HAA9806 has a very low turn-off current, greatly extending the standby time of the system. The OCP, OTP, and UVLO protection functions enhance system reliability. Turning POP-click suppression on and off improves the auditory perception of the system and simplifies system debugging.

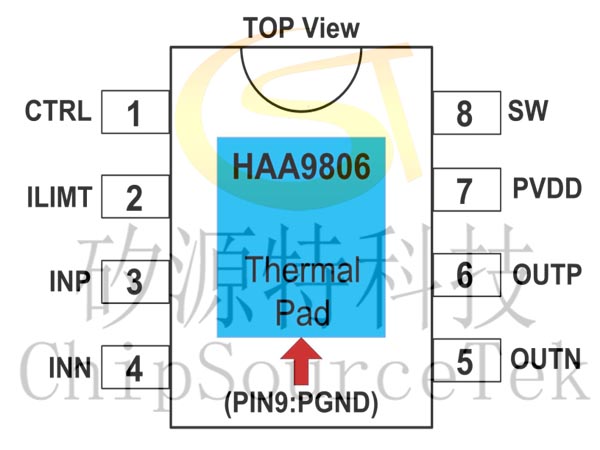

    The HAA9806 is available in an ESOP8 package with heat sink

Class AB and Class D switching function
Band current limiting function
3 kinds of anti-cracking function, compression capacity -10dB
Class D output power:

   －7.0W (VDD=4.2V, RL =4Ω，NCN OFF THD+N=10%)

   －10W (VDD=4.2V, RL =2Ω，NCN OFF THD+N=10%)

Class AB output power:

    -2W (VDD=4.2V, RL =4Ω, booster off THD+N=10%)

Operating voltage: 2.8V to 5.5V
Low distortion and noise
Enable or disable the POP-click suppression function
Turn-off current (<1uA)
OCP, OTP, and UVLO protection functions
The HAA9806 is available in an ESOP8 package with heat sink

megaphone
Portable speaker
Card speaker
Bluetooth speaker
AI speaker
