TC4863SB.TC4863DB,4863VR is a two-bridge audio amplifier IC.
    At 5V operating voltage, the load (4?) Average power on 2.2W or load (3?) The average power is 2.5W, and the distortion does not exceed 1.0%. In addition, when running stereo headset mode, the headset input port allows the amplifier to operate in single-ended mode.
    TC4863SB.TC4863DB,4863VR is an audio amplifier IC designed for high-power, high-fidelity applications. Few peripheral components are required and can work at input voltages from 2.0V to 5.5V.

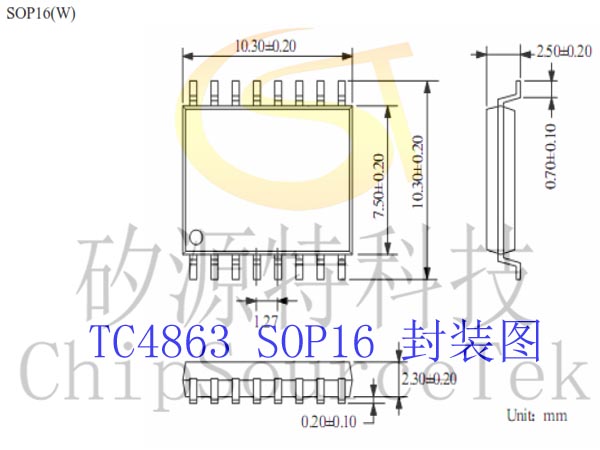

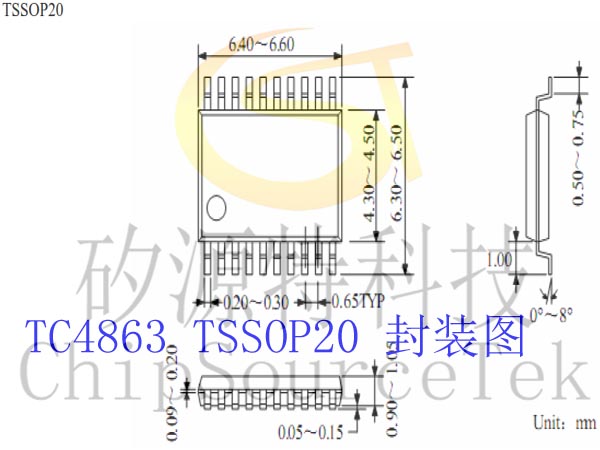

    TC4863SB.TC4863DB.4863VR provides SOP16, SSOP20, DIP16 three packages.

Stereo headset power amplifier mode;
Stable gain output;
Heat off protection circuit;
TC4863DB,4863VR package form: DIP16(4863P), SOP16W(4863M)*, TSSOP20(4863V), TSSOP20-F(4863VR)**
TC4863SB adopts SOP16 wide-body package;

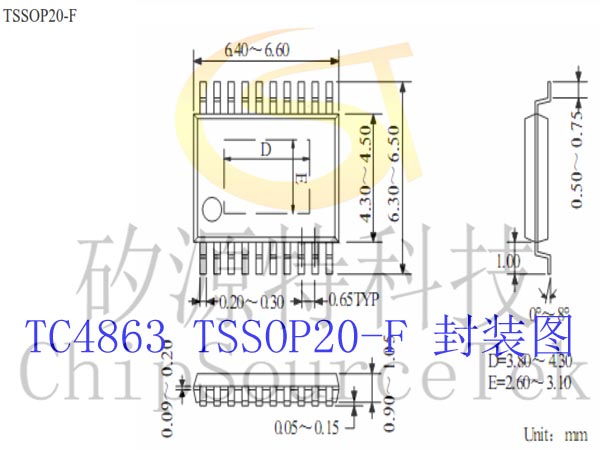

The 4863VR is available in a TSSOP20 package with heat sink
TC4863DB adopts DIP16(4863P)

Multimedia monitor
Portable devices, desktop computers
Portable television
