The AXS2033 is an FM interference free, Class AB/D switchable, high-efficiency, filter-free 3.1W mono audio power amplifier. The ultra-small package is ideal for use in wearable products.

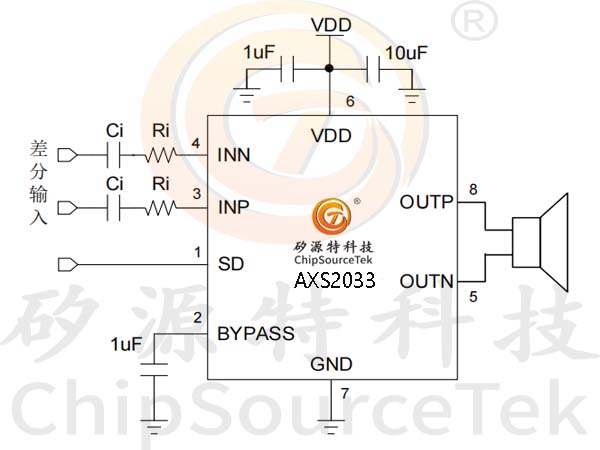

    The AXS2033's differential input architecture and extremely high PSRR effectively improve the AXS2033's ability to suppress RF noise. The filter-free PWM modulation structure and gain built-in approach reduce external components, PCB area and system costs, and simplify design. Up to 90% efficiency, fast start-up time and small package size make the AXS2033 the perfect choice for portable audio products.
    The AXS2033 has an extremely low turn-off current, greatly extending the standby time of the system. The OCP, OTP, and UVLO protection functions enhance system reliability. Turning POP-click suppression on and off improves the auditory perception of the system and simplifies system debugging.

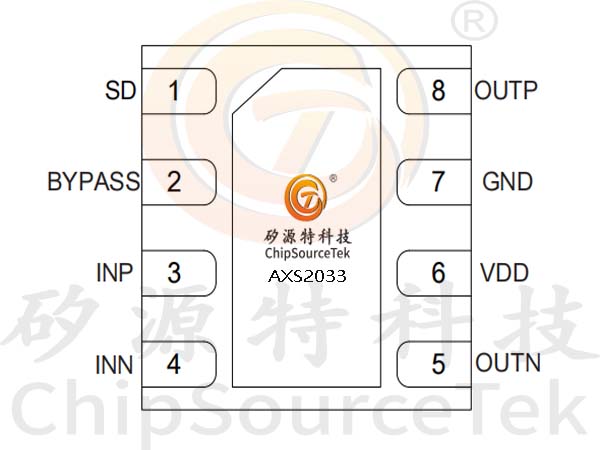

    The AXS2033 is available in a DFN2X2_8L package with heat sink.

Class AB and Class D switching function
Two kinds of anti-break sound can be selected, anti-break sound compression range -10dB
Class D output power:

  －3.1W (VDD=5.0V, RL =4Ω，THD+N=10%)

  －1.8W (VDD=5.0V, RL =8Ω，THD+N=10%)

Class AB output power:

  －3.0W (VDD=5.0V, RL =4Ω，THD+N=10%)

  －1.7W (VDD=5.0V, RL =8Ω，THD+N=10%)

Operating voltage: 2.5V to 5.5V
Low distortion and noise
Enable or disable the POP-click suppression function
Turn-off current (<1uA)
OCP, OTP, and UVLO protection functions

Watch, bracelet
Smart glasses
Bone conduction earphone
