AXS2030
AXS2030 is a high-efficiency, unfiltered 5.2W mono AB/D class audio amplifier. The ultra-low EMI is very suitable for use in portable devices with FM function.
The single ended input architecture and extremely high PSRR of AXS2030 effectively improve its ability to suppress RF noise. The PWM modulation structure without the need for filters and the built-in gain method reduce external components, PCB area, and system costs, and simplify the design. With an efficiency of up to 90%, fast startup time, and slim package size, the AXS2030 is the best choice for portable audio products.
The single ended input architecture and extremely high PSRR of AXS2030 effectively improve its ability to suppress RF noise. The PWM modulation structure without the need for filters and the built-in gain method reduce external components, PCB area, and system costs, and simplify the design. With an efficiency of up to 90%, fast startup time, and slim package size, the AXS2030 is the best choice for portable audio products.
AXS2030 Overview:
AXS2030 is a high-efficiency, unfiltered 5.2W mono AB/D class audio amplifier. The ultra-low EMI is very suitable for use in portable devices with FM function.
The single ended input architecture and extremely high PSRR of AXS2030 effectively improve its ability to suppress RF noise. The PWM modulation structure without the need for filters and the built-in gain method reduce external components, PCB area, and system costs, and simplify the design. With an efficiency of up to 90%, fast startup time, and slim package size, the AXS2030 is the best choice for portable audio products.
The AXS2030 has a shutdown function, which greatly extends the standby time of the system. The overheat protection function enhances the reliability of the system. The POP sound suppression function improves the auditory perception of the system and simplifies system debugging.
The single ended input architecture and extremely high PSRR of AXS2030 effectively improve its ability to suppress RF noise. The PWM modulation structure without the need for filters and the built-in gain method reduce external components, PCB area, and system costs, and simplify the design. With an efficiency of up to 90%, fast startup time, and slim package size, the AXS2030 is the best choice for portable audio products.
The AXS2030 has a shutdown function, which greatly extends the standby time of the system. The overheat protection function enhances the reliability of the system. The POP sound suppression function improves the auditory perception of the system and simplifies system debugging.
AXS2030 Features:
AB/D switching function
D-class output power:
－5.2W (VDD=5.0V, RL =2Ω，THD+N=10%)
AB class output power:
－5.2W (VDD=5.0V, RL =2Ω，THD+N=10%)
Working voltage: 2.5V to 5.5V
Low distortion and low noise
Power on POP sound suppression function
Shutdown current less than 1uA
Overheating protection function
AXS2030 application:
Loudspeaker
Portable speaker/Bluetooth speaker
Card insertion speaker/USB speaker
Portable speaker/Bluetooth speaker
Card insertion speaker/USB speaker
Typical application circuit diagram of AXS2030:
.jpg)

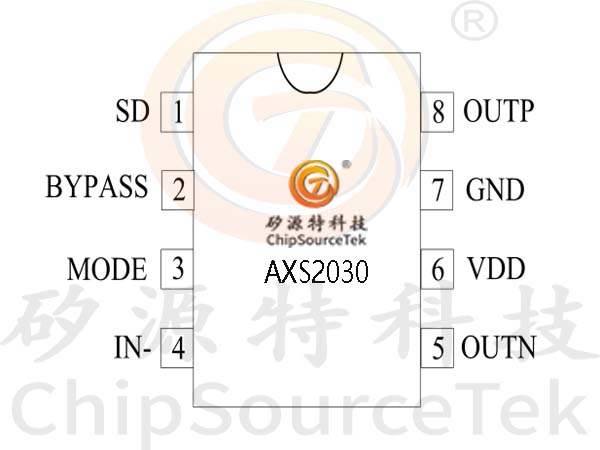

AXS2030 pin arrangement and description:
.jpg)
AXS2030 ordering information:
Item number | encapsulation | Surface printing | package |
AXS2030 | ESOP8 | AXS2030 XXXXXXX XXXX | 4000 pieces/roll |
