AT8031
AT8031 is a single-chip 2.1 channel class D amplifier with three built-in channels of class D amplifier, with more than 90% efficiency, no need to use external heat sink, the peripheral circuit is extremely simple.
AT8031 can support the power supply voltage range of 5V~16V, each channel adopts the output mode of BTL, under the condition of the left and right channel 8 ohm load, the bass channel 4 ohm load, the maximum can provide 2*10W+20W output power, PBTL design can be left and right two small power channels and combine into one channel. Combined with the bass channel to form a 2*20W stereo amplifier.
The AT8031 is available in an e-TSSOP24 package.
AT8031 can support the power supply voltage range of 5V~16V, each channel adopts the output mode of BTL, under the condition of the left and right channel 8 ohm load, the bass channel 4 ohm load, the maximum can provide 2*10W+20W output power, PBTL design can be left and right two small power channels and combine into one channel. Combined with the bass channel to form a 2*20W stereo amplifier.
The AT8031 is available in an e-TSSOP24 package.
AT8031 Description:
T8031 is a single-chip 2.1 channel class D amplifier with three built-in channels of class D amplifier, with more than 90% efficiency, no need to use external heat sink, the peripheral circuit is extremely simple. AT8031 can support the power supply voltage range of 5V~16V, each channel adopts the output mode of BTL, under the condition of the left and right channel 8 ohm load, the bass channel 4 ohm load, the maximum can provide 2*10W+20W output power, PBTL design can be left and right two small power channels and combine into one channel. Combined with the bass channel to form a 2*20W stereo amplifier. The AT8031 is available in an e-TSSOP24 package.
AT8030 Features:
2*10W+20W/2X20W output power
PBTL sets working modes 2.1 and 2.0
Full differential input, BTL output mode
Excellent pop-click noise suppression for power-on and power-off
0.05% distortion degree
90dB signal-to-noise ratio
5V~16V single supply voltage supply
Overcurrent protection.
Overheat protection.
The AT8031 is available in the e-TSSOP24 package
PBTL sets working modes 2.1 and 2.0
Full differential input, BTL output mode
Excellent pop-click noise suppression for power-on and power-off
0.05% distortion degree
90dB signal-to-noise ratio
5V~16V single supply voltage supply
Overcurrent protection.
Overheat protection.
The AT8031 is available in the e-TSSOP24 package
AT8030 Applications:
Multimedia speaker
Soundbar speaker
Wifi, Bluetooth speaker
Soundbar speaker
Wifi, Bluetooth speaker
AT8031 Ordering Information:
| Product model | Encapsulation form | Device identification | Packing method |
| AT8031TT | eTSSOP24 | AT8031 | piping |

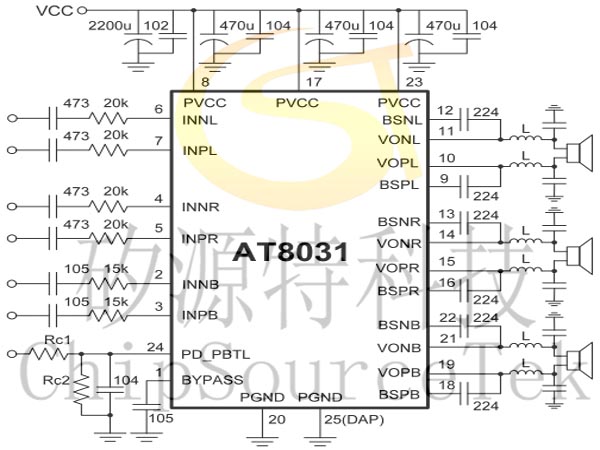

AT8031 Typical application circuit:
AT8031 Pin distribution:
AT8031 pin function description:
| Serial number | symbol | Description |
| 1 | BYPASS | Connect the external 2.2u capacitor to the ground |
| 2 | INNB | Bass channel negative input |
| 3 | NPB | Bass channel forward input |
| 4 | INNR | Right channel negative input |
| 5 | INPR | Right channel forward input |
| 6 | INNL | Left channel negative input |
| 7 | INPL | Left channel forward input |
| 8 | PVCC | Power supply |
| 9 | BSPL | 0.22u capacitance indirect with VOPL pin |
| 10 | VOPL | Left channel forward output |
| 11 | VONL | Left channel negative output |
| 12 | BSNL | 0.22u capacitance indirect with VONL pin |
| 13 | BSNR | 0.22u capacitance indirect with VONR pin |
| 14 | VONR | Right channel negative output |
| 15 | VOPR | Right channel forward output |
| 16 | BSPR | 0.22u capacitance indirect with VOPR pin |
| 17 | PVCC | Power supply |
| 18 | BSPB | 0.22u capacitance indirect with VOPB pin |
| 19 | VOPB | Bass channel forward output |
| 20 | PGND | Power, connected to the heat sink at the bottom of the chip |
| 21 | VONB | Bass channel negative output |
| 22 | BSNB | 0.22u capacitance indirect with VONB pin |
| 23 | PVCC | Power supply |
| 24 | PD | Power down and PBTL control, see the detailed control method below |
| 25 | PGND | dynamically |
AT8031 package diagram:
