The PAM8908 is a 25mW stereo headphone driver is designed for portable equipment where board space is at a premium. The PAM8908 uses a unique, patent pending architecture to produce a ground-referenced output from a single supply,eliminating the need for large DC-blocking capacitors, saving cost, board space, and component height.

    The PAM8908 delivers up to 25mW per channel into a 16 load and has low 0.03% THD+N. A high

power-supply rejection ratio allows this device to operate from noisy digital supplies without an additional linear regulator.

    The PAM8908 operates from a single supply from 2.5V t o 5.5V, has sho rt-ci rcui t a nd over temperature protection. Shutdown mode reduces supply current to less than 1uA.

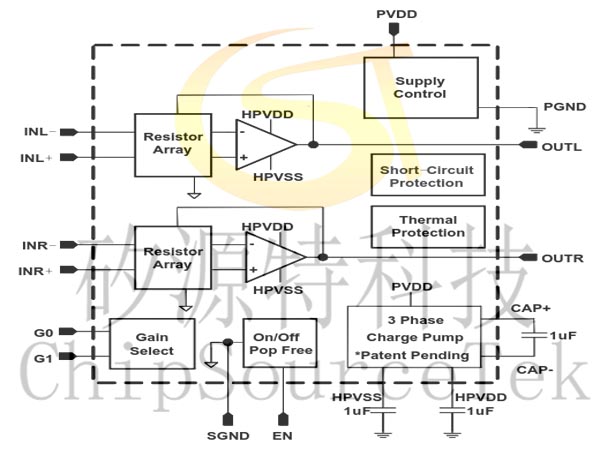

Patent Pending 3 Phase Power Line Shift

Charge Pump Eliminates Need for DCBlocking Capacitors

TrueCapFree Architecture, Output Biased at

0V (System Ground)

Excellent Low Frequency Fidelity

High PSRR

Less Than 1uA Shutdown Current

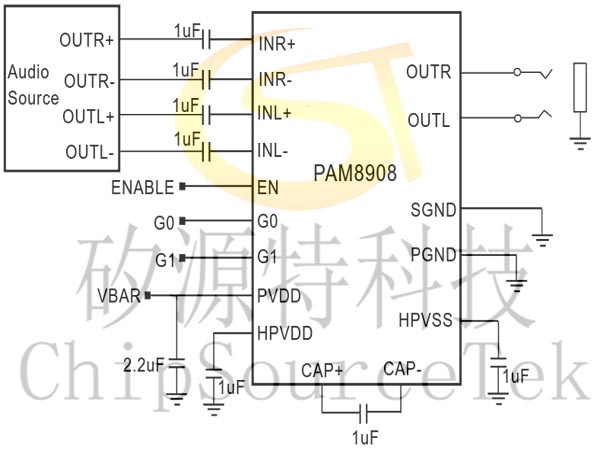

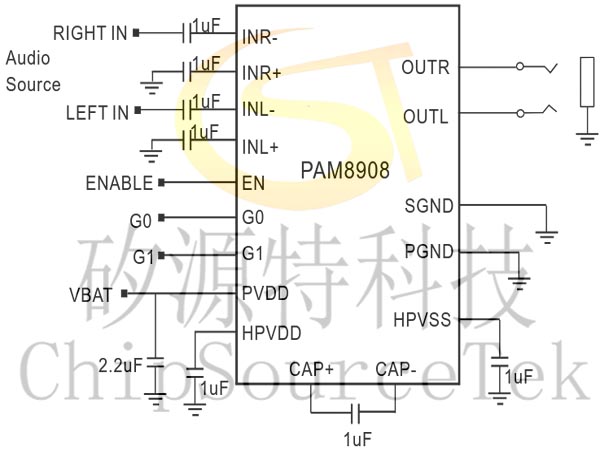

Support Both Fully Differential and SingleEnded Inputs

Short Circuit and Over Temperature

Protection

Selectable Gain Settings:-6dB,0dB,3dB and

6dB

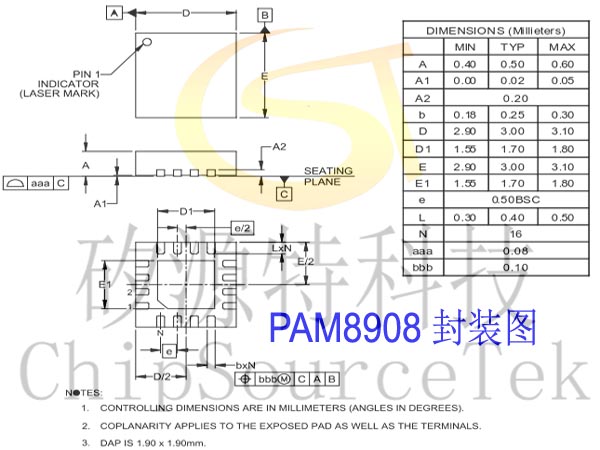

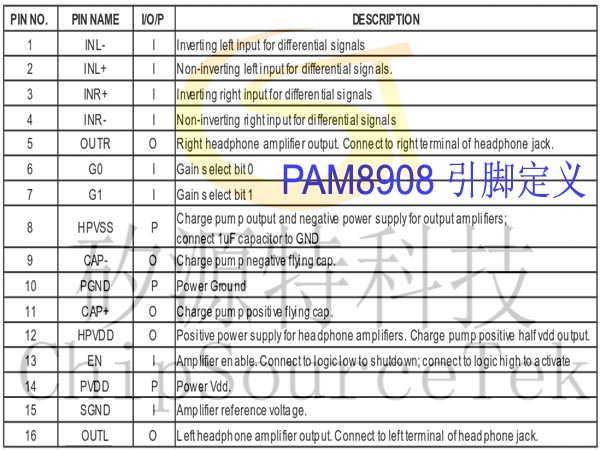

Available in Space Saving Packages:

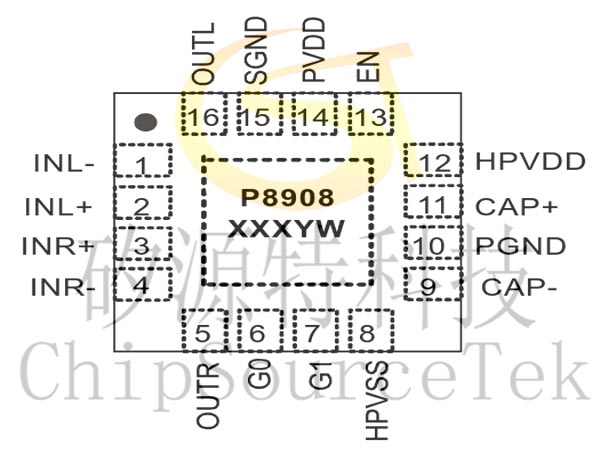

TQFN3x3-16L

Smart Phones/Cellular Phones

Notebook Computers

Portable DVD Player

Personal Digital Assistants (PDAs )

Electronic Dictionaries

Digital Still Cameras

Potable Gaming
