CS8563S
CS8563S is a two-bridge audio power amplifier chip, using 6.0V power supply; At 10% THD+N, it can provide 4.5W continuous power for a 4Ω load. In addition, when connected to the stereo headset, the chip can drive the stereo headset in a single-ended working mode.
The CS8563S dual-channel audio power amplifier is designed for systems that require high quality audio power output. It uses surface mount technology and requires only a small number of peripheral components to provide high quality audio output power.
The CS8563S dual-channel audio power amplifier is designed for systems that require high quality audio power output. It uses surface mount technology and requires only a small number of peripheral components to provide high quality audio output power.
CS8563S Description:
CS8563S is a two-bridge audio power amplifier chip, using 6.0V power supply; At 10% THD+N, it can provide 4.5W continuous power for a 4Ω load. In addition, when connected to the stereo headset, the chip can drive the stereo headset in a single-ended working mode.
The CS8563S dual-channel audio power amplifier is designed for systems that require high quality audio power output. It uses surface mount technology and requires only a small number of peripheral components to provide high quality audio output power.
CS8563S adopts the dual-channel design, which makes the chip have two working modes of bridge connected speaker amplification and single terminal stereo headset amplification, which simplifies the peripheral circuit design of the audio system.
The CS8563S has a built-in low-power standby circuit and overheat protection circuit, as well as a built-in noise cancellation circuit to eliminate the click or pout of the chip during startup and shutdown.
The CS8563S is available in a SOP16L package with a rated operating temperature range of -40 ° C to 85 ° C.
The CS8563S dual-channel audio power amplifier is designed for systems that require high quality audio power output. It uses surface mount technology and requires only a small number of peripheral components to provide high quality audio output power.
CS8563S adopts the dual-channel design, which makes the chip have two working modes of bridge connected speaker amplification and single terminal stereo headset amplification, which simplifies the peripheral circuit design of the audio system.
The CS8563S has a built-in low-power standby circuit and overheat protection circuit, as well as a built-in noise cancellation circuit to eliminate the click or pout of the chip during startup and shutdown.
The CS8563S is available in a SOP16L package with a rated operating temperature range of -40 ° C to 85 ° C.
CS8563S Features:
Output power per channel
PO at 10% THD+N,VDD=6V
RL= 8 Ω 2.30W（per channel）
RL= 4 Ω 4.50W（per channel）
POat 10%THD+N,VDD=5.0V
RL= 8 Ω 1.60W（per channel）
RL= 4 Ω 3.20W（per channel）
POat 10%THD+N,VDD=3.6V
RL= 8 Ω 0.90W（per channel）
RL = 4 Ω 1.70W（per channel）
Operating voltage range: 2.7V to 6.2V
"Clicking and popping" suppression circuit
SE mode, RL=32Ω, average output power 75mW, THD (maxy) <0.1%
Low turn-off current (< 0.1μA)
Overcurrent protection, short circuit protection and thermal protection
SOP16L package form, Rohs compliant lead-free package.
"Clicking and popping" suppression circuit
SE mode, RL=32Ω, average output power 75mW, THD (maxy) <0.1%
Low turn-off current (< 0.1μA)
Overcurrent protection, short circuit protection and thermal protection
SOP16L package form, Rohs compliant lead-free package.
CS8563S Application:
LCD-TV
laptop
Digital photo frame
Speaker with USB interface
Digital photo frame
Speaker with USB interface
CS8563S Ordering Information:
| Product model | Encapsulation form | Packaging type | quantity |
| CS8563S | SOP16L | piping | 50PCS |
| CS8563S | SOP16L | Disk mounting | 2500PCS |

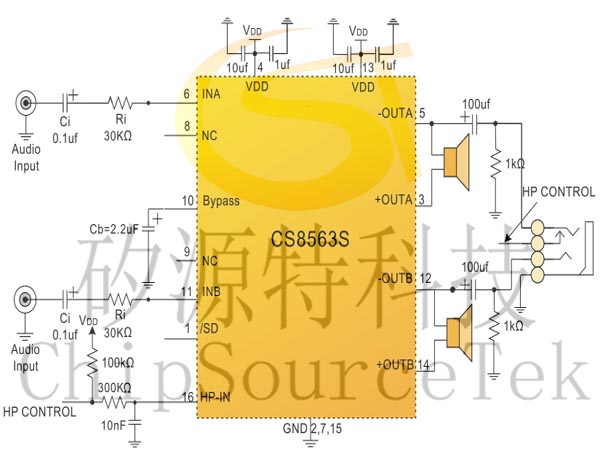

CS8563S Typical application circuit diagram:
CS8563S Pin arrangement:
CS8563S Pin definition:
CS8563S package diagram:
