LTK5131 Description:
    The LTK5131 is a 2 Ω-11W, anti-crack, single-ended input mono Class F audio power amplifier.
    LTK5131 adopts high voltage withstand technology and can withstand up to 7.5V. LTK5131 has a first-line pulse function and only needs to use one IO port. It can control the switching of power amplifier on and off, Class D anti-break mode, Class D ordinary mode and Class AB mode, which can save IO port for users. It can also control the EN and MODE pins respectively, which can be easily switched to each working mode. In Class AB mode, it can solve the interference problem of traditional class D power amplifier on FM, and completely eliminate EMI interference. In the D-amplifier mode, the efficiency can be higher than 90%, and the new filterless structure can eliminate the output low-pass filter of the traditional Class D amplifier.

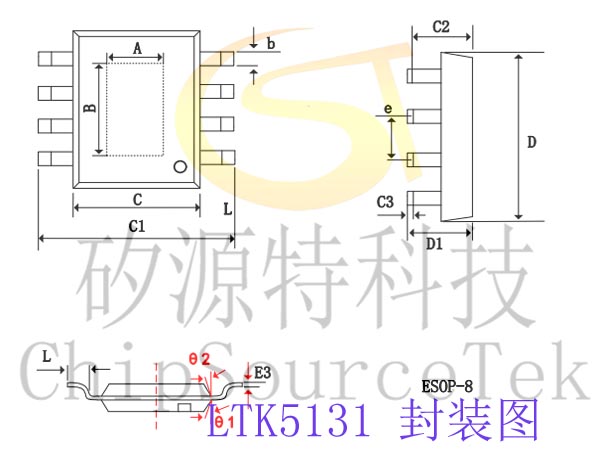

    The LTK5131 comes in an ESOP-8 package.

Input voltage range 2.5V-7.5V
One-line pulse control
2 anti-crackle modes
Unfiltered Class D/Class AB amplifiers, low static current and low EMI
FM mode without interference
Excellent burst suppression circuit
Ultra-low bottom noise, ultra-low distortion
10% THD+N, VDD=7V, delivers up to 11W of output power at 2Ω +15UH loads
10% THD+N, VDD=7V, delivers up to 6.5W of output power at 4Ω +33UH loads
Over temperature protection, short circuit protection
Turn-off current < 1ua
The LTK5131 comes in an ESOP-8 package

Bluetooth speaker, smart speaker
Navigator, portable game console
Pull rod speaker, DVD, amp, MP3, MP4
Smart home and other audio products
